Hot-selling and scarce UPD71054L MOS INTEGRATED CIRCUIT PLCC28 spot stock

Product Descriptions

The uPD71054 is a high-performance programmable timer/counter designed for timing control applications in microcomputer systems. The uPD71054 is fabricated by CMOS technology in order to realize low power consumption.

The uPD71054-10 is the latest and the fastest version, which can be directly configured with top-of-line processors such as the uPD70108-10 and the uPD70116-10.

Product Features

Compatible with uPD70108 (V20TM), uPD70116 (V30TM), uPD70208 (V40TM), & uPD70216 (V50TM)

Three independently-operated 16-bit counters

Six count modes available for each counter

Binary/BDC count operation

Multiple latch command for easy monitoring

Count rate:

0 (DC) to 8 MHz; uPD71054

0 (DC) to 10 MHz; uPD71054-10

CMOS

+5 V single power supply

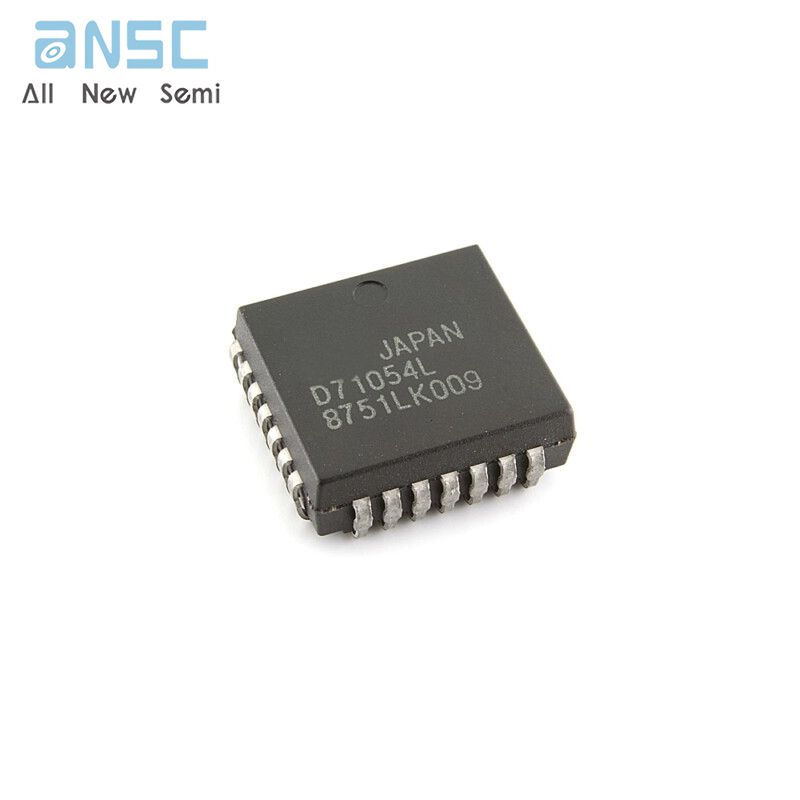

Product Photos

For more product information, please download the PDF
