Hot-selling and scarce DM74ALS09M Quad 2-Input AND Gate with Open Collector Outputs SOP14 spot stock
Manufacturer Product Number
DM74ALS09M
Description
DM74ALS09M Quad 2-Input AND Gate with Open Collector Outputs SOP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
.
This device contains four independent gates, each of which performs the logic AND function. The open-collector outputs require external pull-up resistors for proper logical operation.
Product Features
■ Switching specifications at 50 pF
■ Switching specifications guaranteed over full tempera ture and VCC range
■ Advanced oxide-isolated, ion-implanted Schottky TTL process
■ Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart
■ Improved AC performance over Schottky and low power Schottky counterparts
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DM74ALS09M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ALS |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Open Collector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | -, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 54ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74ALS09 |

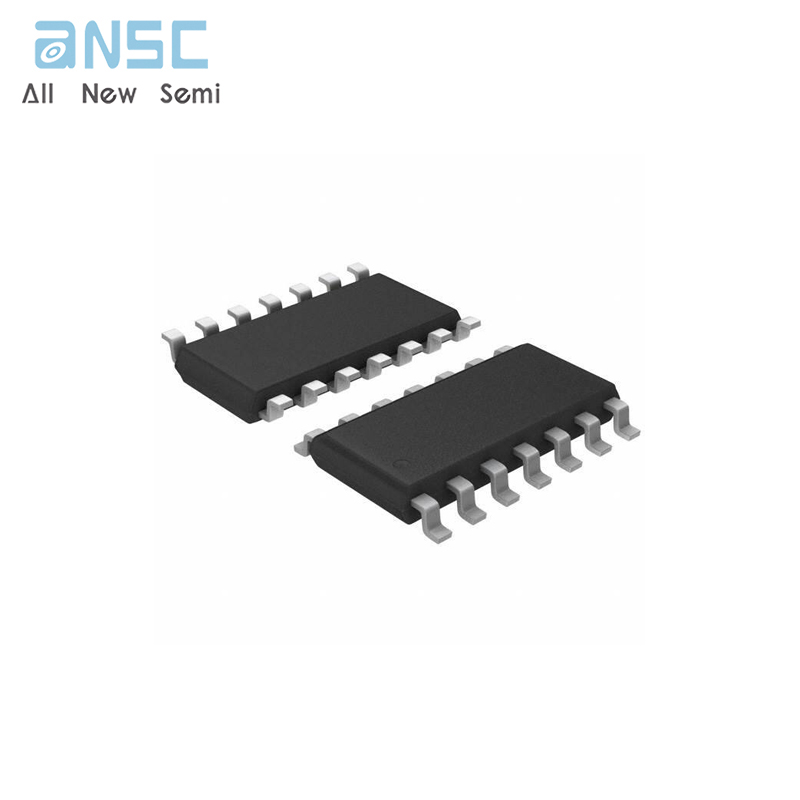

Product Photos
