Hot-selling and scarce MP28313DS-LF-Z 2A, 16V, 340KHz Synchronous Rectified Step-Down Converter SOP-8

Product Descriptions

The MP28313 is a monolithic synchronous buck regulator. The device integrates 130mΩ MOSFETS that provide 2A continuous load current over a wide operating input voltage of 5V to 16V. Current mode control provides fast transient response and cycle-by-cycle current limit.

An adjustable soft-start prevents inrush current at turn-on. Shutdown mode drops the supply current to 1µA.

This device, available in an 8-pin SOIC package, provides a very compact system solution with minimal reliance on external components.

Product Features

• 2A Output Current

• Wide 5V to 16V Operating Input Range

• Integrated 130mΩ Power MOSFET Switches

• Output Adjustable from 0.923V to 13V

• Up to 93 PERCENT Efficiency

• Programmable Soft-Start

• Stable with Low ESR Ceramic Output Capacitors

• Fixed 340KHz Frequency

• Cycle-by-Cycle Over Current Protection

• Input Under Voltage Lockout

Product Applications

• Distributed Power Systems

• Networking Systems

• FPGA, DSP, ASIC Power Supplies

• Green Electronics/ Appliances

• Notebook Computers

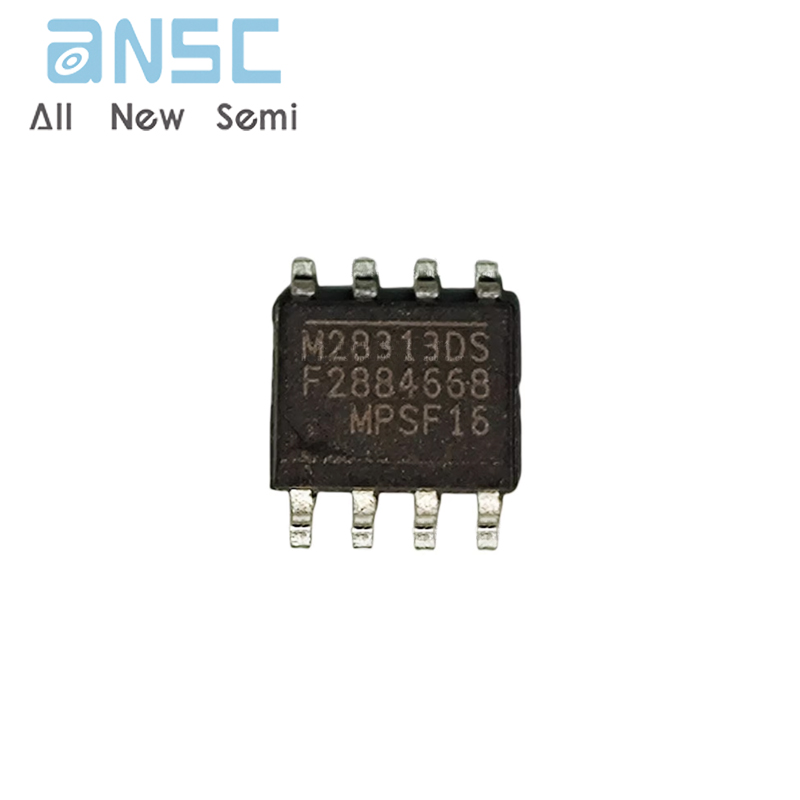

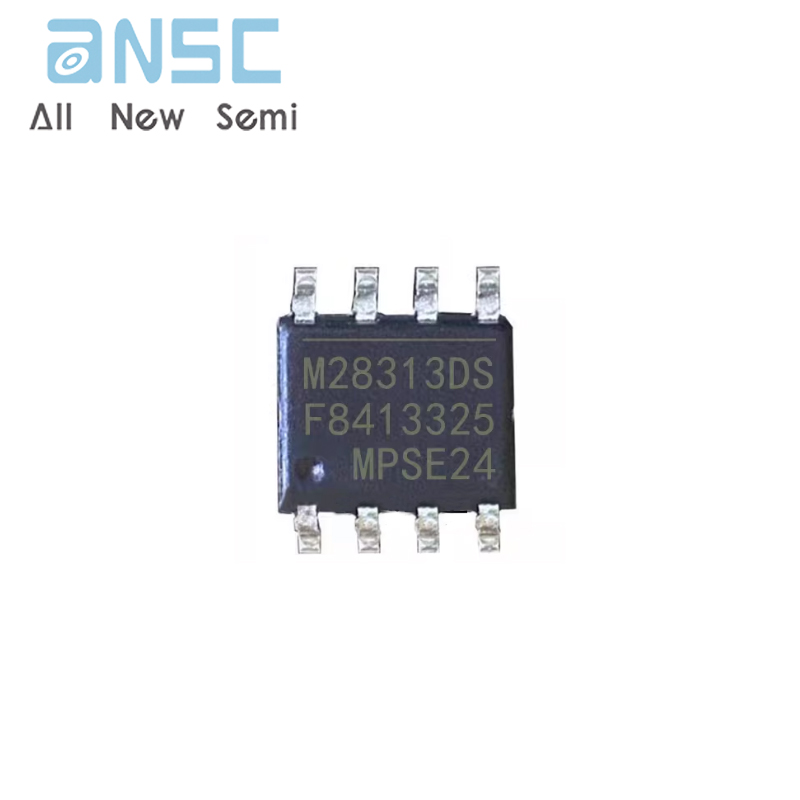

Product Photos

For more product information, please download the PDF
