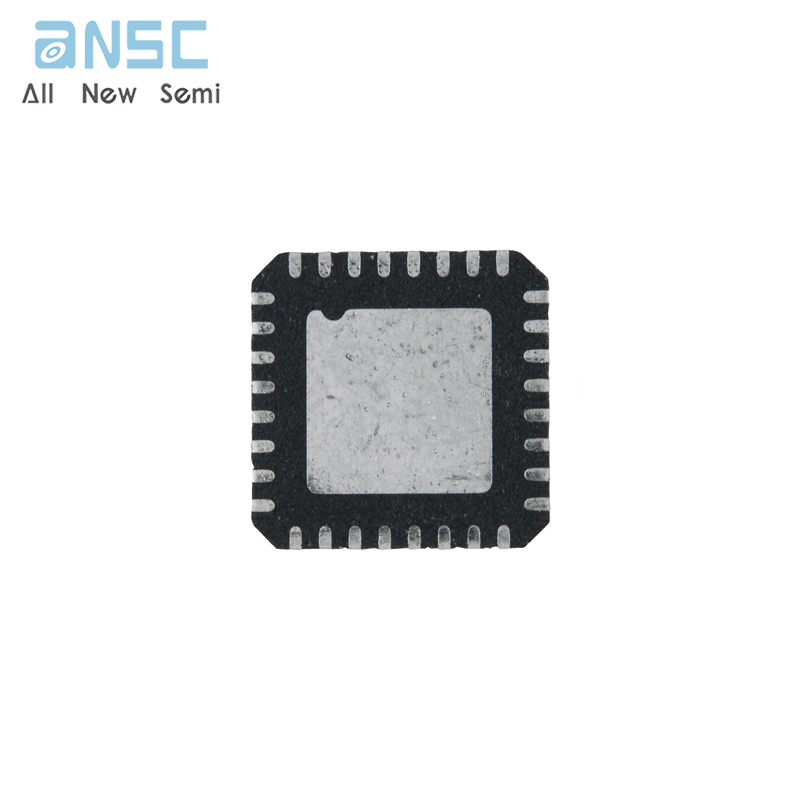

Hot-selling and scarce ADV7180KCP32Z 10-Bit, 4× Oversampling SDTV Video Decoder IC LFCSP32 spot stock

Product Descriptions

The ADV7180 automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard.

The simple digital output interface connects gluelessly to a wide range of MPEG encoders, codecs, mobile video processors, and Analog Devices, Inc., digital video encoders, such as the ADV7391 . External HS, VS, and FIELD signals provide timing references for LCD controllers and other video ASICs, if required.Accurate 10-bit analog-to-digital conversion provides professional quality video performance for consumer applications with true 8-bit data resolution. Three analog video input channels accept standard composite, S-Video, or component video signals, supporting a wide range of consumer video sources.AGC and clamp-restore circuitry allow an input video signal peak-to-peak range to 1.0 V.Alternatively, these can be bypassed for manual settings.

Product Features

► AEC-Q100 qualified for automotive applications

► Worldwide NTSC/PAL/SECAM color demodulation support

►  One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling for  Y/C mode, and 2× oversampling for YPrPb (per channel)

►  3 video input channels with on-chip antialiasing filter

►  CVBS (composite), Y/C (S-Video), and YPrPb (component) video input support

►  5-line adaptive comb filters and CTI/DNR video enhancement

►  Mini-TBC functionality provided by adaptive digital line length tracking (ADLLT), signal processing, and enhanced FIFO management

►  Integrated AGC with adaptive peak white mode

►  Macrovision copy protection detection

►  NTSC/PAL/SECAM autodetection

►  8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS, VS, and FIELD; the 48-Lead LQFP, 40-lead LFCSP, and 32-lead LFCSP use one pin to output VS or FIELD.

►  1.0 V analog input signal range

►  Full-featured VBI data slicer with teletext support (WST)

►  Power-down mode and ultralow sleep mode current

► 2-wire serial MPU interface (I2 C compatible)

►  Single 1.8 V supply possible

►  1.8 V analog, 1.8 V PLL, 1.8 V digital, 1.8 V to 3.3 V I/O supply

►  −10°C to +70°C commercial temperature grade

►  −40°C to +85°C industrial/automotive qualified temperature grade

►  −40°C to +125°C temperature grade for automotive qualified

► 4 package types

►  64-lead, 10 mm × 10 mm, RoHS compliant LQFP

► 48-Lead, 7 mm × 7 mm, RoHS compliant LQFP

► 40-lead, 6 mm × 6 mm, RoHS compliant LFCSP

►  32-lead, 5 mm × 5 mm, RoHS compliant LFCSP

Product Applications

►  Digital camcorders and PDAs

►  Low cost SDTV PIP decoders for digital TVs

►  Multichannel DVRs for video security

► AV receivers and video transcoding

►  PCI-/USB-based video capture and TV tuner cards

►  Personal media players and recorders

►  Smartphone/multimedia handsets

►  In-car/automotive infotainment units

►  Rearview camera/vehicle safety systems

Product Specifications

Product Photos

For more product information, please download the PDF
