Hot-selling and scarce MP2305DS-LF-Z 4.75V to 23V IN, 2A OUT Synchronous Buck Converter SOP-8
Manufacturer Product Number
MP2305DS-LF-Z
Description
MP2305DS-LF-Z 4.75V to 23V IN, 2A OUT Synchronous Buck Converter SOP-8
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The EV2305DS-00A is the evaluation board of MPS’ MP2305 synchronous buck converter. It has a wide supply range from 4.75V to 23V and a continuous output current up to 2A. It features synchronous rectification for high efficiency with integrated high-side and low-side power MOSFETs. The output voltage is preset to 3.3V, but can be easily adjusted to other levels from 0.923V. Current mode control and integrated power MOSFETs minimize component counts, board area, and solution cost. Fault condition protections include cycle-by-cycle current limiting, thermal shutdown and under-voltage lockout. Programmable soft-start reduces turn-on stress. Small SO-8 package minimizes board area.
Product Features
• Up to 2A Output Current
• Wide 4.75V to 23V Operating Input Range
• Monolithic Synchronous Buck with 130mΩ High-Side and Low-Side FETs
• Fixed 340KHz Frequency
• All Ceramic Input and Output Capacitors
• Programmable Soft-Start
• Programmable Input Under Voltage Lockout
Product Applications
• Distributed Power Systems
• Networking Systems
• FPGA, DSP, ASIC Power Supplies
• Green Electronics/ Appliances
• Notebook Computers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2305DS-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 0.923V |
| Voltage - Output (Max) | 20V |
| Current - Output | 2A |
| Frequency - Switching | 340kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MP2305 |

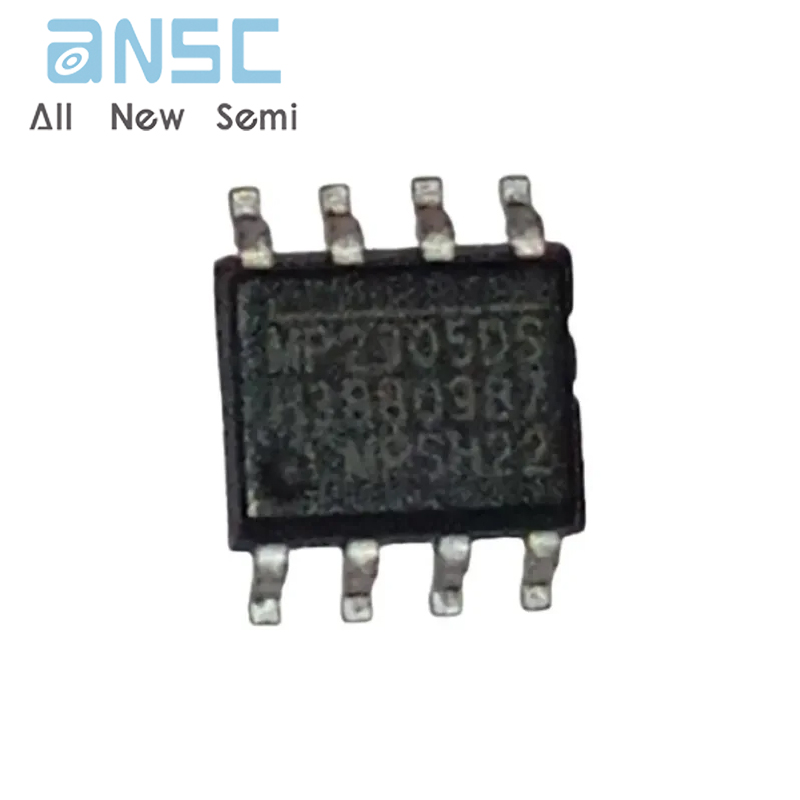

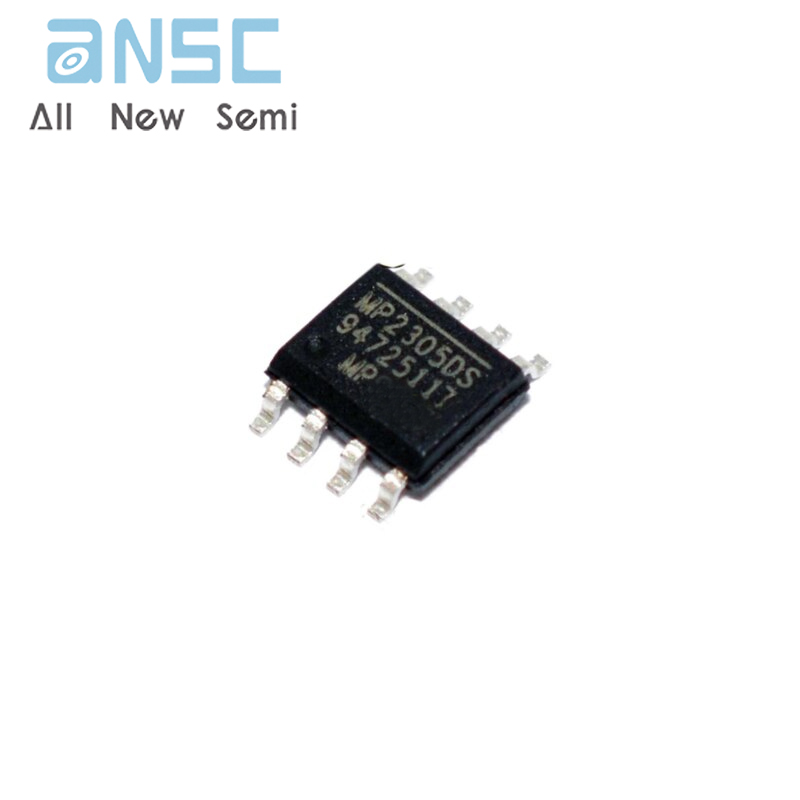

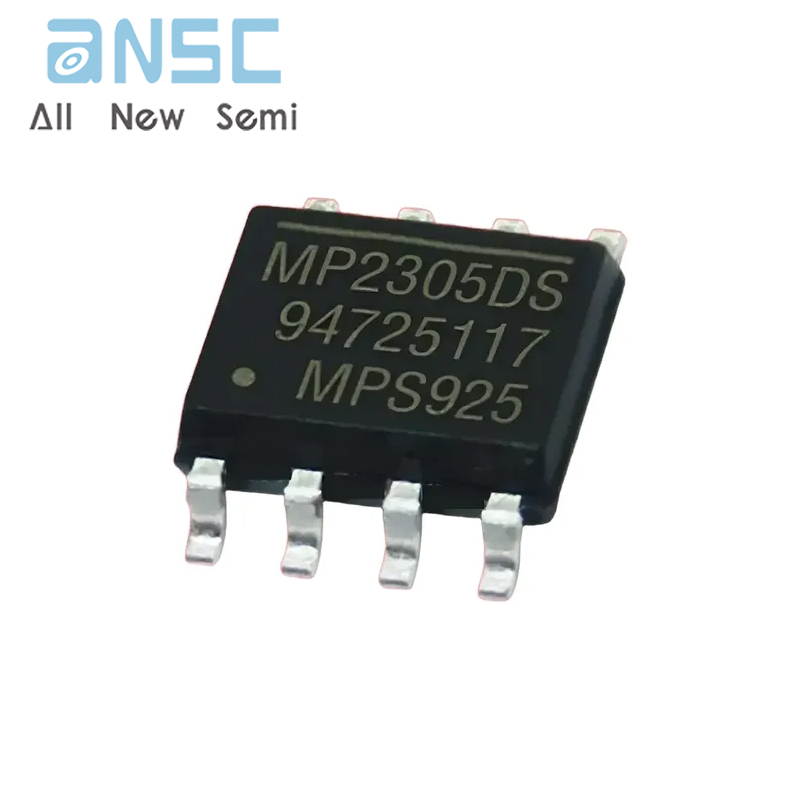

Product Photos
