Hot-selling and scarce UPD720101F1-EA8-A USB 2.0 HOST CONTROLLER BGA spot stock

Product Descriptions

The  µPD720101 complies with the  Universal Serial  Bus Specification  Revision 2.0 and Open  Host  Controller Interface Specification for full-/low-speed signaling and Intel's Enhanced Host Controller Interface Specification for high-speed signaling and works up to 480 Mbps.   The µPD720101 is integrated 3 host controller cores with PCI interface and USB 2.0 transceivers into a single chip.

Product Features

•   Compliant with Universal Serial Bus Specification Revision 2.0 (Data rate 1.5/12/480 Mbps)

•   Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

•   Compliant with Enhanced Host Controller Interface Specification for USB Rev 1.0

•   PCI multi-function device consists of two OHCI host controller cores for full-/low-speed signaling and one EHCI

host controller core for high-speed signaling.

•   Root hub with 5 (max.) downstream facing ports which are shared by OHCI and EHCI host controller cores.

•   All downstream facing ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1 .5 Mbps) transaction.

•   Configurable number of downstream facing ports (2 to 5)

•   32-bit 33 MHz host interface compliant to PCI Specification release 2.2

•   Supports PCI Mobile Design Guide Revision 1.1

•   Supports PCI-Bus Power Management Interface Specification release 1.1

•   PCI bus bus-master access

•   System clock is generated by 30 MHz X’tal or 48 MHz clock input.

− System clock frequency should be set from system software (BIOS) or EEPROM. More detail, see µPD720101 User’s Manual.

•   Operational registers direct-mapped to PCI memory space

•   Legacy support for all downstream facing ports.   Legacy support features allow easy migration for motherboard implementation.

•   3.3 V power supply, PCI signal pins have 5 V tolerant circuit.

Product Specification

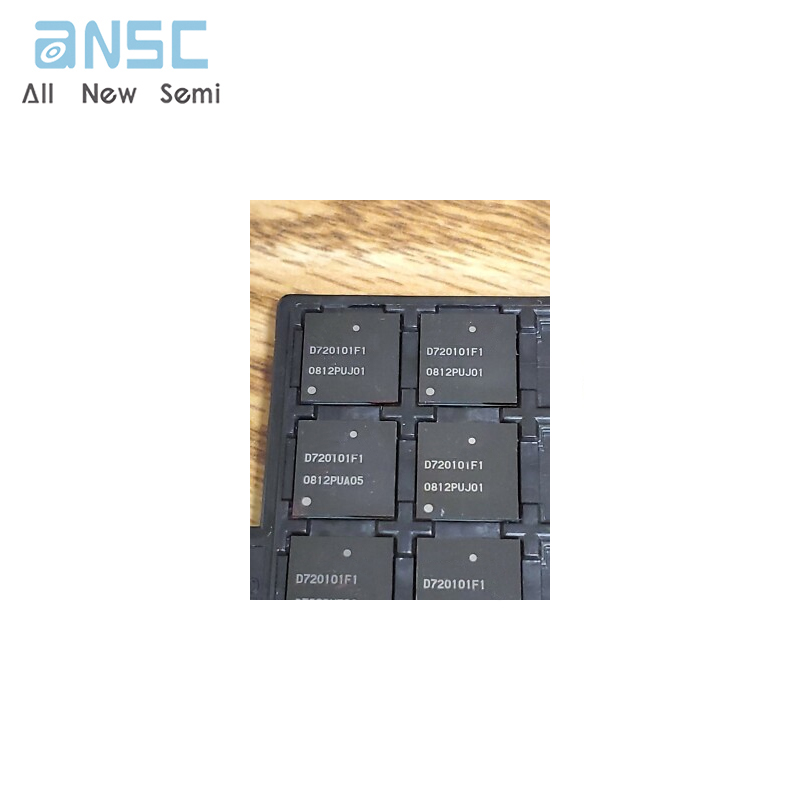

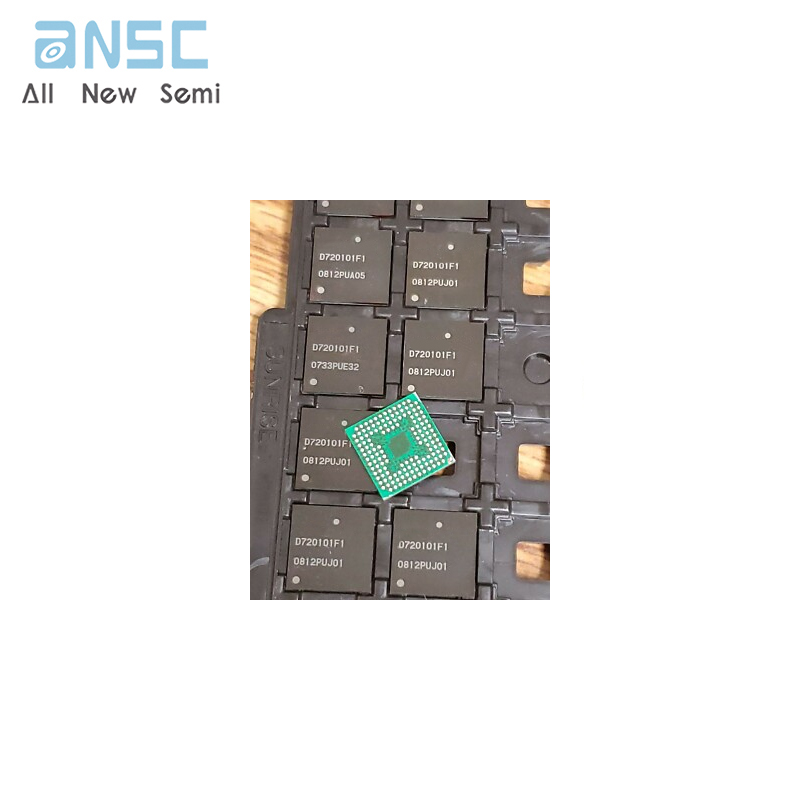

Product Photos

​

For more product information, please download the PDF
