Hot-selling and scarce NC7WZ04P6 TinyLogic UHS Dual Inverter SC70-6 spot stock
Manufacturer Product Number
NC7WZ04P6
Description
NC7WZ04P6 TinyLogic UHS Dual Inverter SC70-6 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NC7WZ04 is a dual inverter from Fairchild’s Ultra High Speed Series of TinyLogic in the space saving SC70 6-lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs tolerate voltages up to 7V independent of VCC operating voltage.
Product Features
■ Space saving SC70 6-lead package
■ Ultra small MicroPak leadless package
■ Ultra High Speed: tPD 2.3 ns Typ into 50 pF at 5V VCC
■ High Output Drive: ±24 mA at 3V VCC
■ Broad VCC Operating Range; 1.65V to 5.5V
■ Matches the performance of LCX when operated at 3.3V VCC
■ Power down high impedance inputs/outputs
■ Overvoltage tolerant inputs facilitate 5V to 3V translation
■ Patented noise/EMI reduction circuitry implemented
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NC7WZ04P6 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 7WZ |
| Packaging | Tape & Reel (TR) |
| Part Status | Discontinued at DigiKey |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Max Propagation Delay @ V, Max CL | 3.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Base Product Number | 7WZ04 |

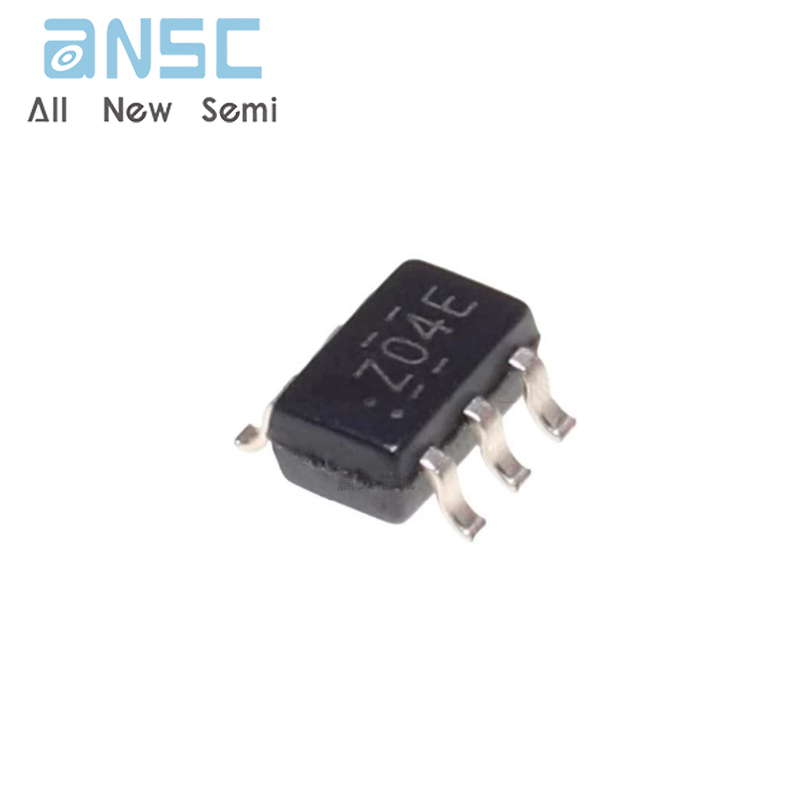

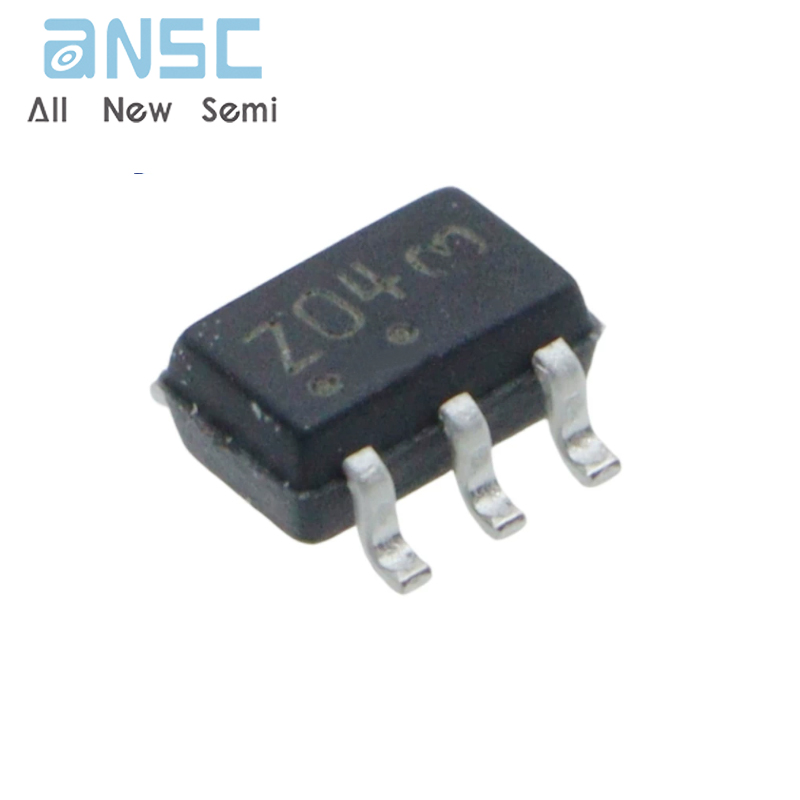

Product Photos
、
