Hot-selling and scarce PCI1225PDV GHK/PDVPC CARD CONTROLLERS QFP208 spot stock

Product Descriptions

The TI PCI1225 is a high-performance PCI-to-PC Card controller that supports two independent card sockets compliant with the 1997 PC Card Standard. The PCI1225 provides a rich feature set that makes it the best choice for bridging between PCI and PC Cards in both notebook and desktop computers. The 1997 PC Card Standard retains the 16-bit PC Card specification defined in PCMCIA Release 2.2 and defines the new 32-bit PC Card (CardBus), capable of full 32-bit data transfers at 33 MHz. The PCI1225 supports any combination of 16-bit and CardBus PC Cards in the two sockets, powered at 5 V or 3.3 V, as required.

The PCI1225 is compliant with the PCI Local Bus Specification 2.2, and its PCI interface can act as either a PCI master device or a PCI slave device. The PCI bus mastering is initiated during 16-bit PC Card DMA transfers or CardBus PC Card bridging transactions. The PCI1225 is also compliant with the latest PCI Bus Power Management Interface Specification.

Product Features

 PCI Bus Power Management Interface Specification 1.0 Compliant

 ACPI 1.0 Compliant

 Fully Compatible With the Intel 430TX (Mobile Triton II) Chipset

 Packaged in a 208-Pin Low-Profile QFP (PDV) or GHK High Density Ball Grid Array (BGA)

 PCI Local Bus Specification Revision 2.2 Compliant

 1997 PC Card Standard Compliant

 PC 99 Compliant

 3.3-V Core Logic With Universal PCI Interfaces Compatible With 3.3-V and 5-V PCI Signaling Environments

 Mix-and-Match 5-V/3.3-V 16-bit PC Cards and 3.3-V CardBus Cards

 Supports Two PC Card or CardBus Slots With Hot Insertion and Removal

 Uses Serial Interface to TI TPS2202/2206 Dual-Slot PC Card Power Switch

 Supports Burst Transfers to Maximize Data Throughput on the PCI Bus and CardBus Bus

 Supports Parallel PCI Interrupts, Parallel ISA IRQ and Parallel PCI Interrupts, Serial ISA IRQ With Parallel PCI Interrupts, and Serial ISA IRQ and PCI Interrupts

 Serial EEPROM Interface for Loading Subsystem ID and Subsystem Vendor ID

Product Specification

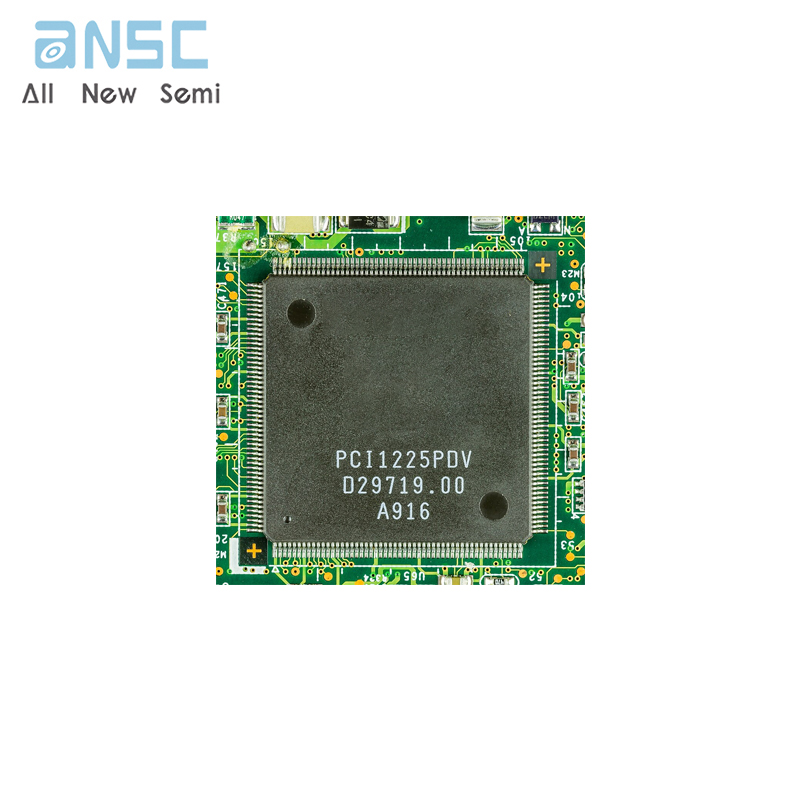

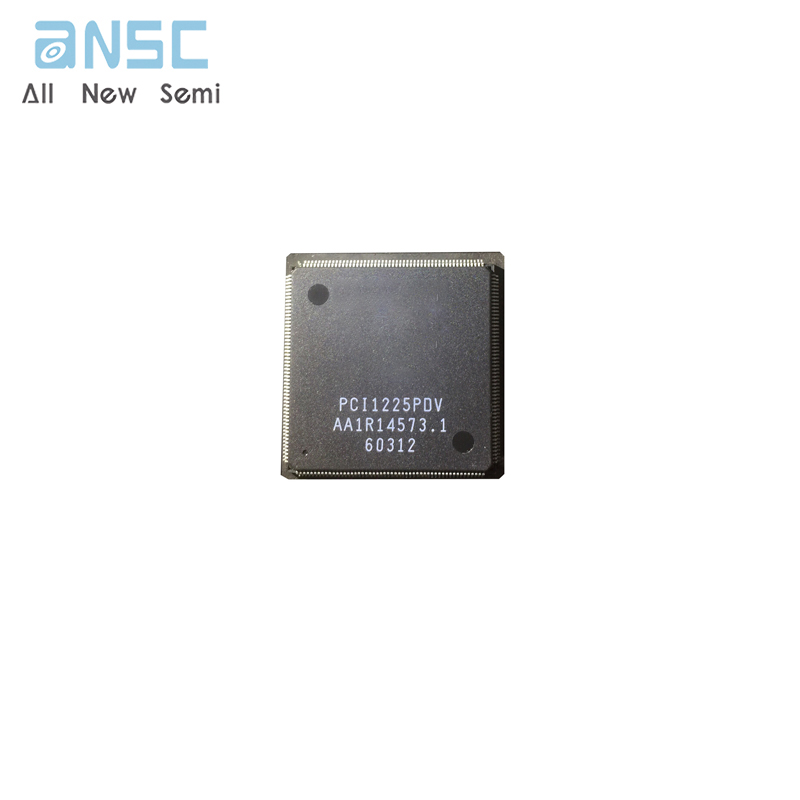

Product Photos

For more product information, please download the PDF
