Hot-selling and scarce AZC099-04S Low Capacitance ESD Protection Array For High Speed Data Interfaces SOT23-6 spot stock

Product Descriptions

AZC099-04S is a high performance and low cost  design which includes surge rated diode arrays  to protect high speed data interfaces. The  AZC099-04S family has been specifically  designed to protect sensitive components, which  are connected to data and transmission lines,  from over-voltage caused by Electrostatic  Discharging (ESD), Electrical Fast Transients  (EFT), and Lightning.

AZC099-04S is a unique design which includes  surge rated, low capacitance steering diodes and  a unique design of clamping cell which is an  equivalent TVS diode in a single package. During  transient conditions, the steering diodes direct  the transient to either the power supply line or to the ground line. The internal unique design of  clamping cell prevents over-voltage on the power  line, protecting any downstream components.

AZC099-04S may be used to meet the ESD  immunity requirements of IEC 61000-4-2, Level 4  (± 15kV air, ±8kV contact discharge).

​One AZC099-04S can be used to replace 4  BAV99 devices in a 5V application or a lower  than 5V application.

Product Features

 ESD Protect for 4 high-speed I/O channels

 Provide ESD protection for each channel to

IEC 61000-4-2 (ESD) ±15kV (air), ±15kV (contact)

IEC 61000-4-4 (EFT) (5/50ns) 40A

IEC 61000-4-5 (Lightning) (8/20µs) 5.5A

 For low operating voltage applications: 5V,  4.2V, 3.3V, 2.5V

 Low capacitance : 1.0pF typical

 Fast turn-on and Low clamping voltage

 Array of surge rated diodes with internal  equivalent TVS diode

 Small package saves board space

 Solid-state silicon-avalanche and active circuit  triggering technology

Product Applications

  Video Graphics Cards

USB2.0 Power and Data lines protection

Notebook and PC Computers

Monitors and Flat Panel Displays

IEEE 1394 Firewire Ports

SIM ports

Product Specification

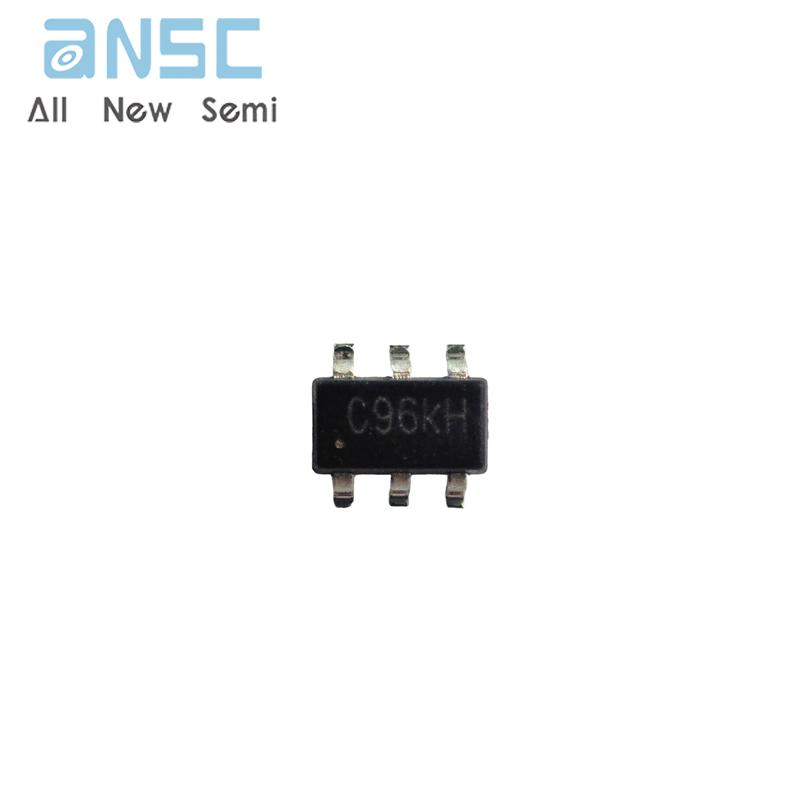

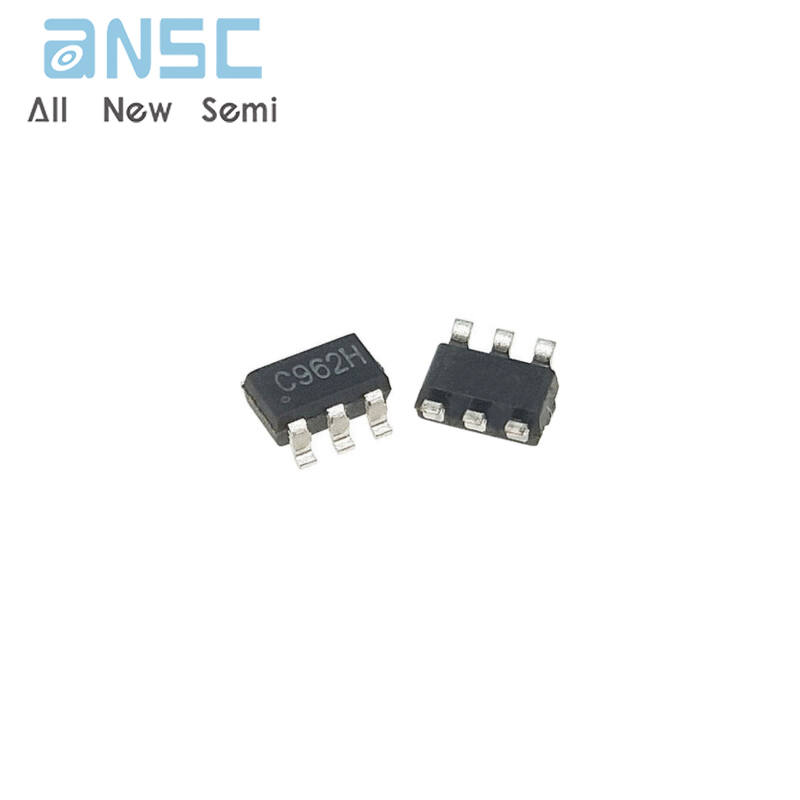

Product Photos

For more product information, please download the PDF
