Hot-selling and scarce MAX512CSD Low-Cost, Triple, 8-Bit Voltage-Output DACs with Serial Interface SOP14 spot stock

Product Descriptions

The MAX512/MAX513 contain three 8-bit, voltage-output digital-to-analog converters (DAC A, DAC B, and DAC C). Output buffer amplifiers for DACs A and B provide voltage outputs while reducing external component count. The output buffer for DAC A can source or sink 5mA to within0.5V of _VDD or VSS. The buffer for DAC B can source or sink 0.5mA to within 0.5V of _VDD  or VSS. DAC C is unbuffered, providing a third voltage output with increased accuracy.  The  MAX512  operates  with  a  single+5V ±10% supply, and the MAX513 operates with a+2.7V to +3.6V supply.   Both devices can also operate with split supplies.

The 3-wire serial interface has a maximum operating frequency of 5MHz and is compatible with SPI™, QSPI™, and Microwire™. The serial input shift register is 16 bits long and consists of 8 bits of DAC input data and 8 bits for DAC selection and shutdown. DAC registers can be loaded independently or in parallel at the positive edge of –C^–.  A latched logic output is also available for auxiliary control.

Ultra-low power consumption and small packages(14-pin DIP/SO) make the MAX512/MAX513 ideal for portable and battery-powered applications. Supply current is only 1mA, dropping to less than 1µA in shutdown. Any of the three DACs can be independently shut down. In shutdown mode, the DAC's R-2R ladder network is disconnected from the reference input, minimizing system power consumption.​

Product Features

♦  Operate from a Single +5V (MAX512) or +3V (MAX513) Supply, or from Bipolar Supplies

♦  Low Power Consumption

1mA Operating Current

<1µA Shutdown Current

♦  Unipolar or Bipolar Outputs

♦  5MHz, 3-Wire Serial Interface

♦  SPI, QSPI, and Microwire Compatible

♦ Two Buffered, Bipolar-Output DACs (DACs A/B)

♦  Independently Programmable Shutdown Mode

♦  Space-Saving 14-Pin SO/DIP Packages

♦  Pin and Software Reset

Product Applications

Digital Gain and Offset Adjustment

Programmable Attenuators

Programmable Current Sources

Programmable Voltage Sources

RF Digitally Adjustable Bias Circuits

VCO Tuning

Product Specification

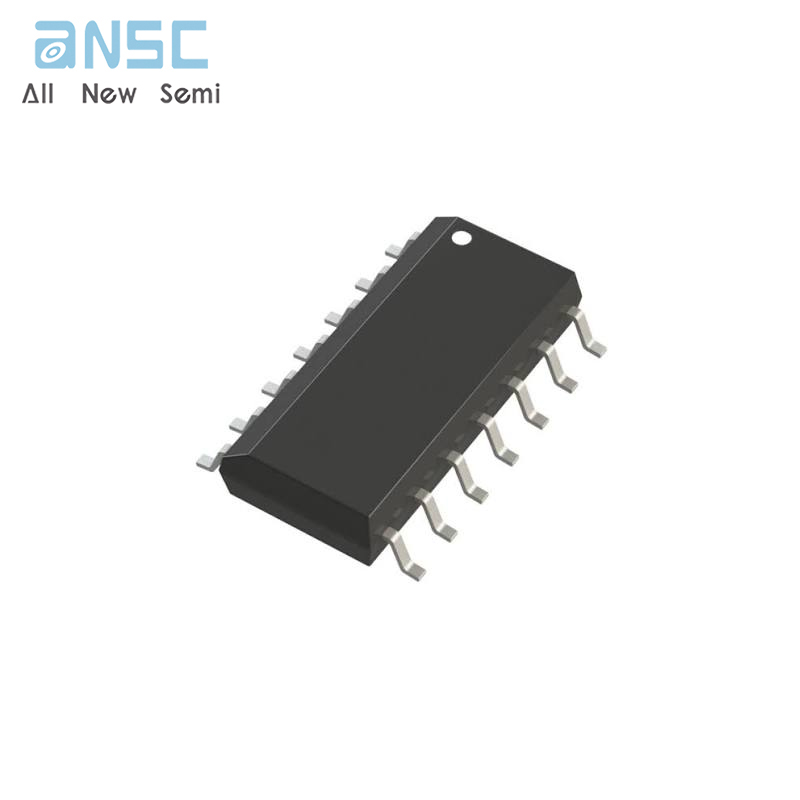

Product Photos

For more product information, please download the PDF
