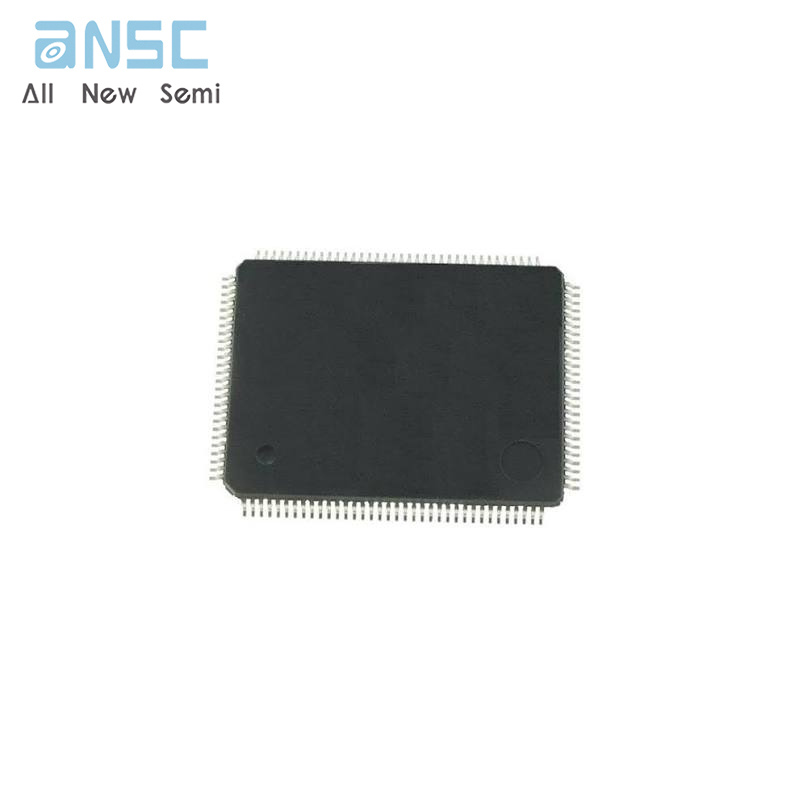

Hot-selling and scarce ISL54100CQZ TMDS Regenerators with Multiplexers IC QFP128 spot stock

Product Descriptions

The ISL54100, ISL54101, ISL54102 are high-performance TMDS (Transition Minimized Differential Signaling) timing regenerators and multiplexers. The receiver contains a programmable equalizer and a clock data recovery (CDR) function for each of the 3 TMDS pairs in an HDMI or DVI signal. The TMDS data outputs of the ISL54100 are regenerated and perfectly aligned to the regenerated TMDS clock signal, creating an extremely clean, low-jitterDVI/HDMI signal that can be easily decoded by any TMDS receiver.

The ISL54100’s design and package footprint supports many compound configurations.Two ISL54100s can create a DualLink 4:1 mux, a 4:2 crosspoint, or an 8:1 mux. Additional ISL54100s can create larger combinations of these building blocks. The ISL54102 with its 2:1 multiplexing function serves applications with fewer inputs, while the ISL54101 can be used as a cable extender, to clean up a noisy/jittery TMDS source, or to provide a very stable TMDS signal to a marginal DVI or HDMI receiver.

Certified HDMI 1.3a compliant by the HDMI ATC for the following features: 12 bit Deep Color (1080i/720p guaranteed, 1080p typical), x.v.Color™, and all HDMI1 .3 audio formats and options.

Product Features

•  ISL54100: 4:1 TMDS regenerator and multiplexer

•  ISL54101: 1:1 TMDS regenerator

•  ISL54102: 2:1 TMDS regenerator and multiplexer

•  Clock Data Recovery and Retiming function enables use as TMDS range extender

•  Programmable pre-emphasis on output driver

•  Channel activity detect based on input TMDS clock activity

•  Symmetrical pinout enables high-performance DualLink, 4:2 crosspoint and 8:1 multiplexing options

•  Programmable internal 50100, or high-Z termination

•  External pins for channel select, activity detection

•  Stand-alone or I2C software-controlled operation

•  Hardware, software, or automatic channel selection

•  Pb-free (RoHS compliant)

Product Applications

•  KVM switches

•  A/V receivers

•  DVI/HDMI extenders

•  Televisions/PC monitors/projectors

Product Specifications

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
