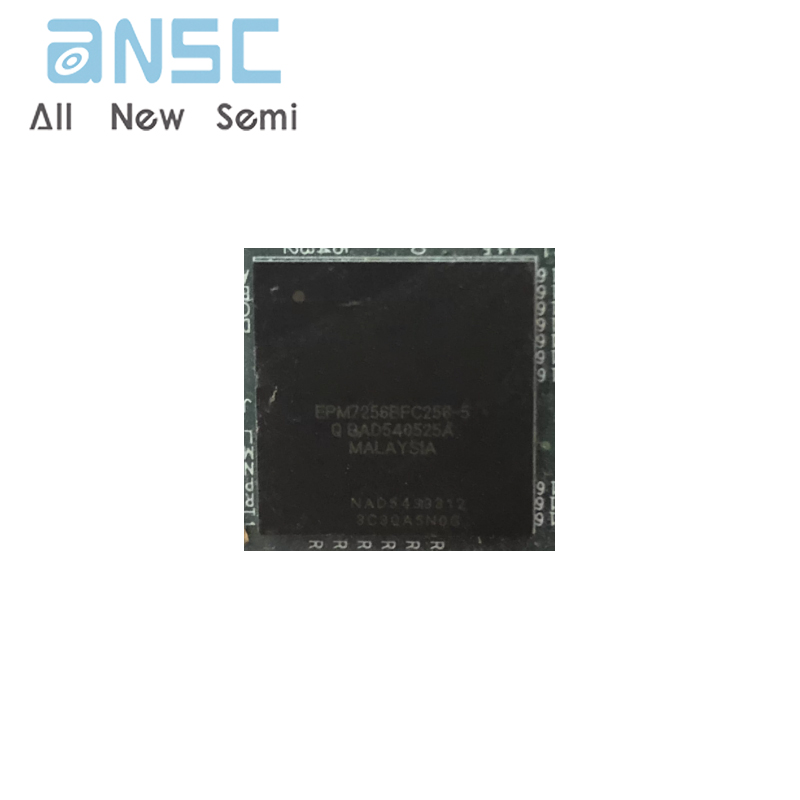

Spot sales of EPM7256BFC256-7 Programmable Logic Device BGA256

Product Descriptions

MAX 7000B devices are high-density, high-performance devices based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based MAX 7000B devices operate with a 2.5-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 3.5 ns, and counter speeds up to 303.0 MHz.

Product Features

■ System-level features

– MultiVoltTM I/O interface enabling device core to run at 2.5 V, while I/O pins are compatible with 3.3-V, 2.5-V, and 1.8-V logic levels

– Programmable power-saving mode for 50% or greater power reduction in each macrocell

– Fast input setup times provided by a dedicated path from I/O pin to macrocell registers

– Support for advanced I/O standards, including SSTL-2 and SSTL-3, and GTL+

– Bus-hold option on I/O pins

– PCI compatible

– Bus-friendly architecture including programmable slew-rate control

– Open-drain output option

– Programmable security bit for protection of proprietary designs

– Built-in boundary-scan test circuitry compliant with IEEE Std. 1149.1

– Supports hot-socketing operation

– Programmable ground pins

■ Advanced architecture features

– Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance

– Configurable expander product-term distribution, allowing up to 32 product terms per macrocell

– Programmable macrocell registers with individual clear, preset, clock, and clock enable controls

– Two global clock signals with optional inversion

– Programmable power-up states for macrocell registers

– 6 to 10 pin- or logic-driven output enable signals

■ Advanced package options

– Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), ball-grid array (BGA), space-saving FineLine BGATM, 0.8-mm Ultra FineLine BGA, and plastic J-lead chip carrier (PLCC) packages

– Pin-compatibility with other MAX 7000B devices in the same package

■ Advanced software support

– Software design support and automatic place-and-route provided by Altera’s MAX+PLUS® II development system for Windows-based PCs and Sun SPARCstation, and HP 9000 Series 700/800 workstations.

Product Specification

Product Photos

For more product information, please download the PDF
