Hot-selling and scarce NRF2401AG Single chip 2.4 GHz Transceiver QFN spot stock

Product Descriptions

nRF2401A is a single-chip radio transceiver for the world wide 2.4 - 2.5 GHz ISM  band. The transceiver consists of a fully integrated frequency synthesizer, a power  amplifier, a crystal oscillator and a modulator. Output power and frequency channels  are easily programmable by use of the 3-wire serial interface. Current consumption is  very low, only 10.5mA at an output power of -5dBm and 18mA in receive mode.  Built-in Power Down modes makes power saving easily realizable.

Product Features

• True single chip GFSK transceiver in a small 24-pin package (QFN24 5x5mm)

• Data rate 0 to1Mbps

• Only 2 external components

• Multi channel operation

• 125 channels

• Channel switching time <200µs.

• Support frequency hopping

• Data slicer / clock recovery of data

• Address and CRC computation

• DuoCeiver™ for simultaneous dual receiver topology

• ShockBurst™ mode for ultra-low power operation and relaxed MCU performance

• Power supply range: 1.9 to 3.6 V

• Low supply current (TX), typical 10.5mA peak@ -5dBm output power

• Low supply current (RX), typical 18mA peak in receive mode

• 100 % RF tested

• No need for external SAW filter

• World wide use

Product Applications

• Wireless mouse, keyboard, joystick

• Keyless entry

• Wireless data communication

• Alarm and security systems

• Home automation

• Surveillance

• Automotive

• Telemetry

• Intelligent sports equipment

• Industrial sensors

• Toys

Product Specification

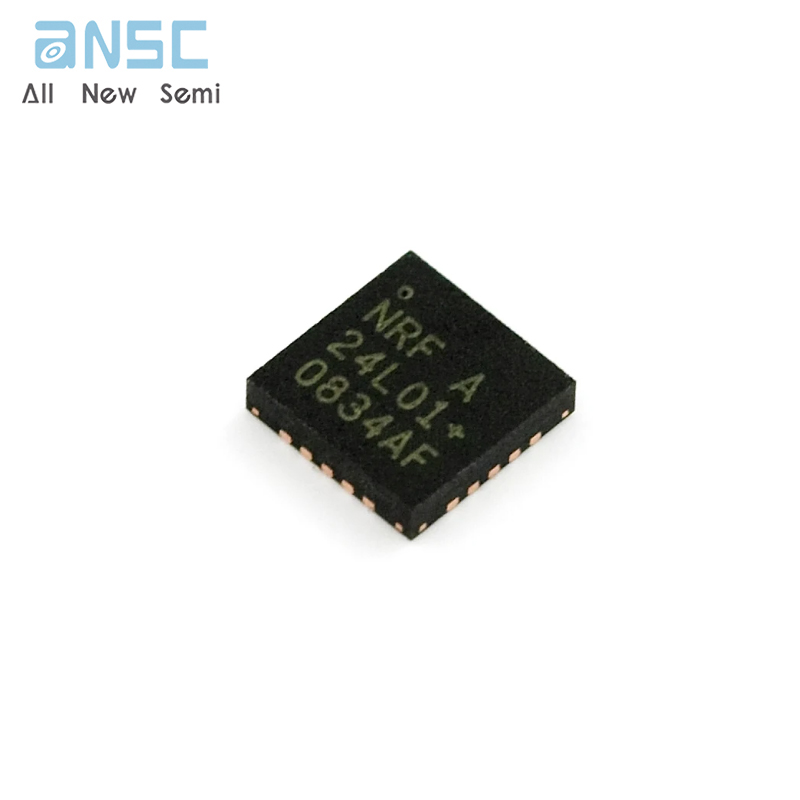

Product Photos

For more product information, please download the PDF
