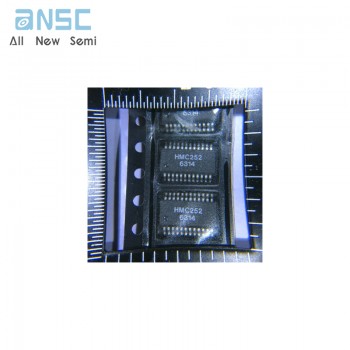

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce HMC252QS24 GaAs MMIC SP6T NON-REFLECTIVE SWITCH DC - 3 GHz QSOP24 spot stock
Manufacturer Product Number
HMC252QS24
Description
HMC252QS24 GaAs MMIC SP6T NON-REFLECTIVE SWITCH DC - 3 GHz QSOP24 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The HMC252QS24 & HMC252QS24E are low-cost non-reflective SP6T switches in 24-lead QSOP packages featuring wideband operation from DC to 3.0 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC252QS24 & HMC252QS24E SP6T replaces multiple configurations of SP4T and SPDT MMIC switches and logic drivers.
Product Features
Low Insertion Loss (2 GHz): 0.9 dB
Single Positive Supply: VDD = +5V or +3.3V
Integrated 3:6 TTL Decoder
24 Lead QSOP Package
Product Applications
The HMC252QS24 / HMC252QS24E is ideal for:
• Base Station
• CATV / DBS
• MMDS & WirelessLAN
• Test Equipment
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HMC252QS24 |
| Category | RF and Wireless |
| RF Switches | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| RF Type | General Purpose |
| Topology | Absorptive |
| Circuit | SP6T |
| Frequency Range | 0Hz ~ 3GHz |
| Isolation | 29dB |
| Insertion Loss | 1.3dB |
| Test Frequency | 3GHz |
| P1dB | 24dBm |
| IIP3 | 46dBm |
| Impedance | 50Ohm |
| Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 24-QSOP |
| Base Product Number | HMC252 |

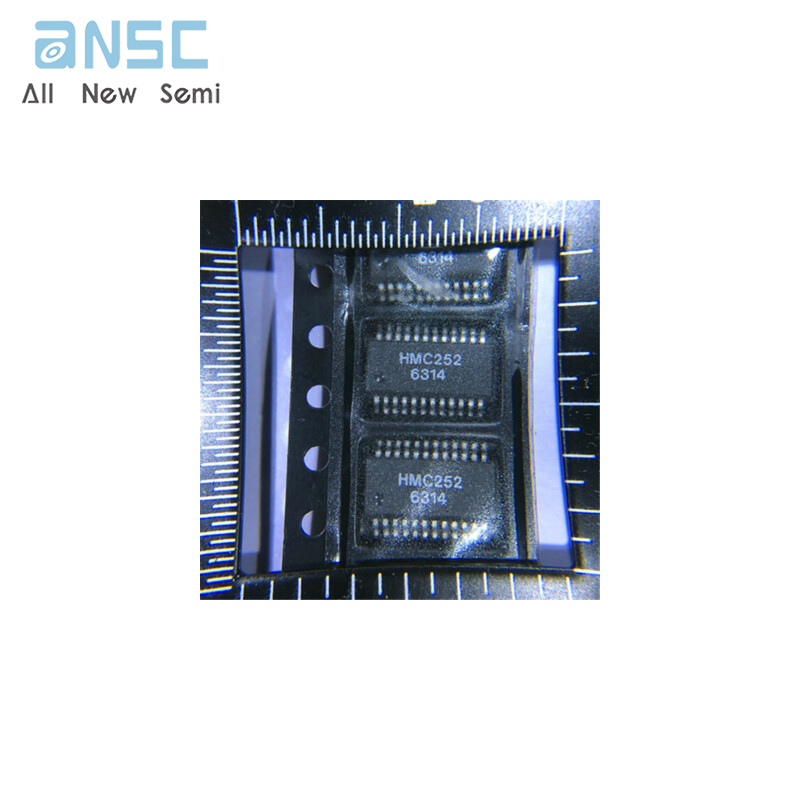

Product Photos
