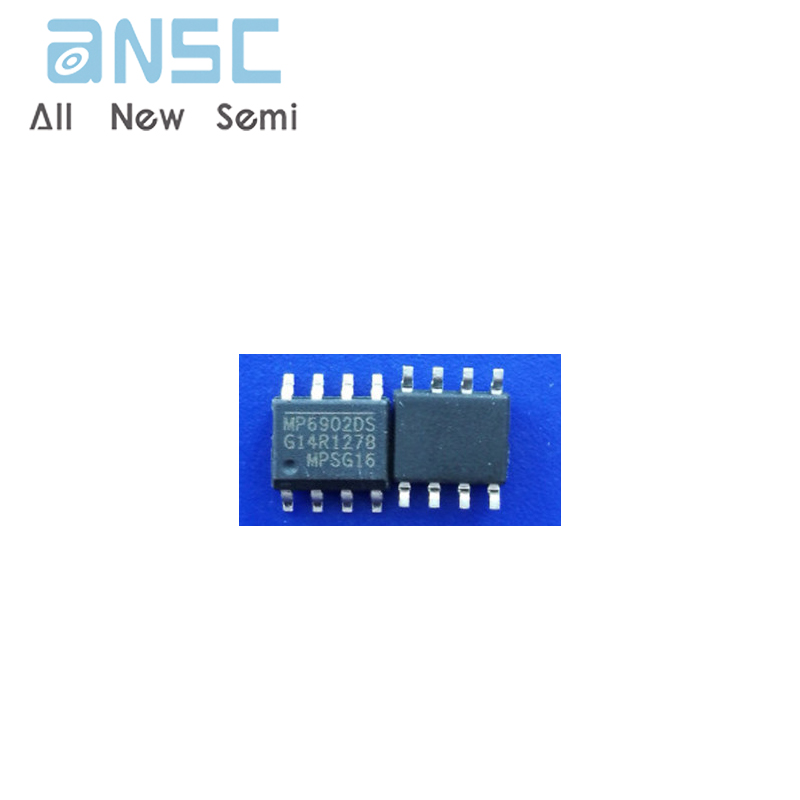

Hot-selling and scarce MP6902DS-LF-Z Fast Turn-off Intelligent Controller SOP8
Manufacturer Product Number
MP6902DS-LF-Z
Description
MP6902DS-LF-Z Fast Turn-off Intelligent Controller SOP8
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP6902 is a Low-Drop Diode Emulator IC for Flyback converters which combined with an external switch replaces Schottky rectification diodes for high efficiency. The chip regulates the forward drop of an external switch to about 70mV and switches it off as soon as the voltage becomes negative. MP6902 has a light-load sleep mode that reduces the quiescent current to <300uA.
Product Features
• Supports DCM and Quasi-Resonant Flyback Converters
• Works with 12V Standard and 5V Logic Level FETS
• Compatible with Energy Star, 1W Standby Requirements
• VDD Range From 8V to 24V
• 70mV VDS Regulation Function (1)
• Fast Turn-off Total Delay of 20ns
• Max 400kHz Switching Frequency
• Light Load Mode Function (1) with <300μA Quiescent Current
• Supports High-side and Low-side Rectification
• Power Savings of Up to 1.5W in a Typical Notebook Adapter
Product Applications
• Industrial Power Systems
• Distributed Power Systems
• Battery Powered Systems
• Flyback Converters
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP6902DS-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Supply Controllers, Monitors | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Applications | Secondary-Side Controller |
| Voltage - Input | - |
| Voltage - Supply | 8V ~ 24V |
| Current - Supply | 3 mA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MP6902 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
MP6902DS-LF-Z Fast Turn-off Intelligent Controller SOP8
276In stock:
Can ship immediately
