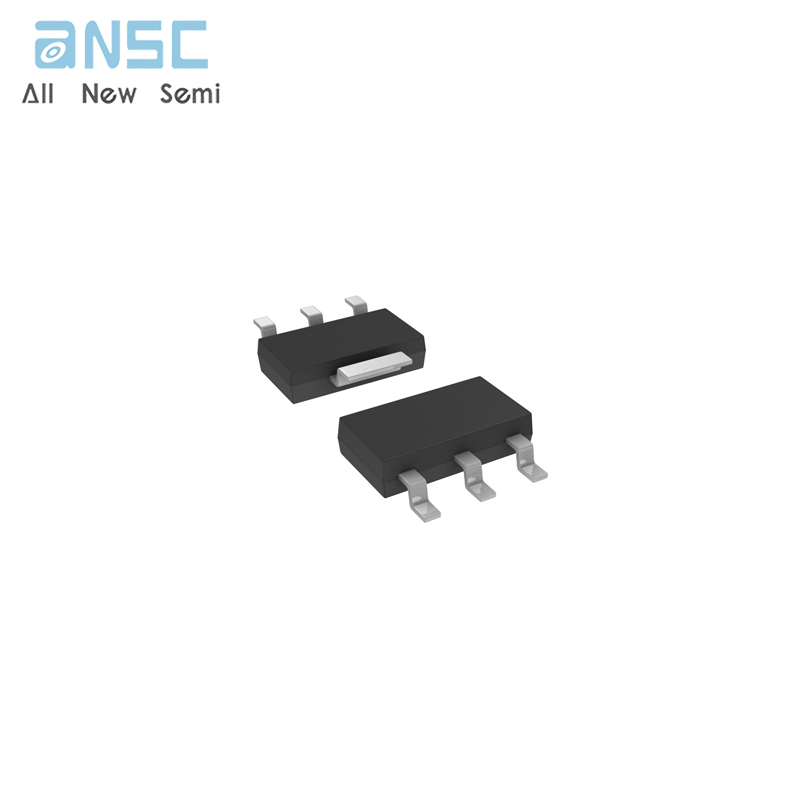

Hot-selling and scarce RT9164APG 1A Fixed and Adjustable Low Dropout Positive Voltage Regulators SOT223 spot stock
Manufacturer Product Number
RT9164APG
Description
RT9164APG 1A Fixed and Adjustable Low Dropout Positive Voltage Regulators SOT223 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The RT9164A series of high performance positive voltage regulators is designed for applications requiring low dropout performance at fully rated current. Additionally, the RT9164A series provides excellent regulation over variations in line and load. Outstanding features include low dropout performance at rated current, fast transient response, internal current-limiting, and thermal-shutdown protection of the output device. The RT9164A series of three terminal regulators offers fixed and adjustable voltage options available in space-saving SOT-223, TO-252, and TO-263 packages.
Product Features
z Low Dropout Performance, 1.4V Max.
z Full Current Rating Over Line and Temperature
z Fast Transient Response
z ± 2% Output Voltage Accuracy
z 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, and 3.5V Fixed Adjustable Output Voltage
z SOT-223, TO-252, and TO-263 Packages
z RoHS Compliant and 100% Lead (Pb)-Free
Product Applications
z Active SCSI Termination
z Low Voltage Microcontrollers
z Switching Power Supply Post-Regulator
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-RT9164APG |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 14V |
| Voltage - Output (Min/Fixed) | 1.256V |
| Voltage - Output (Max) | 13.6V |
| Voltage Dropout (Max) | 1.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 72dB (120Hz) |
| Control Features | Current Limit |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| Base Product Number | RT9164 |
Product Photos
For more product information, please download the PDF
