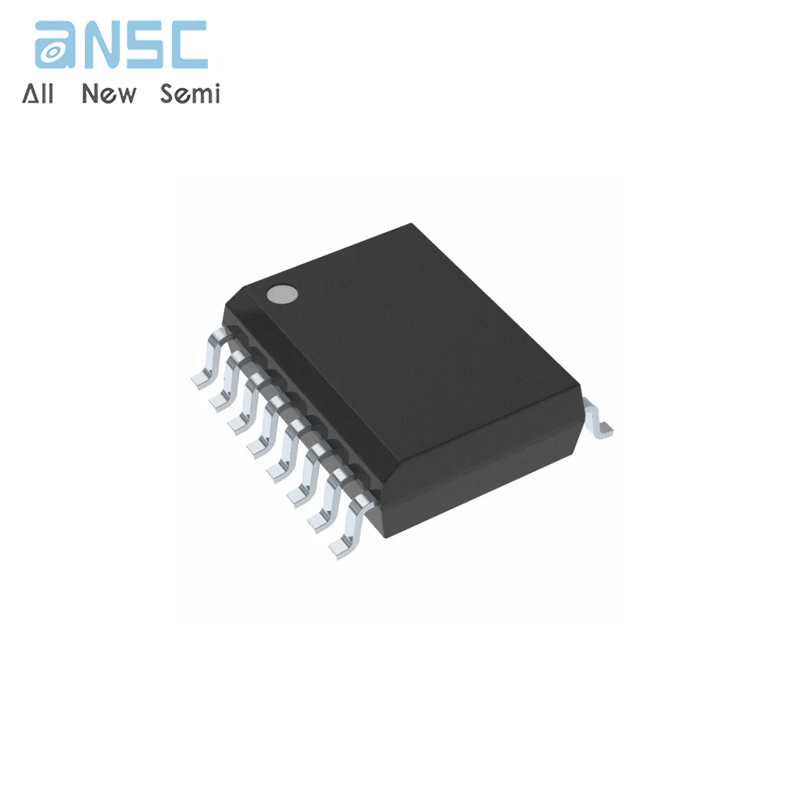

Hot-selling and scarce ADUM1400ARW Quad-Channel Digital Isolators SOP16 spot stock

Product Descriptions

​Combining high speed CMOSand monolithic air core transformer technology,these isolationcomponents provide outstanding performance characteristicssuperior to alternatives such as optocoupler devices .

By avoiding the use of LEDs and photodiodes,iCoupler devicesremove the design difficulties commonly associated withoptocouplers.The typical optocoupler concerns regardinguncertain current transfer ratios,nonlinear transfer functions,and temperature and lifetime effects are eliminated with thesimple iCoupler digital interfaces and stable performancecharacteristics .The need for external drivers and other discretesis eliminated with these iCoupler products .Furthermore,iCoupler devices consumes one-tenth to one-sixth the power ofoptocouplers at comparable signal data rates .

The ADuM140x isolators provide four independent isolationchannels in a variety of channel configurations and data rates(see the Ordering Guide).All models operate with the supplyvoltage on either side ranging from 2.7 V to 5.5 V,providingcompatibility with lower voltage systems as well as enabling avoltage translation functionality across the isolation barrier.Inaddition,the ADuM140x provides low pulse-width distortion(<2 ns for CRW grade) and tight channel-to-channel matching(<2 ns for CRW grade).Unlike other optocoupler alternatives,the ADuM140x isolators have a patented refresh feature thatensures dc correctness in the absence of input logic transitionsand during power-up/power-down conditions .

Product Features

Low power operation

5 V operation

1.0 mA per channel max @ 0 Mbps to 2 Mbps

3.5 mA per channel max @ 10 Mbps

31 mA per channel max @ 90 Mbps

3 V operation

0.7 mA per channel max @ 0 Mbps to 2 Mbps

2.1 mA per channel max @ 10 Mbps

20 mA per channel max @ 90 Mbps

Bidirectional communication

3 V/5 V level translation

High temperature operation: 105°C

High data rate: dc to 90 Mbps (NRZ)

Precise timing characteristics

2 ns max pulse-width distortion

2 ns max channel-to-channel matching

High common-mode transient immunity: >25 kV/μs

Output enable function

Wide body 16-lead SOIC package, Pb-free models available

Safety and regulatory approvals

UL recognition: 2500 V rms for 1 minute per UL 1577

CSA component acceptance notice #5A

VDE certificate of conformity

DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01

DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000

VIORM = 560 V peak

Product Applications

General-purpose multichannel isolation

SPI® interface/data converter isolation

RS-232/RS-422/RS-485 transceiver

Industrial field bus isolation

Product Specification

Product Photos

For more product information, please download the PDF
