Hot-selling and scarce 89HPES12NT3ZBBCG 12-lane 3-Port Non-Transparent PCI Express® Switch BGA spot stock

Product Descriptions

The 89HPES12NT3 is a member of the IDT PRECISE™ family of PCI Express®switching solutions offering the next-generation I/O interconnect standard. The PES12NT3 is a 12-lane, 3-port peripheral chip that performs PCI Express Base switching with a feature set optimized for high performance applications such as servers,storage,and communications/networking. It provides high-performance I/O connectivity and switching functions between a PCIe® upstream port, a transparent downstream port,and a non-transparent downstream port.

With non-transparent bridging (NTB) functionality, the PES12NT3 can be used standalone or as a chipset with IDT PCIe System Interconnect Switches in multi-host and intelligent I/O applications such as communications,  storage,  and  blade  servers  where  inter-domain communication is required.

Product Features

◆ High Performance PCI Express Switch

–   Twelve PCI Express lanes (2 .5Gbps),three switch ports

–   Delivers 48 Gbps (6 GBps)of aggregate switching capacity

–   Low latency cut-through switch architecture

–   Support for Max Payload size up to 2048 bytes

–   Supports one virtual channel and eight traffic classes

–   PCI Express Base specification Revision 1.0a compliant

◆ Flexible Architecture with Numerous Configuration Options

–   Port arbitration schemes utilizing round robin

–   Supports automatic per port link width negotiation (x4,x2, or x1)

–   Static lane reversal on all ports

–   Automatic polarity inversion on all lanes

–   Supports locked transactions, allowing use with legacy software

–   Ability to load device configuration from serial EEPROM

–   Ability to control device via SMBus

◆ Non-Transparent Port

–   Crosslink support on NTB port

–   Four mapping windows supported

•  Each may be configured as a 32-bit memory or I/O window

•  May be paired to form a 64-bit memory window

–   Interprocessor communication

•  Thirty-two inbound and outbound doorbells

•  Four inbound and outbound message registers

•  Two shared scratchpad registers

–   Allows up to sixteen masters to communicate through the nontransparent port

–   No limit on the number of supported outstanding transactions through the non-transparent bridge

–   Completely  symmetric  non-transparent  bridge  operation allows similar/same configuration software to be run

–   Supports direct connection to a transparent or non-transparent port of another switch

Product Specification

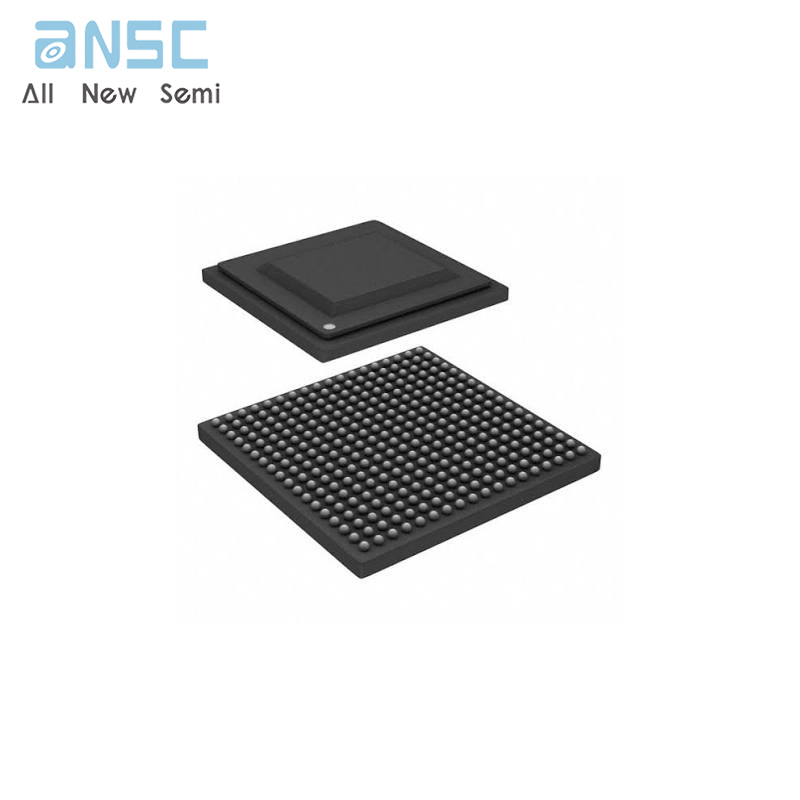

Product Photos

For more product information, please download the PDF
