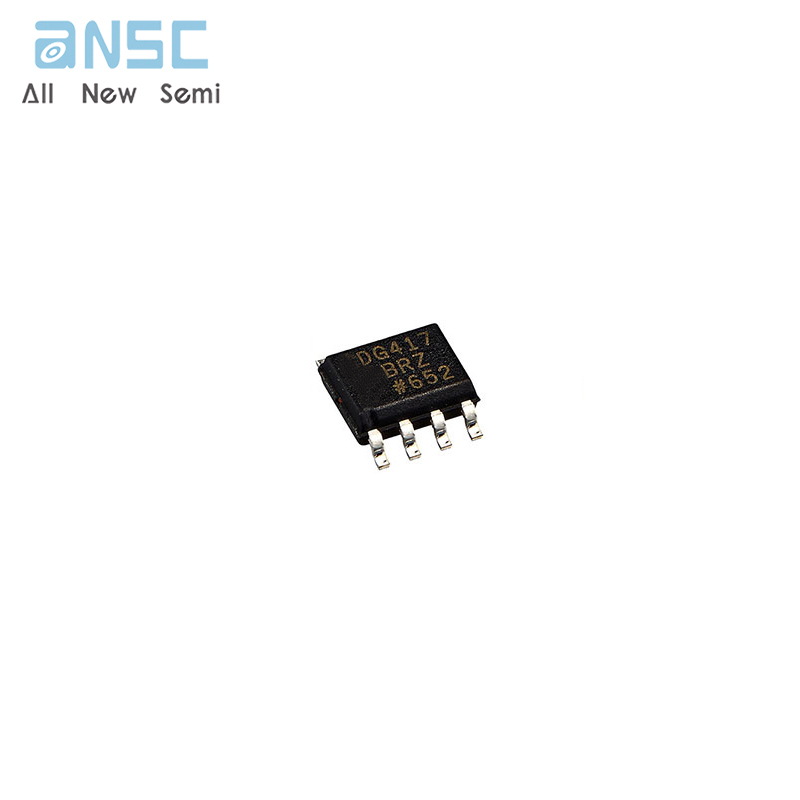

Hot-selling and scarce DG417DY Precision CMOS Analog Switches SOP8 spot stock
Manufacturer Product Number
DG417DY
Description
DG417DY Precision CMOS Analog Switches SOP8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The DG417, DG418, DG419 monolithic CMOS analog switches were designed to provide high performance switching of analog signals. Combining low power, low leakages, high speed, low on-resistance and small physical size, the DG417 series is ideally suited for portable and battery powered industrial and military applications requiring high performance and efficient use of board space. To achieve high-voltage ratings and superior switching performance, the DG417 series is built on high voltage silicon gate (HVSG) process. Break-before-make is guaranteed for the DG419, which is an SPDT configuration.An epitaxial layer prevents latchup. Each switch conducts equally well in both directions when on, and blocks up to the power supply level when off. The DG417 and DG418 respond to opposite control logic levels as shown in the truth table.
Product Features
• ± 15 V analog signal range
• On-resistance - RDS(on): 20
• Fast switching action - ton: 100 ns
• Ultra low power requirements - PD: 35 nW
• TTL and CMOS compatible
• MiniDIP and SOIC packaging
• 44 V supply max. rating
Product Applications
• Precision test equipment
• Precision instrumentation
• Battery powered systems
• Sample-and-hold circuits
• Military radios
• Guidance and control systems
• Hard disk drives
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DG417DY |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 35Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| Charge Injection | 60pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | DG417 |
Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
