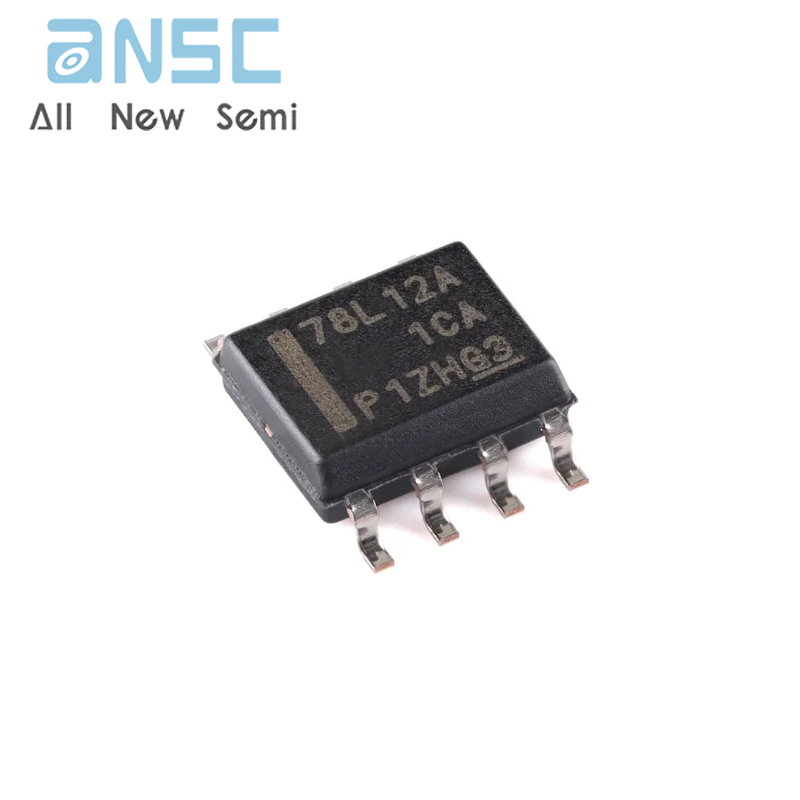

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Spot sales of UA78L12ACDR POSITIVE-VOLTAGE REGULATORS SOP8
Manufacturer Product Number
UA78L12ACDR
Description
UA78L12ACDR POSITIVE-VOLTAGE REGULATORS SOP8
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high-current voltage regulators. One of these regulators can deliver up to 100 mA of output current.
The internal limiting and thermal-shutdown features of these regulators essentially make them immune to overload. When used as a replacement for a Zener diode-resistor combination, an effective improvement in output impedance can be obtained, together with lower bias current.
The μA78L00C and μA78L00AC series devices are characterized for operation over the virtual junction temperature range of 0°C to 125°C. The μA78L05AI device is characterized for operation over the virtual junction temperature range of −40°C to 125°C.
Product Features
• 3-Terminal Regulators
• Output Current up to 100 mA
• No External Components
• Internal Thermal-Overload Protection
• Internal Short-Circuit Current Limiting
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-UA78L12ACDR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 27V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.7V @ 40mA |
| Current - Output | 100mA |
| PSRR | 42dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | UA78L12 |
Product Photos
For more product information, please download the PDF
