Spot sales of MAX138CPL Digit A/D Converters with Bandgap Refrence and Charge-Pump Voltage Converter DIP-40
Manufacturer Product Number
MAX138CPL
Description
MAX138CPL Digit A/D Converters with Bandgap Refrence and Charge-Pump Voltage Converter DIP-40
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MAX138 / MAX139 are 31/2 digit A/D converters (ADCs)with on-board LCD (MAX138) and LED (MAX139) display drivers. The MAX138/MAX139 also contain a charge-pump voltage inverter. The charge-pump inverter allows the MAX138 / MAX139 to measure both positive and negative input voltages while operating from a single power-supply voltage from +2.5V to +7V. The operating circuits of the MAX138/MAX139 are similar to those of the ICL7136and ICL7137 respectively, except the MAX138/MAX139 have an internal oscillator and an external charge pump capacitor connected to pins 38 and 40.
MAX140 is a low segment-current version of the MAX139 intended for use with low-current LED displays.
Product Features
Single Supply +2.5V to +7.0V Operation
Measures Both Positive and Negative InputVoltages
Charge-Pump Voltage Inverter Generates aNegative Supply Voltage
Internal Bandgap Reference
On-Board Display Driver
Low Segment Current (MAX140)
Product Applications
+5V Powered Panel Meters
+3V Powered DMMs
Instruments
Portable Monitors
Weigh Scales
Digital Thermometers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX138CPL |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Manufacturer | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | ADC |
| Number of Channels | 2 |
| Resolution (Bits) | 3.5 Digit |
| Sampling Rate (Per Second) | - |
| Data Interface | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.5V ~ 7V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP |
| Base Product Number | MAX138 |

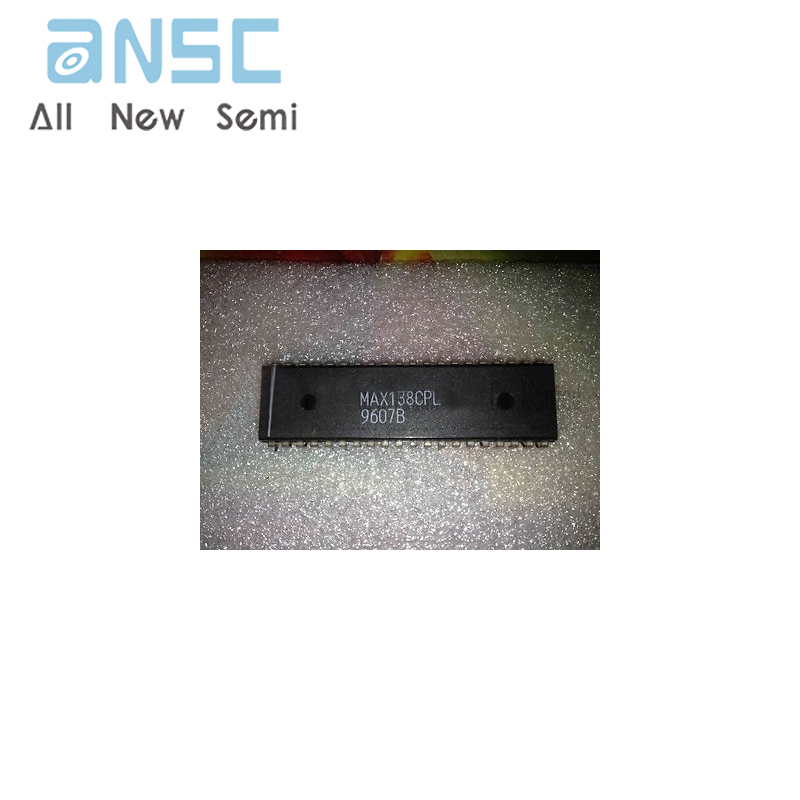

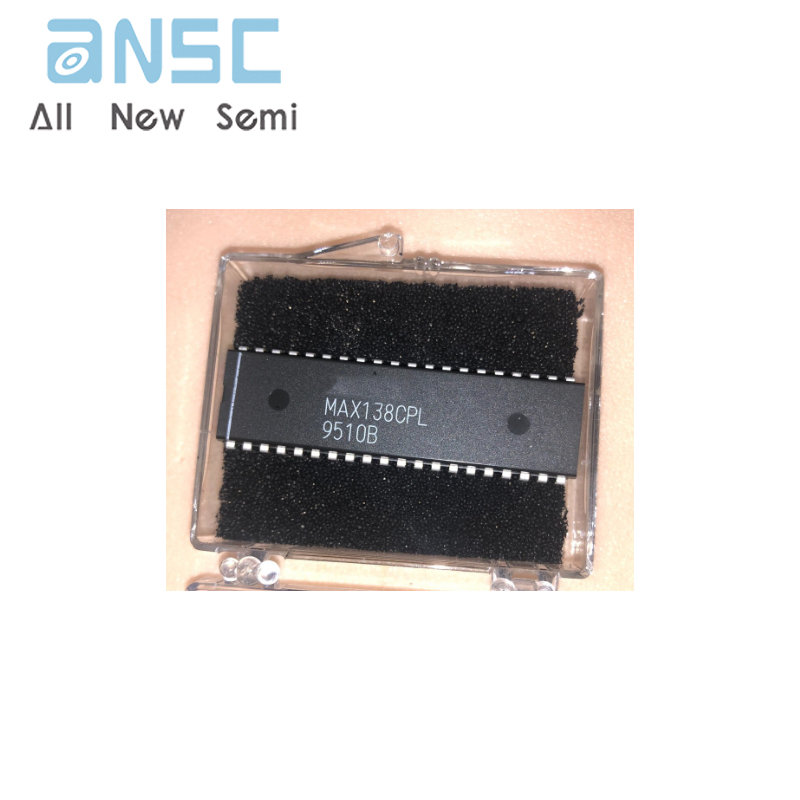

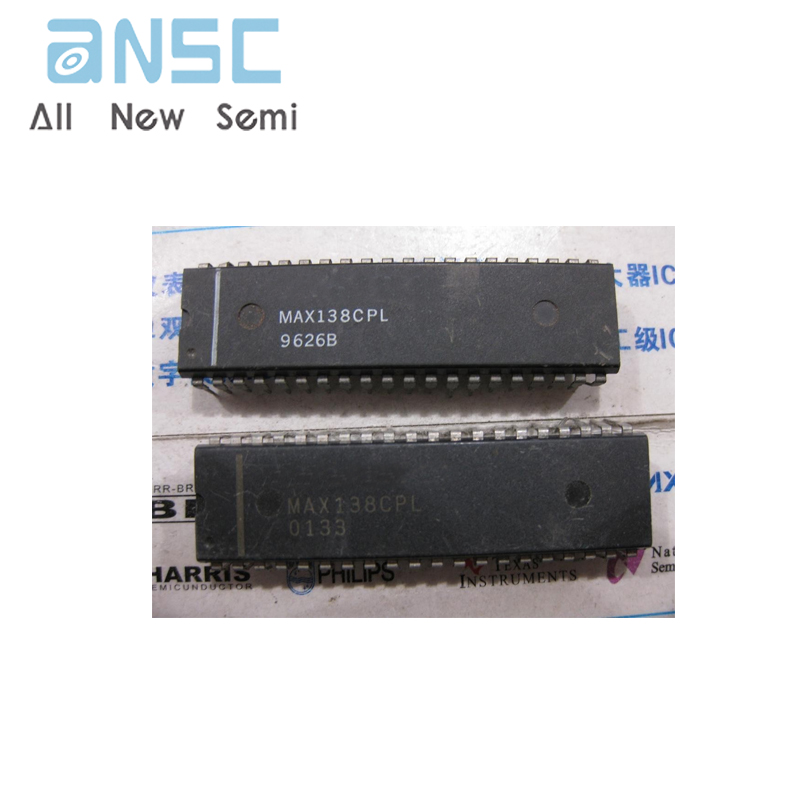

Product Photos
For more product information, please download the PDF
Other Products In The same category:
MAX138CPL Digit A/D Converters with Bandgap Refrence and Charge-Pump Voltage Converter DIP-40
8In stock:
Can ship immediately
