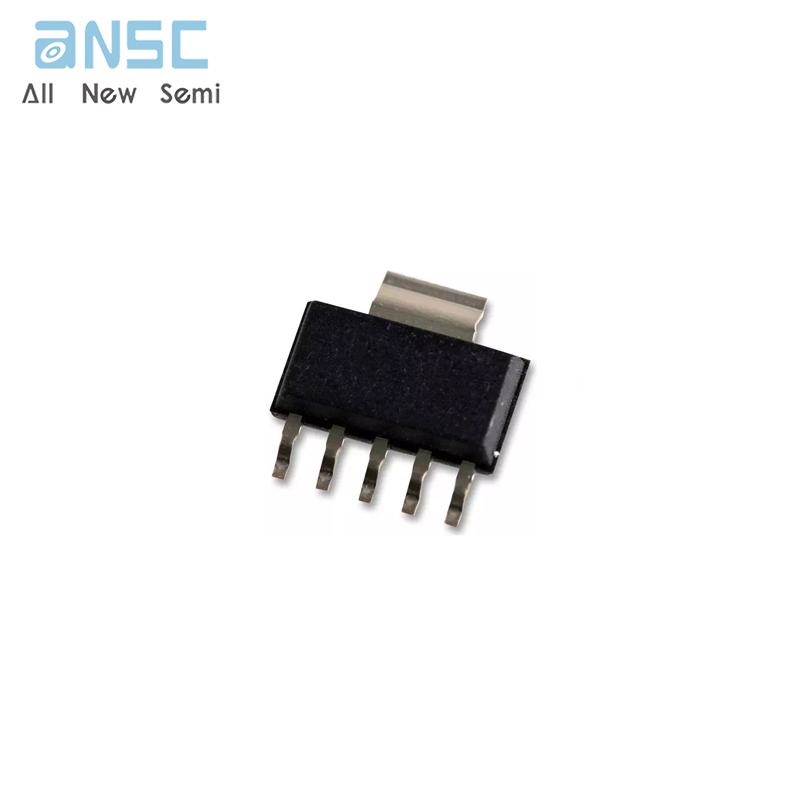

Hot-selling and scarce TPS79601DCQR Ultralow-Noise High PSRR Fast RF 1A Low-Dropout Linear Regulators SOT223-6 spot stock

Product Descriptions

​

The TPS796xx family of low-dropout (LDO) low-power linear voltage regulators features high power supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, 3 x 3 SON, SOT223-6, and 5-pin DDPAK packages. Each device in the family is stable with a small 1-µF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (e.g., 250 mV at 1 A).

Each device achieves fast start-up times (approximately 50 µs with a 0.001-µF bypass capacitor) while consuming very low quiescent current (265 µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 µA. The TPS79630 exhibits approximately 40 µVRMS of output voltage noise at 3.0-V output, with a 0.1-µF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features, and the fast response time.

Product Features

• 1-A Low-Dropout Regulator With Enable

• Available in 1.8-V, 2.5-V, 2.8-V, 3-V, 3.3-V, and Adjustable (1.2-V to 5.5-V)

• High PSRR (53 dB at 10 kHz)

• Ultralow-Noise (40 µVRMS, TPS79630)

• Fast Start-Up Time (50 µs)

• Stable With a 1-µF Ceramic Capacitor

• Excellent Load/Line Transient Response

• Very Low Dropout Voltage (250 mV at Full Load, TPS79630)

• 3 x 3 SON, 6-Pin SOT223-6, and 5-Pin DDPAK Packages

Product Applications

• RF: VCOs, Receivers, ADCs

• Audio

• Bluetooth™, Wireless LAN

• Cellular and Cordless Telephones

• Handheld Organizers, PDAs

Product Specification

Product Photos

For more product information, please download the PDF
