Hot-selling and scarce ZY7007LG-T2 7A DC-DC Intelligent POL 3V to 14V Input - 0.5V to 5.5V Output spot stock

Product Descriptions

The ZY7007 is an intelligent, fully programmable step-down point-of-load DC-DC module integrating digital power  conversion and intelligent power management. When used with ZM7000 Series Digital Power Managers, the  ZY7007 completely eliminates the need for external components for sequencing, tracking, protection, monitoring,  and reporting. All parameters of the ZY7007 are programmable via the industry-standard I2 C communication bus  and can be changed by a user at any time during product development and service.

Product Features

• RoHS lead free and lead-solder-exempt products are available

• Wide input voltage range: 3V–14V

• High continuous output current: 7A

• Wide programmable output voltage range: 0.5V–5.5V

• Active digital current share

• Single-wire serial communication bus for frequency synchronization, programming, and monitoring

• Optimal voltage positioning with programmable slope of the VI line

• Overcurrent, overvoltage, undervoltage, and overtemperature protections with programmable thresholds and types

• Programmable fixed switching frequency 0.5-1.0MHz

• Programmable turn-on and turn-off delays

• Programmable turn-on and turn-off voltage slew rates with tracking protection

• Programmable feedback loop compensation

• Power Good signal with programmable limits

• Programmable fault management

• Start up into the load pre-biased up to 100%

• Full rated current sink

• Real time voltage, current, and temperature measurements, monitoring, and reporting

• Small footprint SMT package: 12.5x22.2mm

• Extremely low profile of 6.5mm

• Compatible with conventional pick-and-place equipment

• Wide operating temperature range

• UL60950 recognized, CSA C22.2 No. 60950-00 certified, and TUV EN60950-1:2001 certified

Product Applications

• Low voltage, high density systems with Intermediate Bus Architectures (IBA)

• Point-of-load regulators for high performance DSP, FPGA, ASIC, and microprocessor applications

• Desktops, servers, and portable computing

• Broadband, networking, optical, and communications systems

• Active memory bus terminators

Product Specification

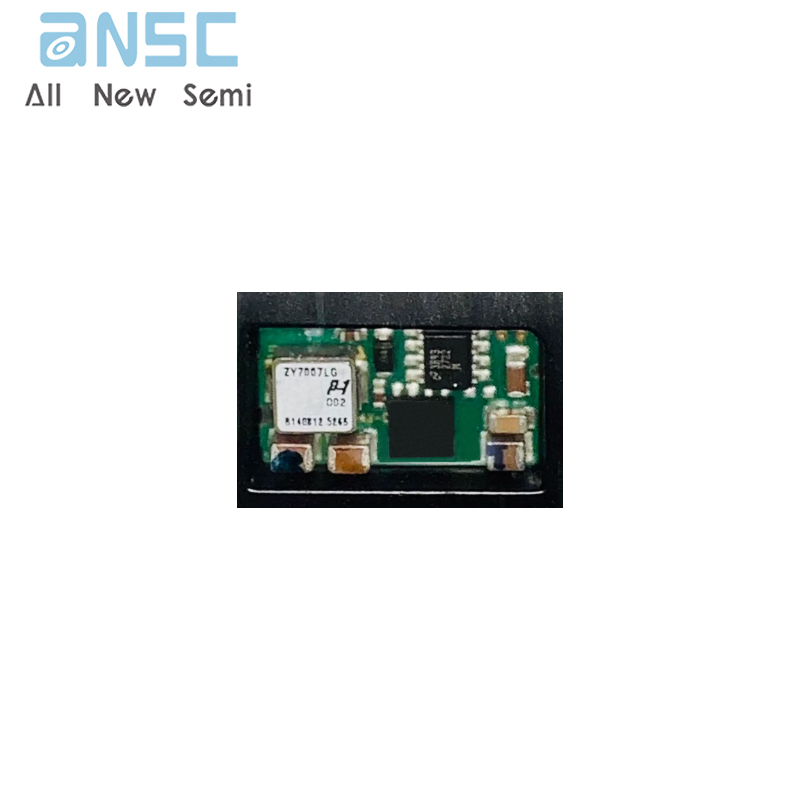

Product Photos

、

For more product information, please download the PDF
