Hot-selling and scarce TLV803SDBZR 3-Pin Voltage Supervisors with Active-Low, Open-Drain Reset SOT23 spot stock

Product Descriptions

The TLV803 family of supervisory circuits provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems.

The TLV803 and TLV863 are functionally equivalent. The TLV863 provides an alternate pinout of the TLV803.

During power-on, RESET asserts when the supply voltage (VDD) becomes greater than 1.1 V.Thereafter, the supervisory circuit monitors VDD and keeps RESET active as long as VDD remains below the threshold voltage VIT. An internal timer delays the return of the output to the inactive state (high) to ensure proper system reset. The delay time (td(typ) =200 ms) starts after VDD has risen above the threshold voltage, VIT. When the supply voltage drops below the VIT threshold voltage, the output becomes active (low) again. All the devices in this family have a fixed sense-threshold voltage (VIT) set by an internal voltage divider.

The product spectrum is designed for supply voltages of 2.5 V, 3 V, 3.3 V, and 5 V. The circuits are available in a 3-pin SOT-23 package. The TLV803 devices are characterized for operation over a temperature range of –40°C to +125°C.

Product Features

• 3-Pin SOT23 Package

• Supply Current: 9 µA (Typical)

• Precision Supply Voltage Monitor:2.5 V, 3 V, 3.3 V, 5 V

• Power-On Reset Generator with Fixed Delay Time of 200 ms

• Pin-for-Pin Compatible with MAX803

• Temperature Range: –40°C to +125°C

• Open-Drain, RESET Output

​

Product Applications

• DSPs, Microcontrollers, and Microprocessors

• Wireless Communication Systems

• Portable/Battery-Powered Equipment

• Programmable Controls

• Intelligent Instruments

• Industrial Equipment

• Notebook and Desktop Computers

• Automotive Systems

Product Specification

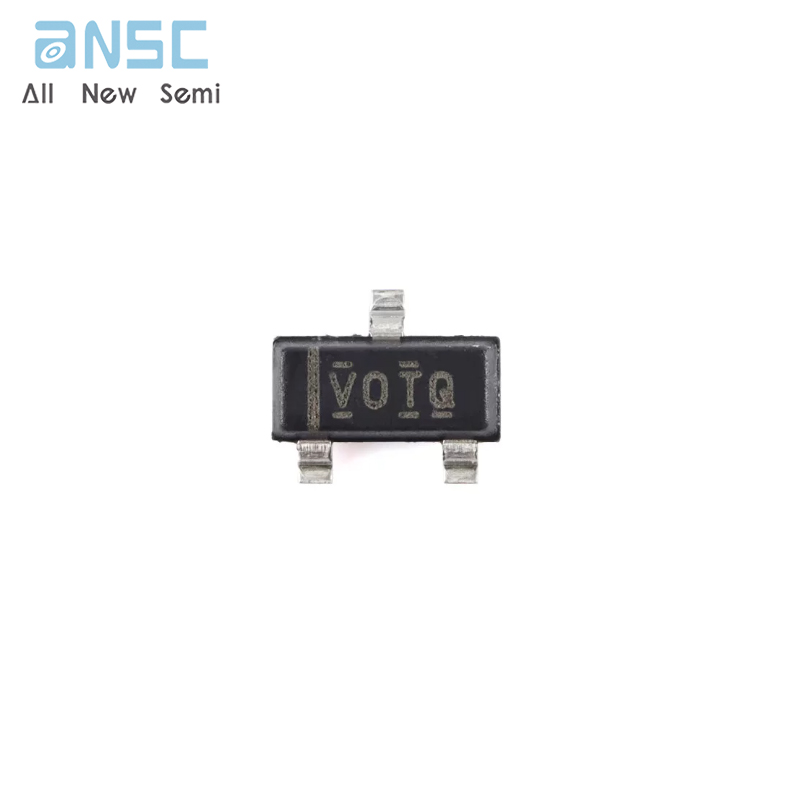

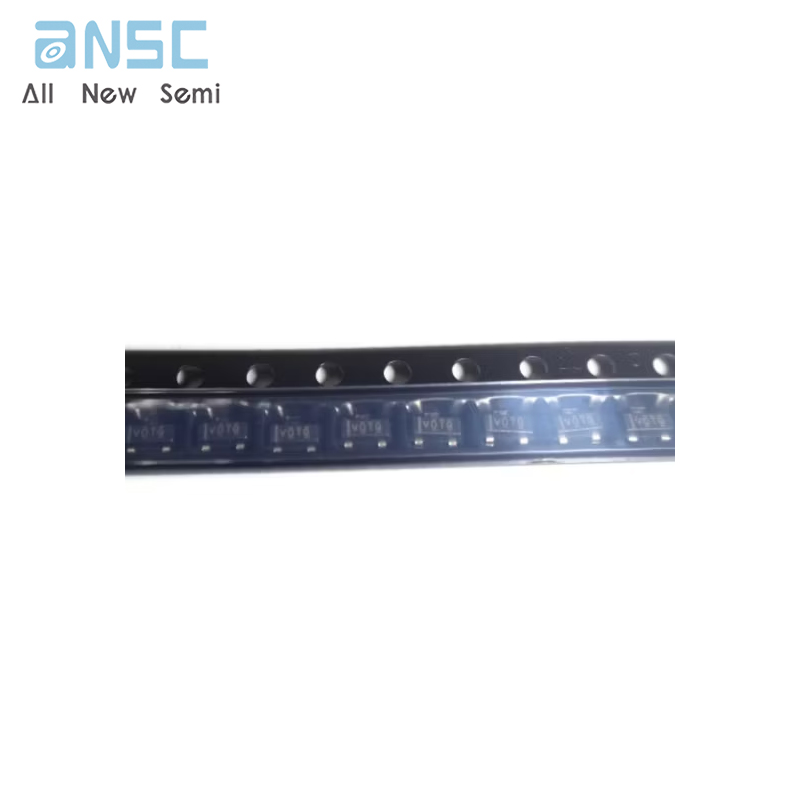

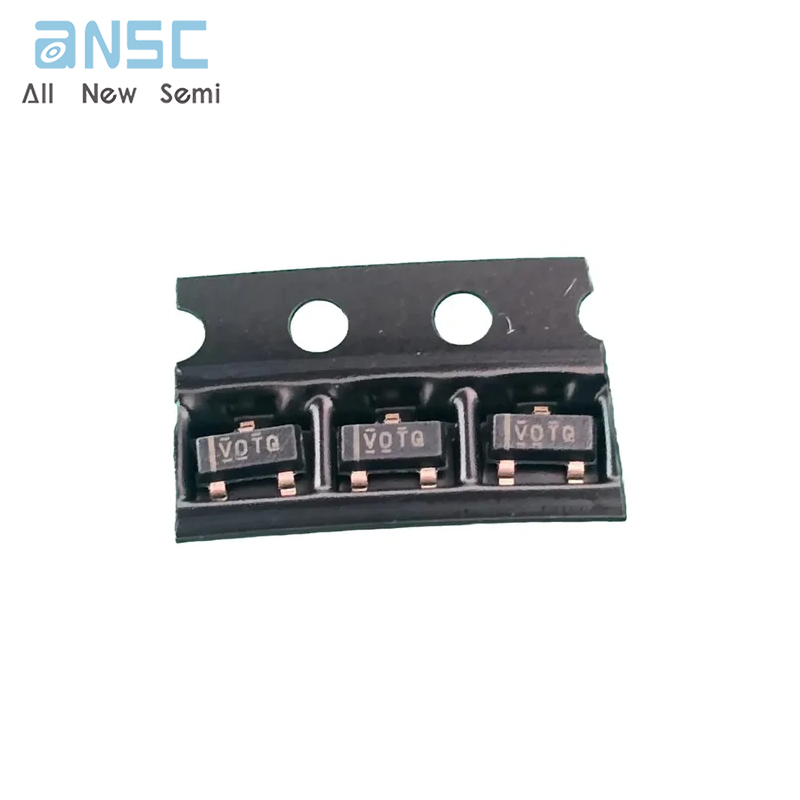

Product Photos

For more product information, please download the PDF
