Hot-selling and scarce MIC29302MU 3A Fast-Response LDO Regulator TO263 spot stock

Product Descriptions

The MIC29302 is a high-current, low-cost, low-dropout  voltage regulator which uses Micrel's proprietary Super  βeta PNP® process with a PNP pass element. The 3A  LDO regulator features 450mV (full load) dropout voltage  and very low ground current. Designed for high-current  loads, these devices also find applications in lower current,  low dropout-critical systems, where their dropout voltage  and ground current values are important attributes.

Along with a total accuracy of ±2% (over temperature, line  and load regulation) the regulator features very-fast  transient recovery from input voltage surges and output  load current changes.

The MIC29302 has an adjustable output which can be  set by two external resistors to a voltage between 1.24V to  15V. In addition, the device is fully protected against over  current faults, reversed input polarity, reversed lead  insertion, and overtemperature operation. A TTL logic  enable (EN) pin is available in the MIC29302 to  shutdown the regulator. When not used, the device can be  set to continuous operation by connecting EN to the input (IN). The MIC29302 is available in the standard and 5-pin  TO-263 and TO-220 packages with an operating junction temperature range of −40°C to +85°C.

Product Features

High-current capability

− 3A over full temperature range

Low-dropout voltage of 450mV at full load

Low ground current

Accurate 1% guaranteed tolerance

Extremely-fast transient response

Zero-current shutdown mode

Error flag signals output out-of-regulation

Adjustable output voltage

Packages: TO263-5 and TO220-5

Product Applications

Processor peripheral and I/O supplies

High-efficiency “Green” computer systems

Automotive electronics

High-efficiency linear lower supplies

Battery-powered equipment

PC add-in cards

High-efficiency lost-regulator for switching supply

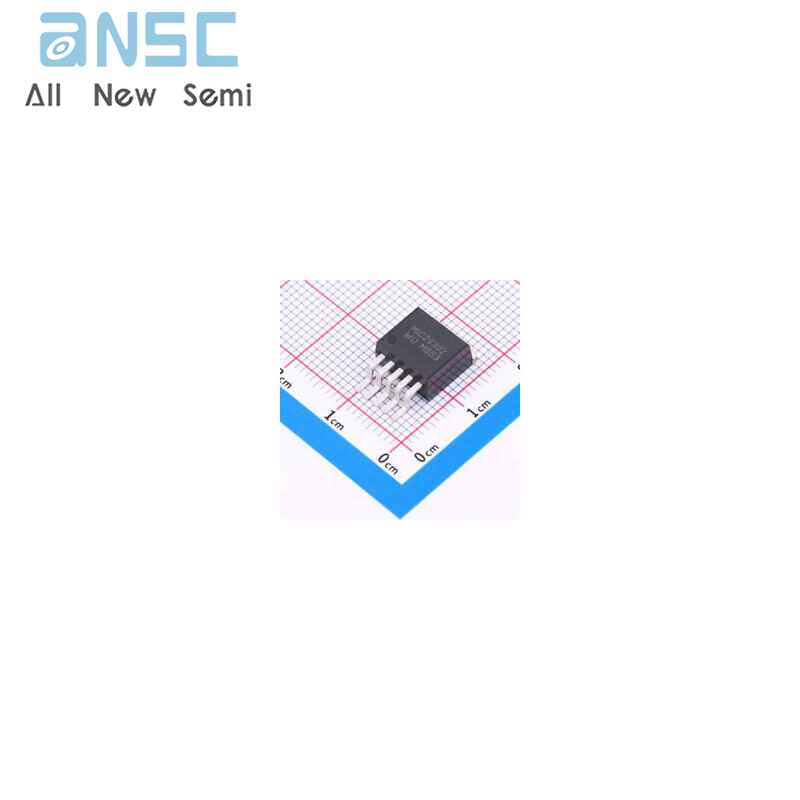

Product Photos

For more product information, please download the PDF
