Hot-selling and scarce CY7C68013A-100AXI High-Speed USB Peripheral Controller TQFP100 spot stock

​Product Features

■ USB 2.0 USB IF Hi-Speed certified (TID # 40460272)

■ Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor

■ Fit-, form-, and function-compatible with the FX2

❐ Pin-compatible0

❐ Object-code-compatible

❐ Functionally compatible (FX2LP is a superset)

■ Ultra-low power: ICC no more than 85 mA in any mode

❐ Ideal for bus- and battery-powered applications

■ Software: 8051 code runs from:

❐ Internal RAM,which is downloaded through USB

❐ Internal RAM, which is loaded from EEPROM

❐ External memory device (128-pin package)

■ 16 KB of on-chip code/data RAM

■ Four programmable BULK, INTERRUPT, and ISOCHRONOUS endpoints

❐ Buffering options: Double, triple, and quad

■ Additional programmable (BULK/INTERRUPT) 64-byte endpoint

■ 8-bit or 16-bit external data interface

■ Smart media standard ECC generation

■ GPIF™ (general programmable interface)

❐ Enables direct connection to most parallel interfaces

❐ Programmable waveform descriptors and configuration registers to define waveforms

❐ Supports multiple ready (RDY) inputs and control (CTL) outputs

■ Integrated, industry-standard, enhanced 8051

❐ 48-MHz, 24-MHz, or 12-MHz CPU operation

❐ Four clocks per instruction cycle

❐ Two USARTs

❐ Three counter/timers

❐ Expanded interrupt system

❐ Two data pointers

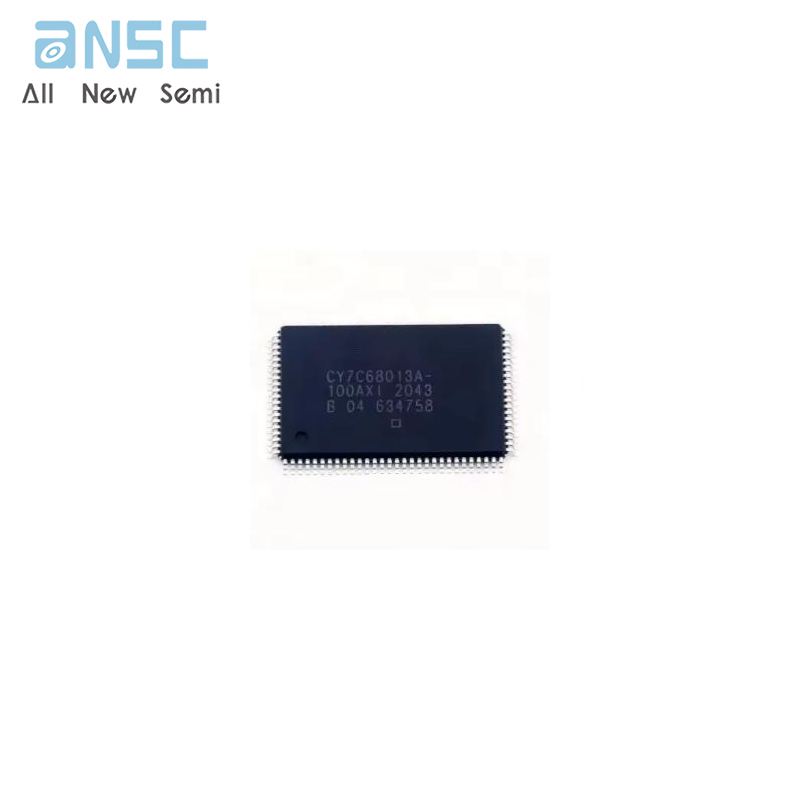

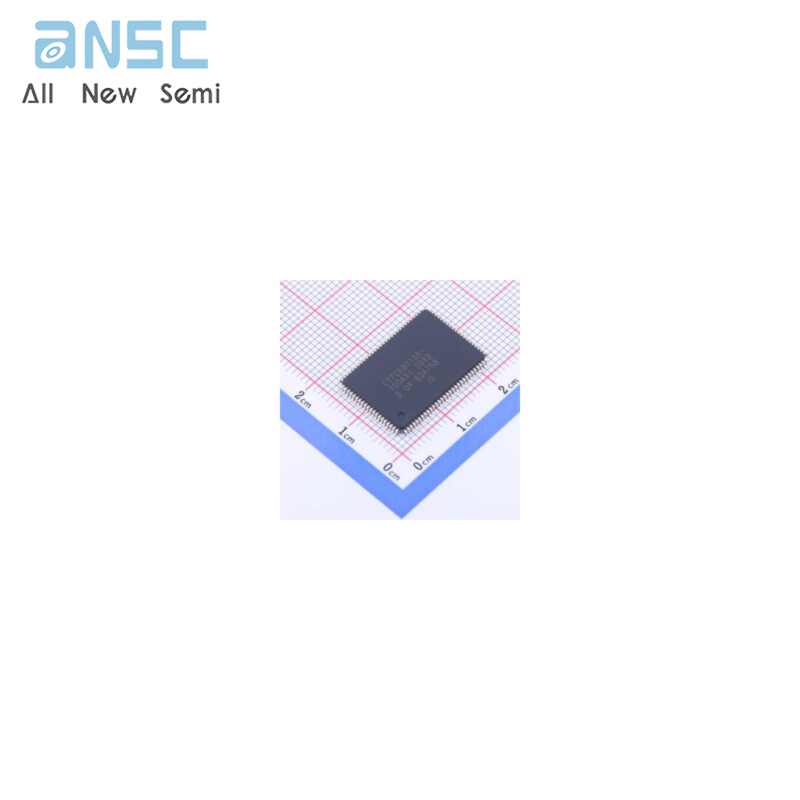

Product Photos

For more product information, please download the PDF
