Spot sales of TCP-2-10+ Power Splitter/Combiner SMD
Manufacturer Product Number
TCP-2-10+
Description
TCP-2-10+ Power Splitter/Combiner SMD
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• low insertion, 0.5 dB typ.
• excellent amplitude unbalance, 0.1 dB typ.
• very good phase unbalance, 1.0 deg. typ.
• external resistor & capacitor required
• aqueous washable
• leads for excellent solderability
• low cost
Product Applications
• cellular
• VHF/UHF
• communications systems
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TCP-2-10+ |
| Category | RF and Wireless |
| RF Power Dividers/Splitters | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Insertion Loss | 0.5dB |
| Frequency | 5 MHz ~ 1 GHz |
| Specifications | Isolation (Min) 17dB, 6° Imbalance (Max) |
| Size / Dimension | - |
| Package / Case | 6-SMD, Flat Leads |

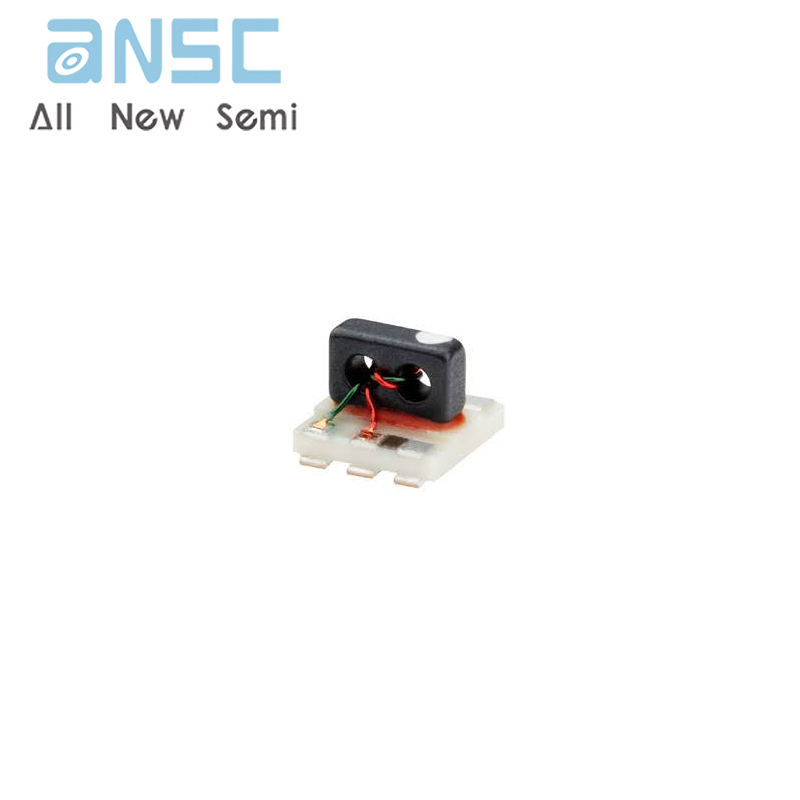

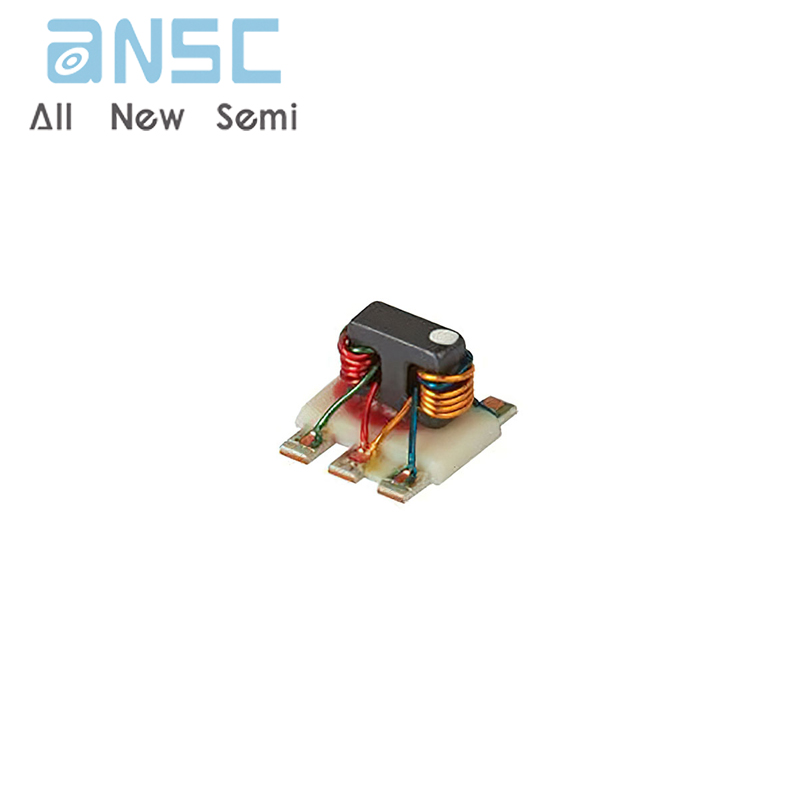

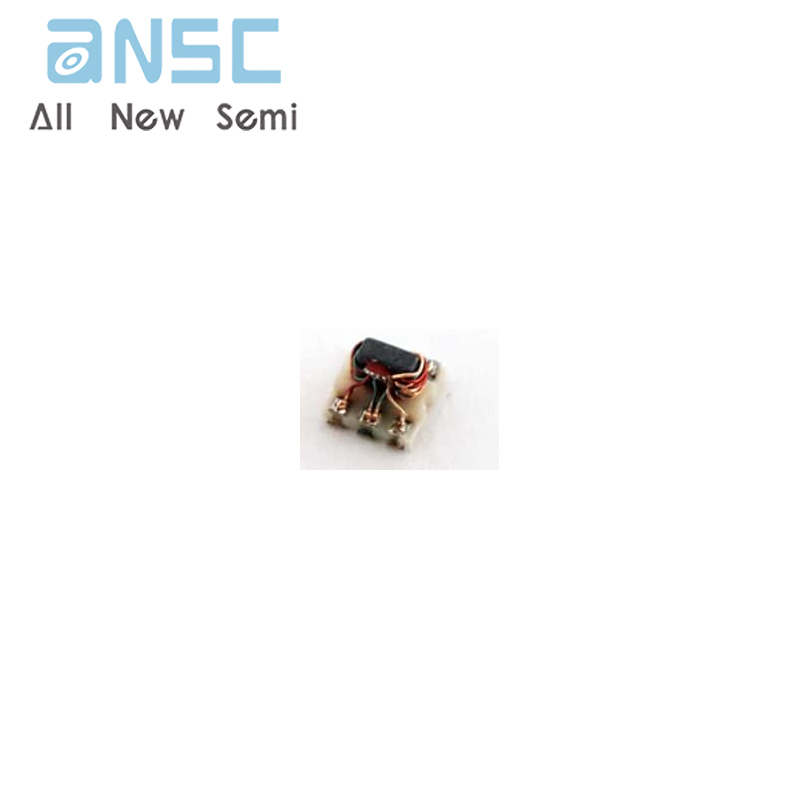

Product Photos
For more product information, please download the PDF
