Hot-selling and scarce BCM56321B1IFSBG 12 GIGABIT + 1 10-GIGABIT SWITCHING PROCESSOR BGA spot stock

Product Descriptions

• Complete switch on a chip integrates 12 10/100/1000 and one 10G Ethernet Media Access Controllers (MACs) supporting RMII, GMII, XGMII and TBI interfaces, including multi-layer forwarding and filtering logic and internal ARL tables and packet buffering.

• Supports 32K internal MAC addresses, which are shared by all ports. Multicast MAC addresses, including IP multicast, can also be stored and

searched.

• Supports Quality of Service (QoS). Each output port has four priority queues and their assignment can be based on DiffServ TOS field or the 802.1p priority field.

• Filters and forwards traffic at full wire speed on all 13 ports at all layers of functionality. This equates to 44 Gbps of bandwidth.

• Provides a mechanism to bundle together up to 12 ports at the same speed to form a port bundle or a trunk group, establishing up to six trunk ports.

Product Features

• Supports 12 Gigabit ports and one 10-Gigabit uplink in wirespeed operation

• Gigabit ports support TBI (1000BASE-X) or GMII (1000BASE-T) interfaces

• Uplink supports XGMII interface for 10-Gigabit

• L2 search table supports 32K MAC addresses

• Jumbo Frame support (9 KB)

• Supports 4K VLAN address and 802.1s Multiple Spanning Tree protocol

• Supports 802.1p and/or DiffServ with four priority queues

• Supports 802.3ad link aggregation control protocol (LACP) and marker protocol

• Supports selected MIB groups in RMON and SMON

• Supports up to 32K IP multicast groups with the option to cross VLAN boundaries

• Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure

• Built in 32-bit, 33-MHz PCI bus interface

• Flexible multiplexer modes

• Packaged in 785-pin BGA

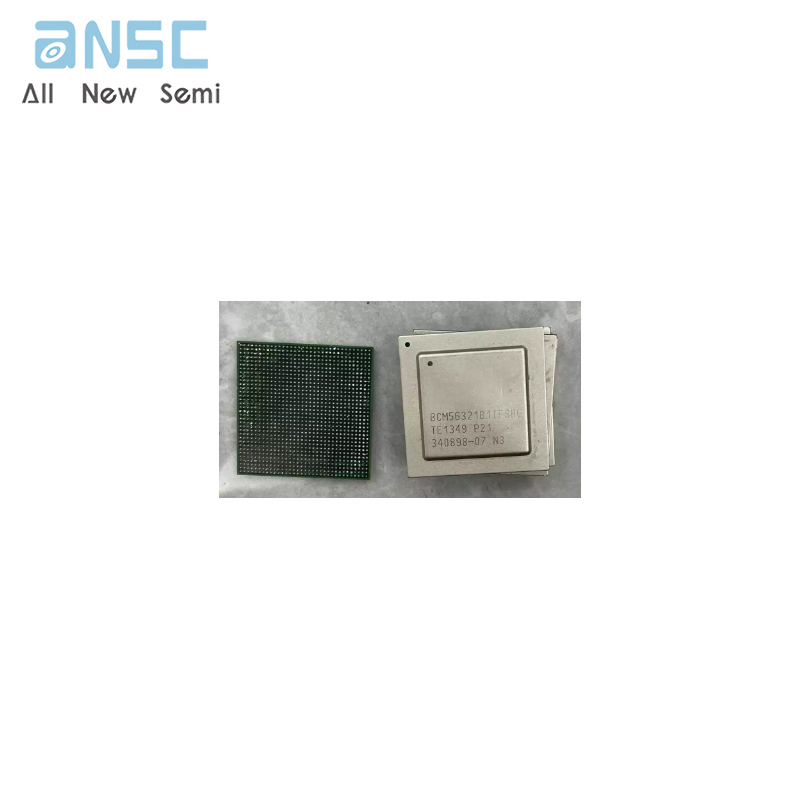

Product Photos

For more product information, please download the PDF
