Hot-selling and scarce M74HC4024B1 7 STAGE BINARY COUNTER DIP14 spot stock

Product Descriptions

The M54/74HC4024 is a high speed CMOS 7- STAGE BINARY COUNTER fabricated in silicon gate C2 MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The HC4024 is a 7 stage Counter. This devices is incremented on the falling edge (negative transition) of the input clock, and all its outputs are reset toa low level by applying a logical high on their reset input. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

Product Features

. HIGH SPEED

tPD = 13 ns (TYP.) AT VCC =5V

. LOW POWER DISSIPATION

ICC = 4 µA (MAX.) AT TA = 25° C

. HIGH NOISE IMMUNITY

VNIH = VNIL = 28 % VCC (MIN.)

. OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

. SYMMETRICAL OUTPUT IMPEDANCE

|IOH|= IOL = 4 mA (MIN.)

. BALANCED PROPAGATION DELAYS

tPLH = tPHL

. WIDE OPERATING VOLTAGE RANGE

VCC (OPR) = 2 V TO 6 V

. PIN AND FUNCTION COMPATIBLE WITH 4024B

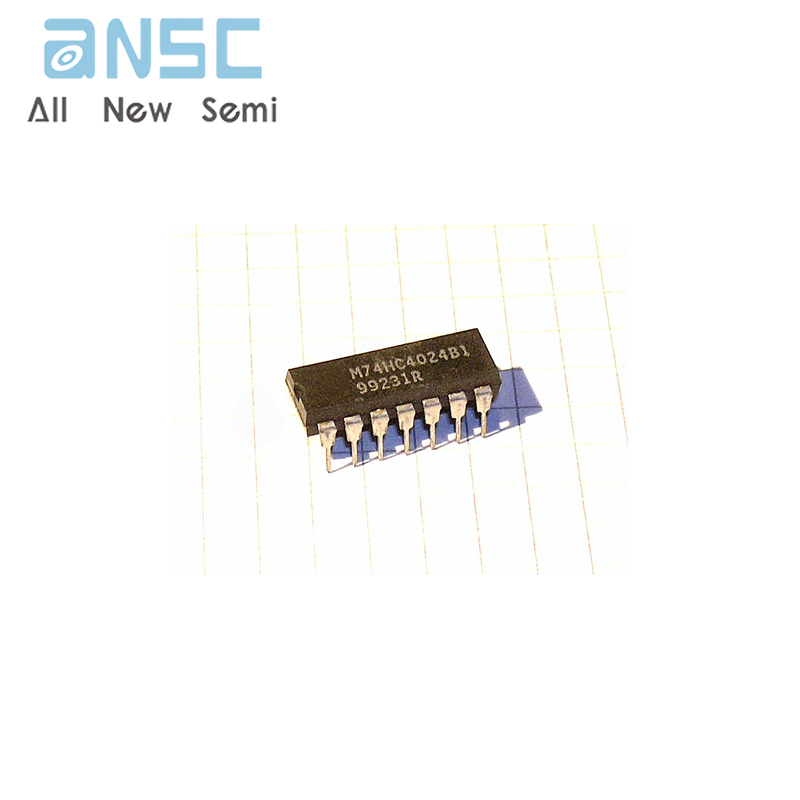

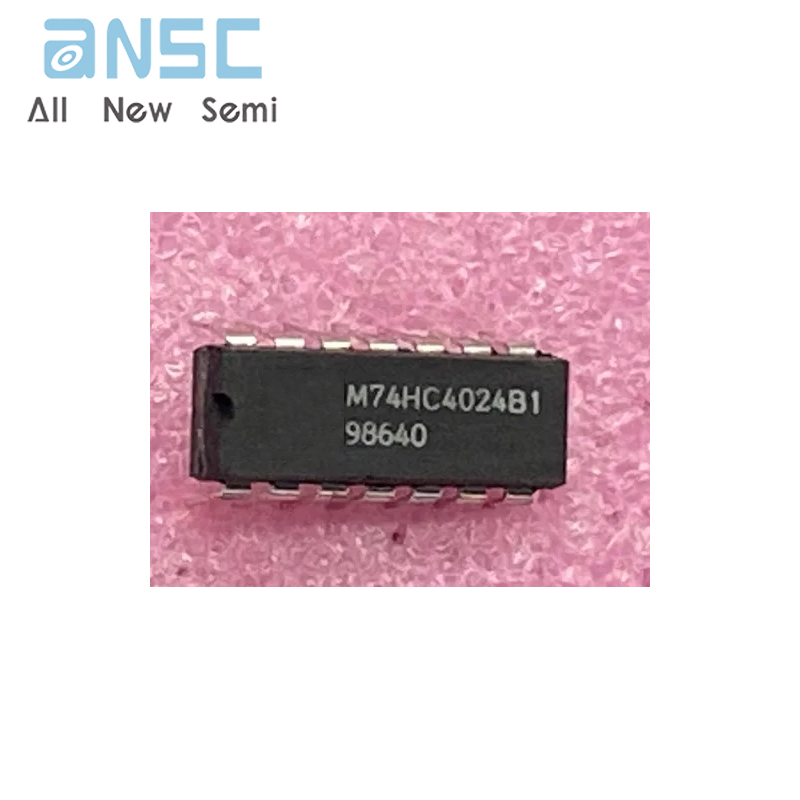

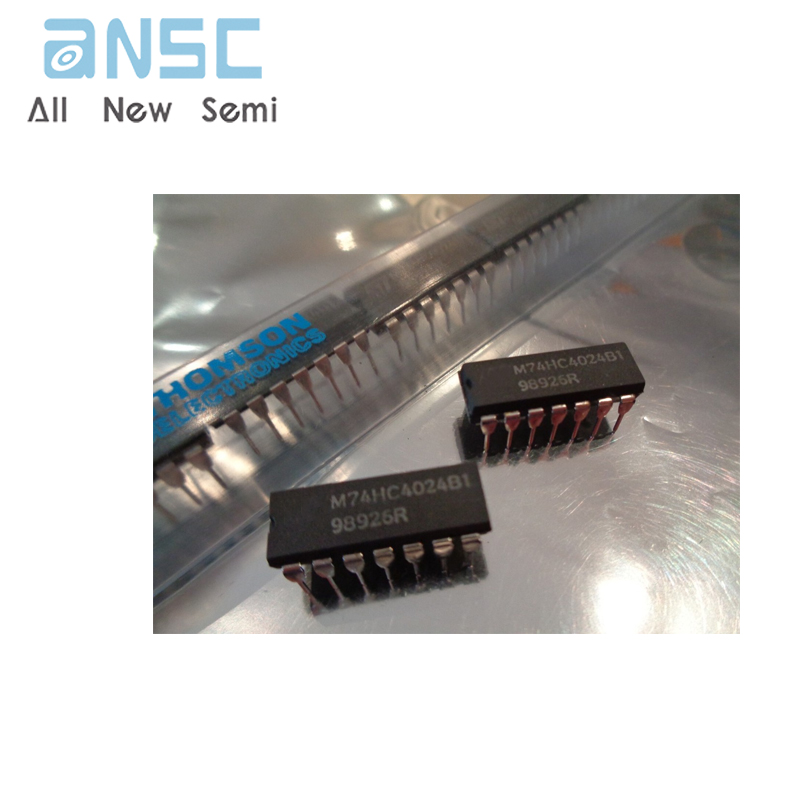

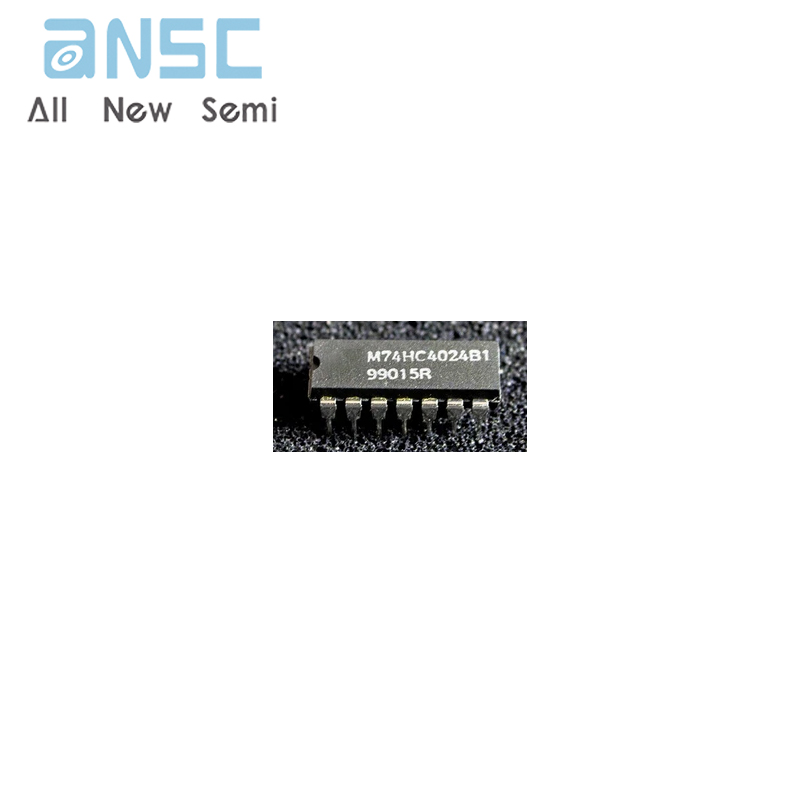

Product Photos

、

For more product information, please download the PDF
