Hot-selling and scarce PEB2255HV1.3 E1/T1/J1 Framer and Line Interface Component for Long and Short Haul Applications QFP

Product Descriptions

The FALC®-LH framer and line interface component is designed to fulfill all required interfacing between an analog E1/T1/J1 line and the digital PCM system highway, H.100 or H-MVIP bus for world market telecommunication systems.

Due to its multitude of implemented functions, it fits to a wide range of networking applications and fulfills the according international standards. The FALC®-LH offers a generic E1/T1/J1 analog line interface without the need to change external components. Optional crystal-less jitter attenuation reduces the amount of required external components.

Equipped with a flexible microprocessor interface, it connects to any control processor environment. A standard boundary scan interface is provided to support board level testing. Flat pack device packaging, small number of external components and low power consumption lead to reduced overall system costs.

Other members of the FALC® family are the FALC®54 for short haul applications, the FALC®56 for long haul and short haul applications as well as the QuadFALCTM supplying four long haul and short haul interfaces on one single chip.

Product Features

• High density, generic interface for all E1/T1/J1 applications

• Analog receive and transmit circuitry for long haul and short haul applications

• Data and clock recovery using an integrated digital phase locked loop

• Maximum line attenuation up to -43 dB at 1024 kHz (E1) and up to -36 dB at 772 kHz (T1/J1)

• Programmable transmit pulse shapes for E1 and T1/J1 pulse masks

• Programmable line build-out for CSU signals according to ANSI T1.403 + FCC68 in steps of 0 dB, -7.5 dB, -15 dB and -22.5 dB (T1/J1)

• Low transmitter output impedances for high transmit return loss

• Tristate function of the analog transmit line outputs

• Transmit line monitor protecting the device from damage

• Jitter specifications of ITU-T I.431, G.703, G.736 (E1), G.823 (E1) and AT&T TR62411 (T1/J1) are met

• Optional crystal-less wander and jitter attenuation/compensation

• Dual rail or single rail digital inputs and outputs

• Unipolar NRZ or CMI coding for interfacing fibre optical transmission routes

• Selectable line codes (E1: HDB3, AMI - T1/J1: B8ZS, AMI with ZCS) for analog interface

• Loss of signal indication with programmable thresholds according to ITU-T G.775 and ETS300233 (E1)/ANSI T1.403, T1.231(T1/J1)

• Clock generator for jitter free system/transmit clocks

• Local loop and remote loop for diagnostic purposes

• Only one type of transformer (ratio 1: ) for E1 75/120 2 Ω and T1/J1 100/110 Ω

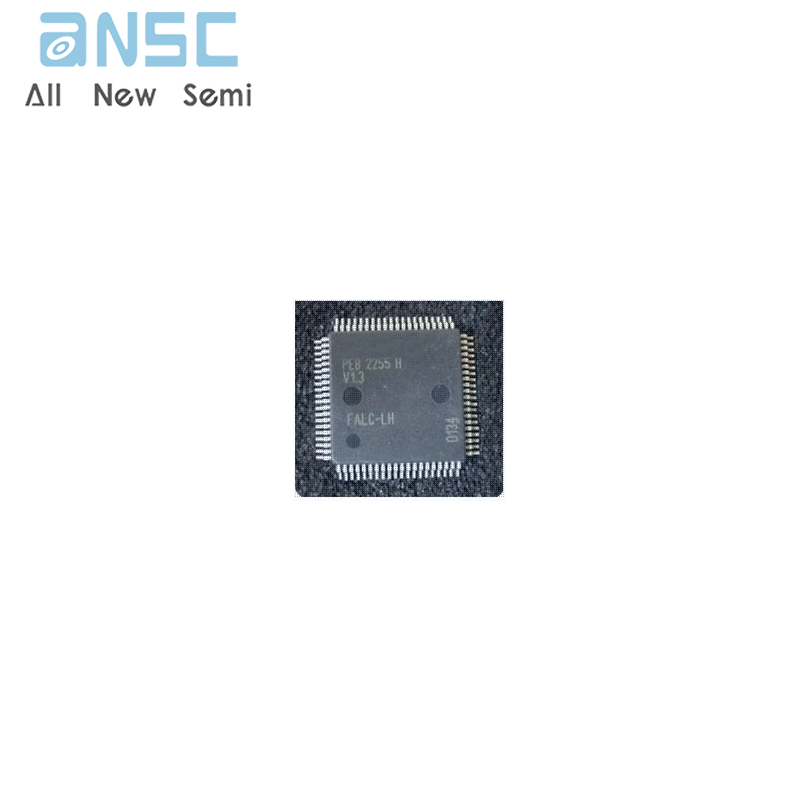

Product Photos

For more product information, please download the PDF
