Hot-selling and scarce LCMXO2-640HC-4TG100C Field Programmable Gate Array IC QFP100 spot stock

​Product Features

 Flexible Logic Architecture

• Six devices with 256 to 6864 LUT4s and 18 to 334 I/Os

 Ultra Low Power Devices

• Advanced 65 nm low power process

• As low as 22 µW standby power

• Programmable low swing differential I/Os

• Stand-by mode and other power saving options

 Embedded and Distributed Memory

• Up to 240 kbits sysMEM™ Embedded Block RAM

• Up to 54 kbits Distributed RAM

• Dedicated FIFO control logic

 On-Chip User Flash Memory

• Up to 256 kbits of User Flash Memory

• 100,000 write cycles

• Accessible through WISHBONE, SPI, I2C and JTAG interfaces

• Can be used as soft processor PROM or as Flash memory

 Pre-Engineered Source Synchronous I/O

• DDR registers in I/O cells

• Dedicated gearing logic

• 7:1 Gearing for Display I/Os

• Generic DDR, DDRX2, DDRX4

• Dedicated DDR/DDR2/LPDDR memory with DQS support

 High Performance, Flexible I/O Buffer

• Programmable sysIO™ buffer supports wide range of interfaces:

– LVCMOS 3.3/2.5/1.8/1.5/1.2

– LVTTL

– PCI

– LVDS, Bus-LVDS, MLVDS, RSDS, LVPECL

– SSTL 25/18

– HSTL 18

– Schmitt trigger inputs, up to 0.5 V hysteresis

• I/Os support hot socketing

• On-chip differential termination

• Programmable pull-up or pull-down mode

Product Specification

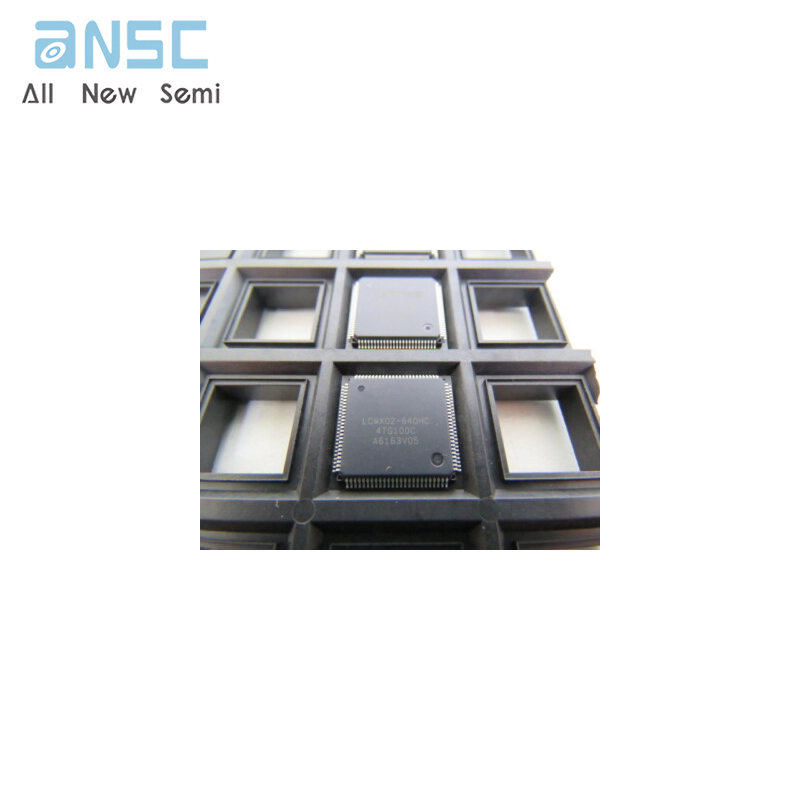

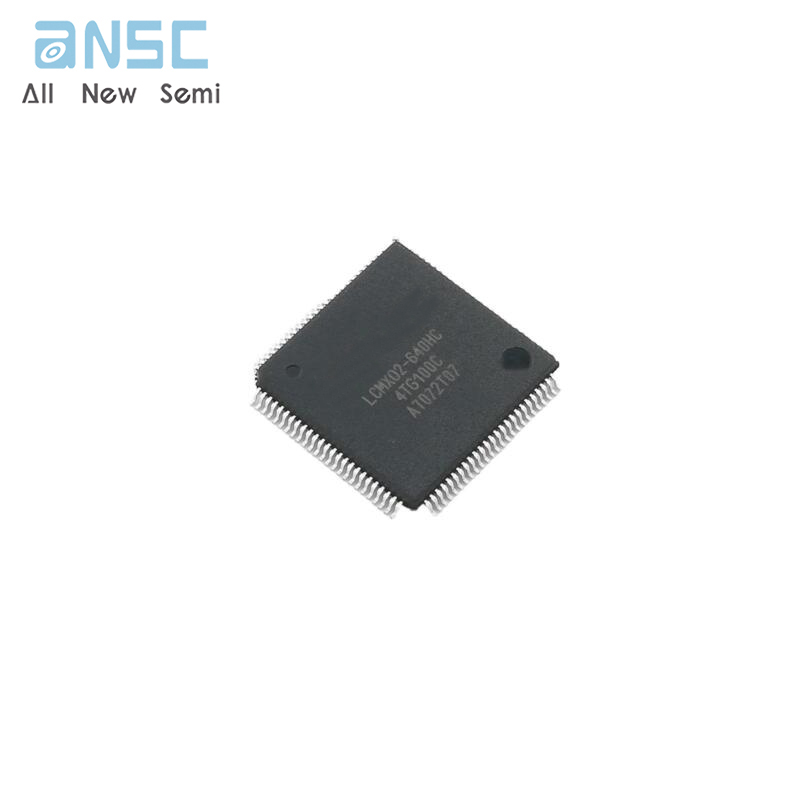

Product Photos

For more product information, please download the PDF
