Spot sales of MAX5980GTJ+ Quad, IEEE 802.3at/af PSE Controller TQFN-32
Manufacturer Product Number
MAX5980GTJ+
Description
MAX5980GTJ+ Quad, IEEE 802.3at/af PSE Controller TQFN-32
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MAX5980 is a quad, power-sourcing equipment (PSE) power controller designed for use in IEEE® 802.3at/af-compliant PSE. This device provides powered device (PD) discovery, classification, current limit, and load disconnect detection. The device supports both fully automatic operation and software programmability. The device also supports new 2-event classification and Class 5 for detection and classification of high-power PDs. The device supports single-supply operation, provides up to 70W to each port (Class 5 enabled), and still provides high-capacitance detection for legacy PDs.
The device features an I2C-compatible, 3-wire serial interface, and is fully software configurable and programmable. The device provides instantaneous readout of port current and voltage through the I2C interface. The device’s extensive programmability enhances system flexibility, enables field diagnosis, and allows for uses in other, nonstandard applications.
The device is available in a space-saving, 32-pin TQFN (5mm x 5mm) power package and is rated for the automotive (-40NC to +105NC) temperature range.
Product Features
S IEEE 802.3at/af Compliant
S 0.25I Current-Sensing Resistor
S Up to 70W per Port for PSE Applications
S 9-Bit Port Current and Voltage Monitoring
S I2C-Compatible, 3-Wire Serial Interface
S Supports Single-Supply Operation
S High-Capacitance Detection for Legacy Devices
S Supports DC Load-Removal Detections
S Space-Saving, 32-Pin TQFN (5mm x 5mm) Power Package
Product Applications
PSE-ICM
Power-Sourcing Equipment (PSE)
Switches/Routers
Midspan Power Injectors
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX5980GTJ+ |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Over Ethernet (PoE) Controllers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| Type | Controller (PSE) |
| Number of Channels | 4 |
| Power - Max | 70 W |
| Internal Switch(s) | No |
| Auxiliary Sense | No |
| Standards | 802.3at (PoE+), 802.3af (PoE) |
| Voltage - Supply | 32V ~ 60V |
| Current - Supply | 5mA |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
| Base Product Number | MAX5980 |

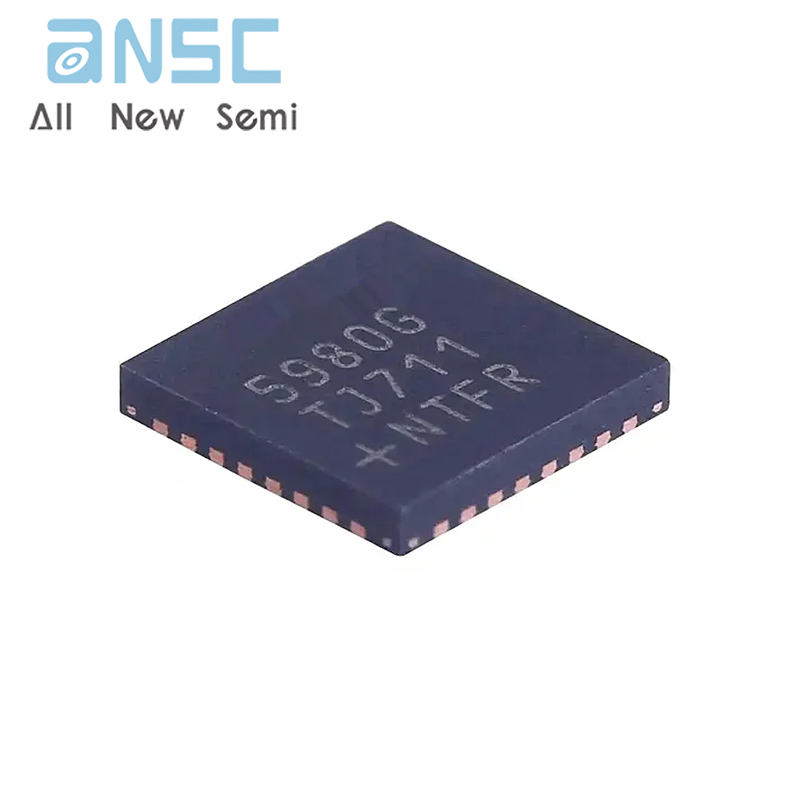

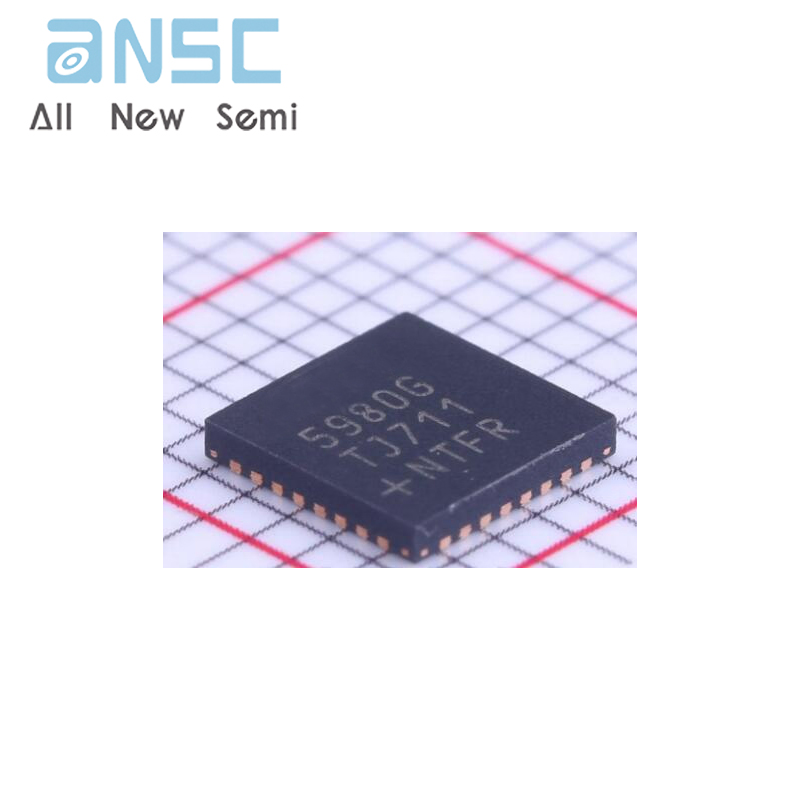

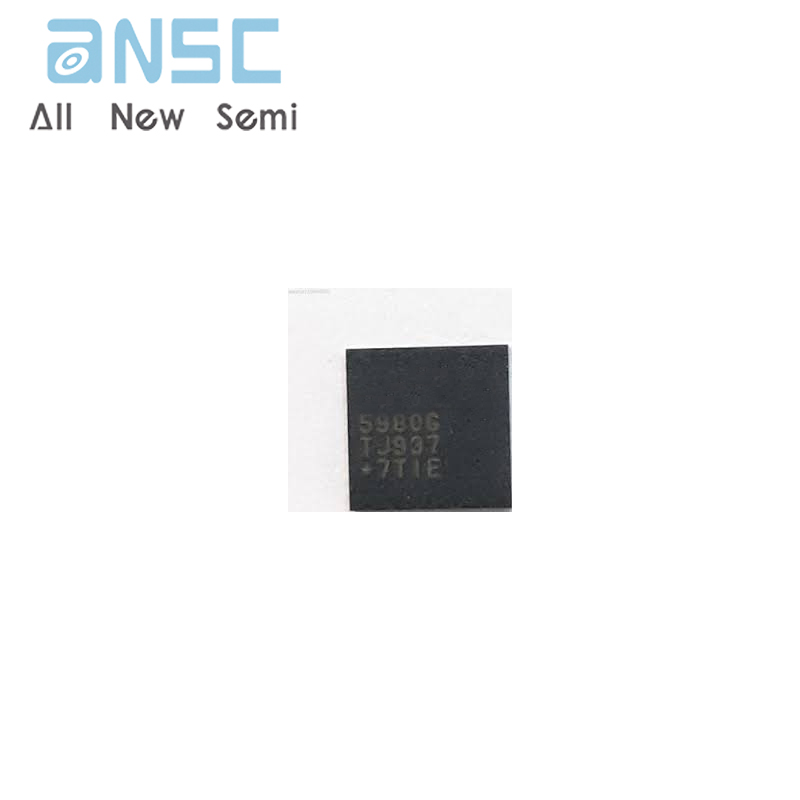

Product Photos
