Hot-selling and scarce SN74LVC1G04DCKR SINGLE INVERTER GATE SC70-5 spot stock
Manufacturer Product Number
SN74LVC1G04DCKR
Description

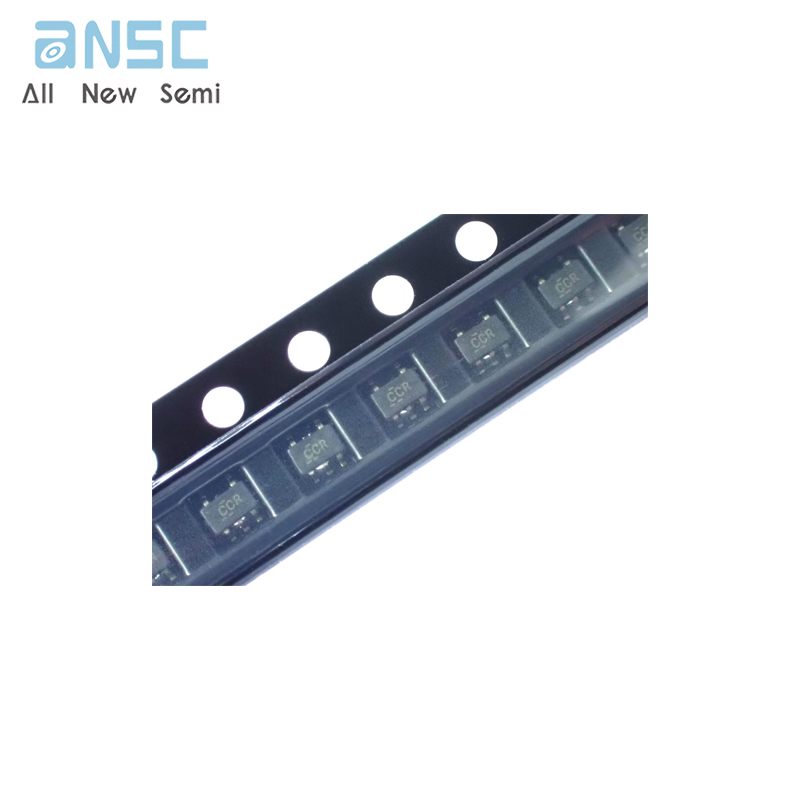

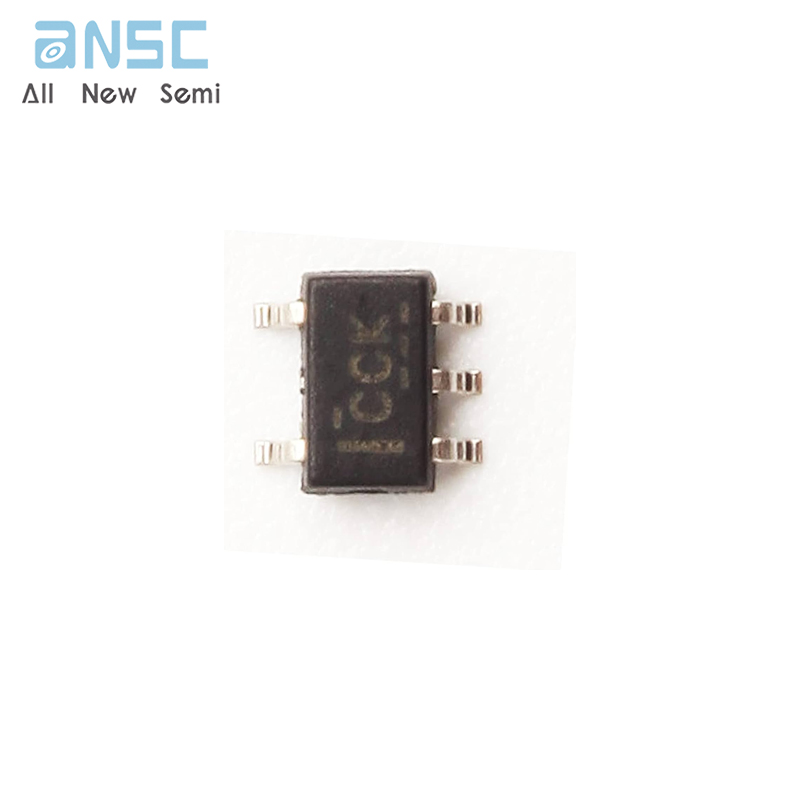

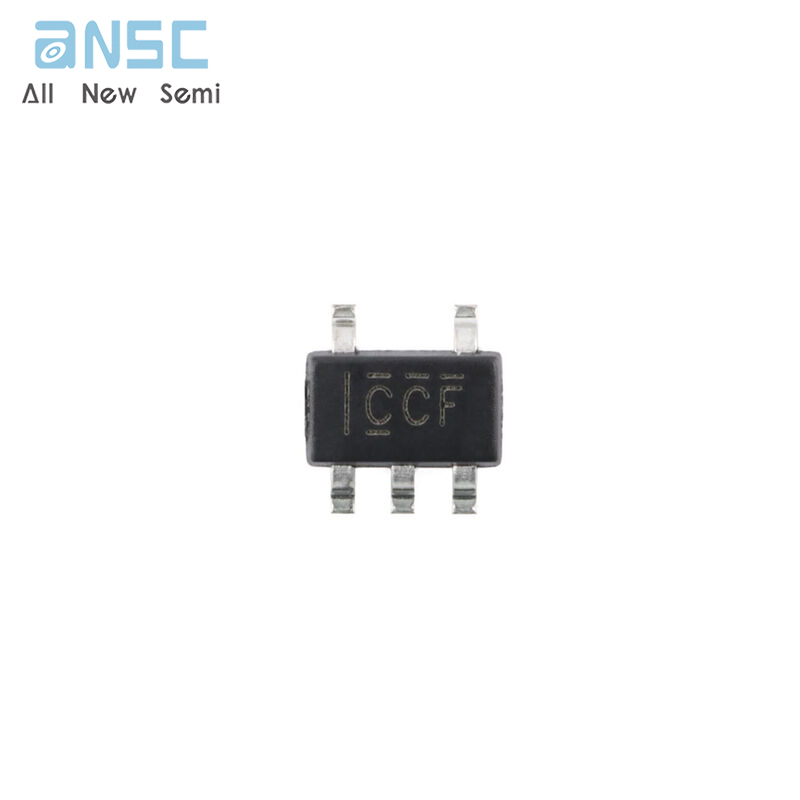

SN74LVC1G04DCKR SINGLE INVERTER GATE SC70-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This single inverter gate is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G04 performs the Boolean function Y = A.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Product Features
• Available in the Texas Instruments NanoFree™ Package
• Ioff Supports Partial-Power-Down Mode
• Supports 5-V VCC Operation Operation
• Inputs Accept Voltages to 5.5 V
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• Max tpd of 3.3 ns at 3.3 V
• Low Power Consumption, 10-µA Max ICC
• ±24-mA Output Drive at 3.3 V
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LVC1G04DCKR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74LVC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.58V ~ 1.65V |
| Input Logic Level - High | 1.07V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 3.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Base Product Number | 74LVC1G04 |
