Hot-selling and scarce SKY77629-13 Hybrid architecture separate GSM WCDMA paths QFN spot stock

Product Descriptions

The SKY77629 is a hybrid, multimode multiband (MMMB) Power  Amplifier Module (PAM) that supports 2.5G and 3G/4G handsets  and operates efficiently in GSM, EGPRS, EDGE, WCDMA, and LTE  modes. The PAM consists of: a GSM 800 / EGSM 900 PA block, a  DCS1800 / PCS1900 PA block, separate WCDMA blocks operating  in low and high bands, a logic control block for multiple power  control levels, and band enable functions in both cellular and  UMTS. RF I/O ports are internally matched to 50 Ω to minimize  the number of external components. Extremely low leakage  current maximizes handset standby time. The InGaP/GaAs die and  passive components are mounted on a multi-layer laminate  substrate and the assembly encapsulated in plastic overmold.​

Product Features

• Hybrid architecture: separate GSM, WCDMA paths

• 50 ohm input and output impedances, integrated DC blocking on all ports

• Separate single-ended GSM and WCDMA inputs and outputs

• CMOS-compatible, two-wire MIPI logic inputs (SCLK, SDATA)

• VCC stages for 2.5G can attach to battery or buck DC/DC

• Low capacitance VCC interface for 3G/4G supports Envelope  Tracking compatibility

• Small, low profile package:

- 7 mm x 5 mm x 0.9 mm

- 42-pad configuration 2.5G FEATURES:

- EGPRS Class 12 multi-slot operation

- Four RF POUT control levels using RFFE interface

- Linear PA with bias optimization for efficiency/linearity tradeoff in 8-PSK mode 3G FEATURES:

- WCDMA mode supports output power, bandwidth for bands I, II, III, IV, V, VIII (and sub-bands IX, X, XVIII, IXX, XXVI)  through an integrated band-select switch

- Digital bias optimization through RFFE interface for best  efficiency/linearity tradeoff

- Optimized for envelope tracking system 4G FEATURES:

- Optimized for Envelope Tracking system

- LTE supports output power bandwidth bands 1, 2, 3, 4, 5, 8 (and sub-bands 9, 10, 18, 19, 20, 26)

Product Applications

• Quad-band cellular handsets:

- Class 4 GSM850 / EGSM900

- Class 1 DCS1800 / PCS1900

- Class E2 GSM850 / EGSM900 / DCS1800 / PCS1900

- Class 12 multi-slot EGPRS

• Multiband 3G handsets

• WCDMA/ HSDPA/ HSUPA/ LTE-modulated handsets for Bands I, II, III, IV, V, VIII

Product Specification

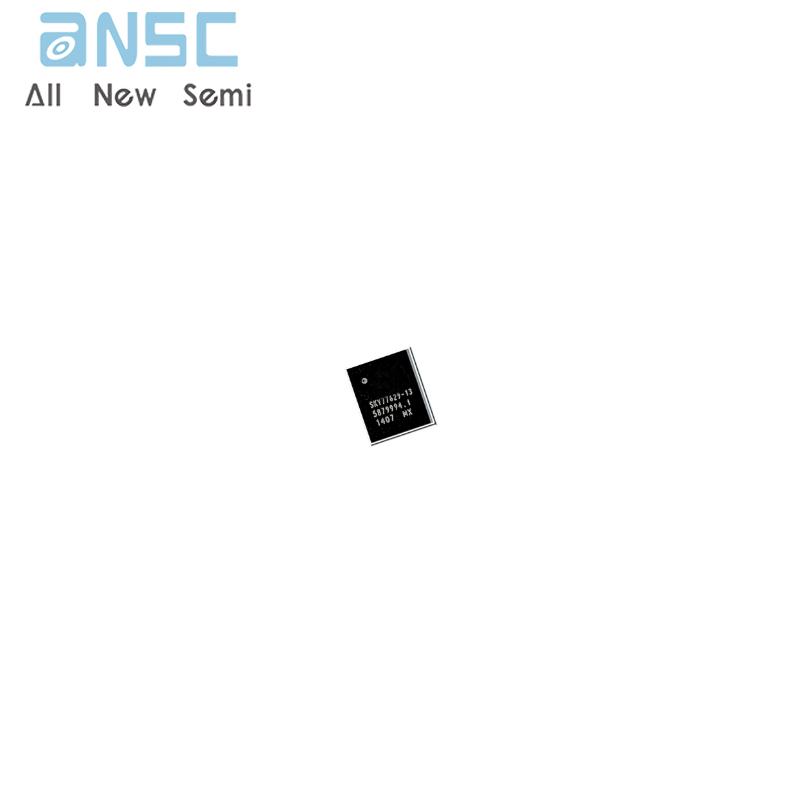

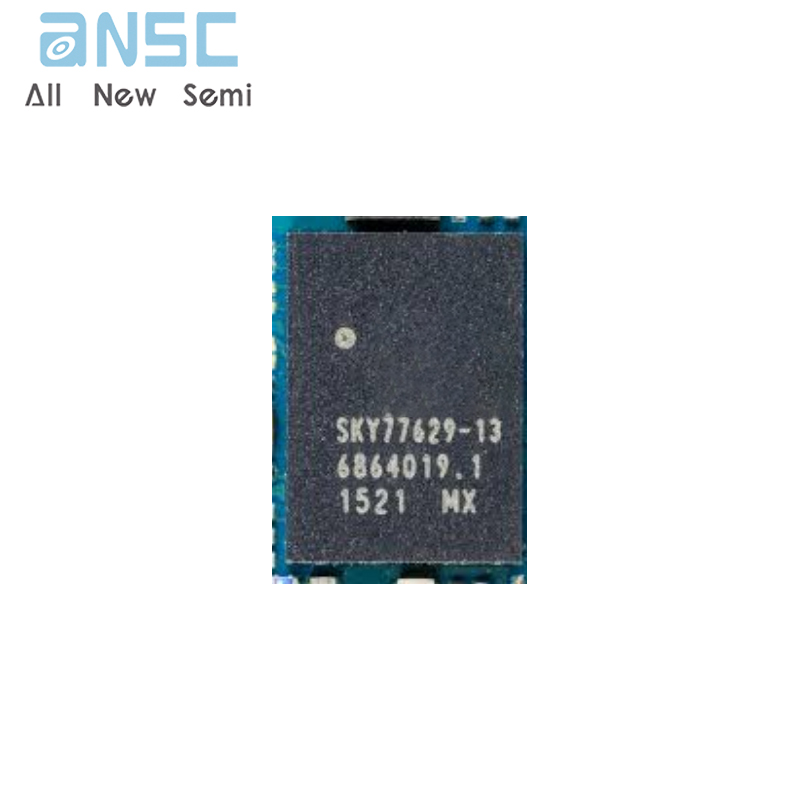

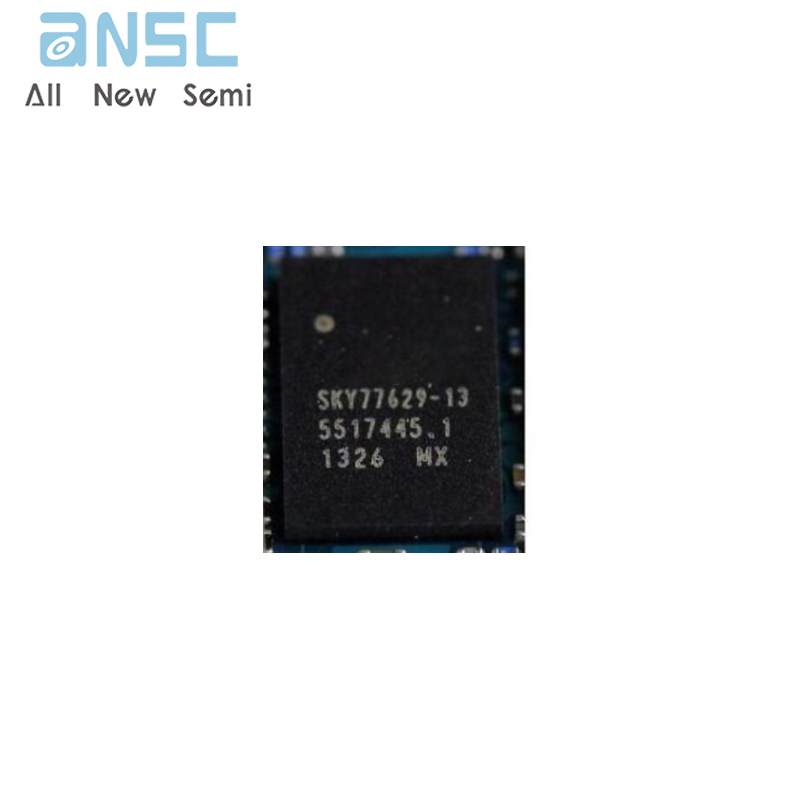

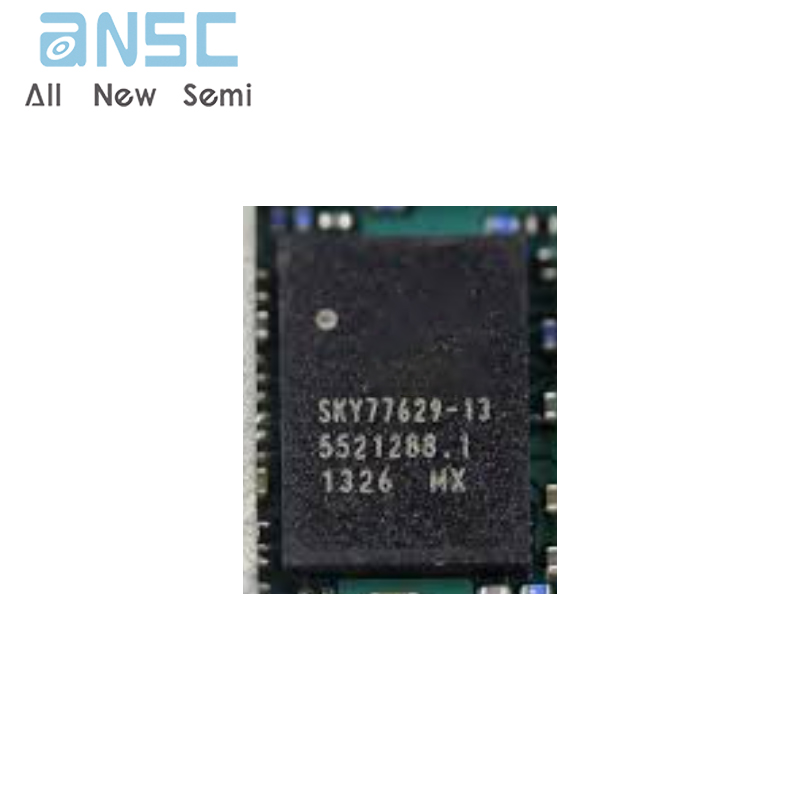

Product Photos

For more product information, please download the PDF
