Hot-selling and scarce TLV3492AID 1.8V Nanopower PUSH-PULL OUTPUT COMPARATOR SOP8 spot stock
Manufacturer Product Number
TLV3492AID
Description
TLV3492AID 1.8V, Nanopower, PUSH-PULL OUTPUT COMPARATOR SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TLV349x family of push-pull output comparators features a fast 6µs response time and < 1.2µA (max) nanopower capability, allowing operation from 1.8V – 5.5V. Input common-mode range beyond supply rails make the TLV349x an ideal choice for low-voltage applications.
Micro-sized packages provide options for portable and spacerestricted applications. The single (TLV3491) is available in SOT23-5 and SO-8. The dual (TLV3492) comes in SOT23-8 and SO-8. The quad (TLV3494) is available in TSSOP-14 and SO-14.
The TLV349x is excellent for power-sensitive, low-voltage (2-cell) applications.
Product Features
● VERY LOW SUPPLY CURRENT: 0.8µA (typ)
● INPUT COMMON-MODE RANGE 200mV BEYOND SUPPLY RAILS
● SUPPLY VOLTAGE: +1.8V to +5.5V
● HIGH SPEED: 6µs
● PUSH-PULL CMOS OUTPUT STAGE
● SMALL PACKAGES:
SOT23-5 (Single)
SOT23-8 (Dual)
Product Applications
● PORTABLE MEDICAL EQUIPMENT
● WIRELESS SECURITY SYSTEMS
● REMOTE CONTROL SYSTEMS
● HANDHELD INSTRUMENTS
● ULTRA-LOW POWER SYSTEMS
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLV3492AID |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 2 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (卤) | 1.8V ~ 5.5V |
| Voltage - Input Offset (Max) | 15mV @ 5.5V |
| Current - Input Bias (Max) | 10pA @ 5.5V |
| Current - Quiescent (Max) | 1.2µA |
| CMRR, PSRR (Typ) | 74dB CMRR, 69.12dB PSRR |
| Propagation Delay (Max) | 13.5µs |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TLV3492 |

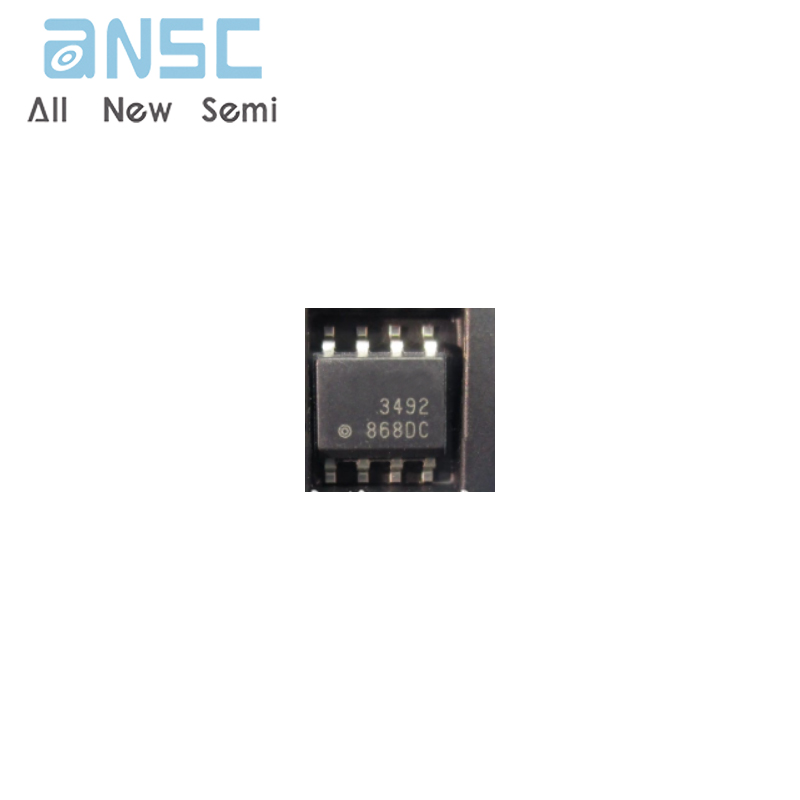

Product Photos
For more product information, please download the PDF
