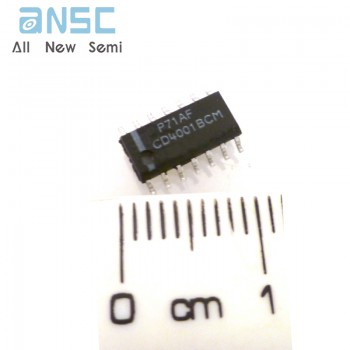

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Spot sales of CD4001BCM Quad 2-Input NOR Buffered B Series Gate . Quad 2-Input NAND Buffered B Series Gate SOP-14
Manufacturer Product Number
CD4001BCM
Description
CD4001BCM Quad 2-Input NOR Buffered B Series Gate . Quad 2-Input NAND Buffered B Series Gate SOP-14
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The CD4001BC and CD4011BC quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain.
All inputs are protected against static discharge with diodes to VDD and VSS.
Product Features
■ Low power TTL:
Fan out of 2 driving 74L compatibility: or 1 driving 74LS
■ 5V–10V–15V parametric ratings
■ Symmetrical output characteristics
■ Maximum input leakage 1 µA at 15V over full temperature range
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74AC139M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | Harris Corporation |
| Series | 74AC |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Decoder/Demultiplexer |
| Circuit | 1 x 2:4 |
| Independent Circuits | 2 |
| Current - Output High, Low | 24mA, 24mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74AC139 |
Product Photos
For more product information, please download the PDF
