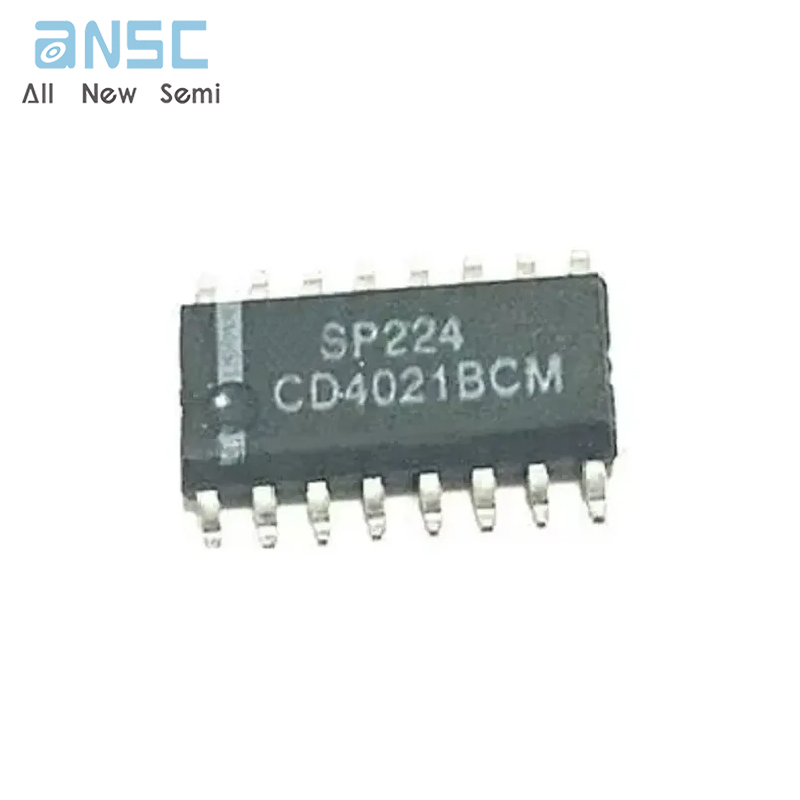

Hot-selling and scarce CD4021BCM 8-Stage Static Shift Register SOP16 spot stock
Manufacturer Product Number
CD4021BCM
Description
CD4021BCM 8-Stage Static Shift Register SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The CD4021BC is an 8-stage parallel input/serial output shift register. A parallel/serial control input enables individual JAM inputs to each of 8 stages. Q outputs are available from the sixth, seventh, and eighth stages. All outputs have equal source and sink current capabilities and conform to standard “B” series output drive.
When the parallel/serial control input is in the logical “0” state, data is serially shifted into the register synchronously with the positive transition of the clock. When the parallel/ serial control is in the logical “1” state, data is jammed into each stage of the register asynchronously with the clock. All inputs are protected against static discharge with diodes to VDD and VSS.
Product Features
■ Wide supply voltage range: 3.0V to 15V
■ High noise immunity: 0.45 VDD (typ.)
■ Low power TTL compatibility:
Fan out of 2 driving 74L or 1 driving 74LS
■ 5V–10V–15V parametric ratings
■ Symmetrical output characteristics
■ Maximum input leakage 1 µA at 15V over full tempera ture range
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4021BCM |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Shift Registers | |
| Manufacturer | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Shift Register |
| Output Type | Push-Pull |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function | Parallel or Serial to Serial |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | CD4021 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
CD4021BCM 8-Stage Static Shift Register SOP16 spot stock
250In stock:
Can ship immediately
