Hot-selling and scarce PRTR5V0U4D Integrated quad ultra-low capacitance ESD protection SOT23-6 spot stock

Product Descriptions

The PRTR5V0U4D is designed to protect Input/Output (I/O) ports that are sensitive concerning capacitive load, such as USB 2.0, Ethernet, DVI, etc. from destruction by ElectroStatic Discharges (ESD). It provides protection to downstream signal and supply components from ESD voltages as high as ±8 kV (contact discharge).

The PRTR5V0U4D incorporates four pairs of ultra-low capacitance rail-to-rail diodes plus an additional Zener diode. The rail-to-rail diodes are connected to the Zener diode which allows ESD protection to be independent of the availability of a supply voltage.

The PRTR5V0U4D is fabricated using monolithic silicon technology integrating four ultra-low capacitance rail-to-rail ESD protection diodes in a miniature 6-lead SOT457 package.

Product Features

■ Pb-free and RoHS compliant, dark green

■ ESD protection compliant to IEC 61000-4-2 level 4, ±8 kV contact discharge

■ Low voltage clamping due to integrated Zener diode

■ Four ultra-low input capacitance (1 pF typical) rail-to-rail ESD protection diodes

■ Small 6-lead SOT457 package

Product Applications

■ General-purpose downstream ESD protection of high frequency analog signals and high-speed serial data transmission for ports inside:

◆ Cellular and Personal Communication Service (PCS) mobile handsets

◆ USB 2.0 and IEEE 1394 ports in PC and notebook

◆ Digital Video Interface (DVI) and High Definition Multimedia Interface (HDMI) interfaces

◆ Cordless telephones

◆ Wireless data systems: Wide Area Network (WAN) and Local Area Network (LAN)

◆ Personal Digital Assistants (PDAs)

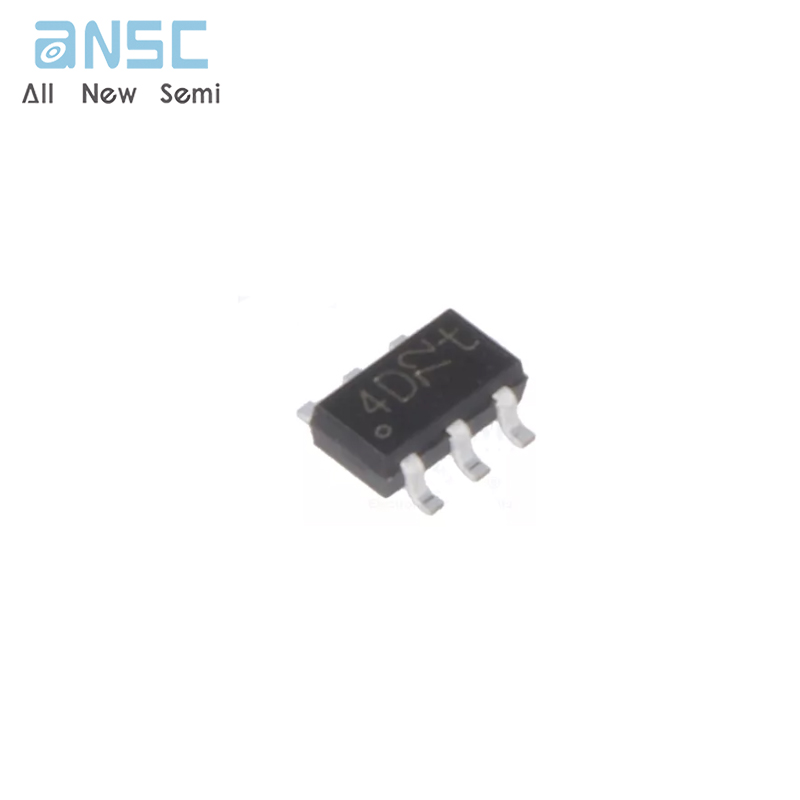

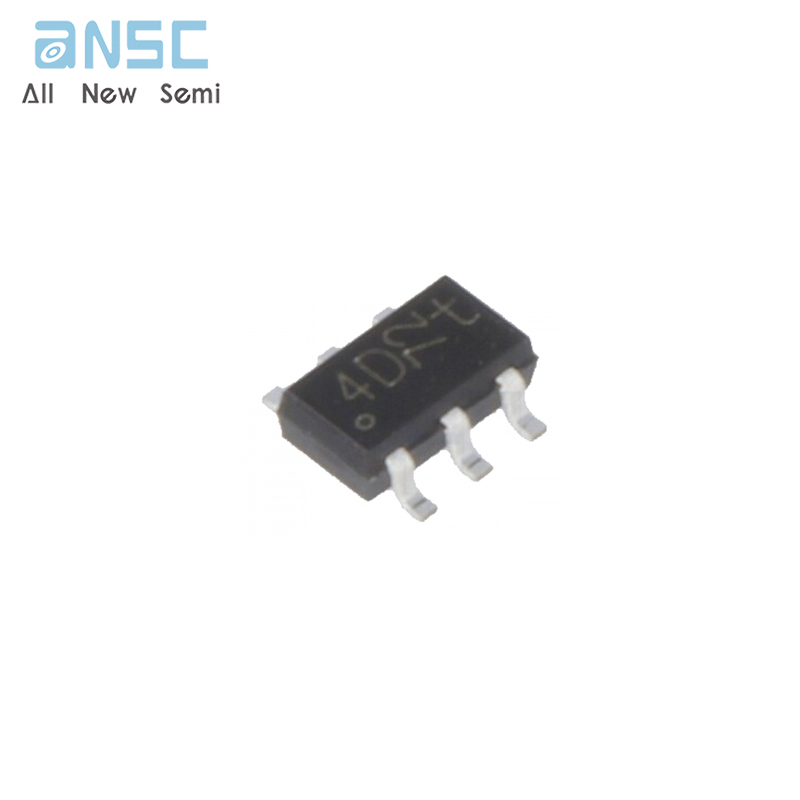

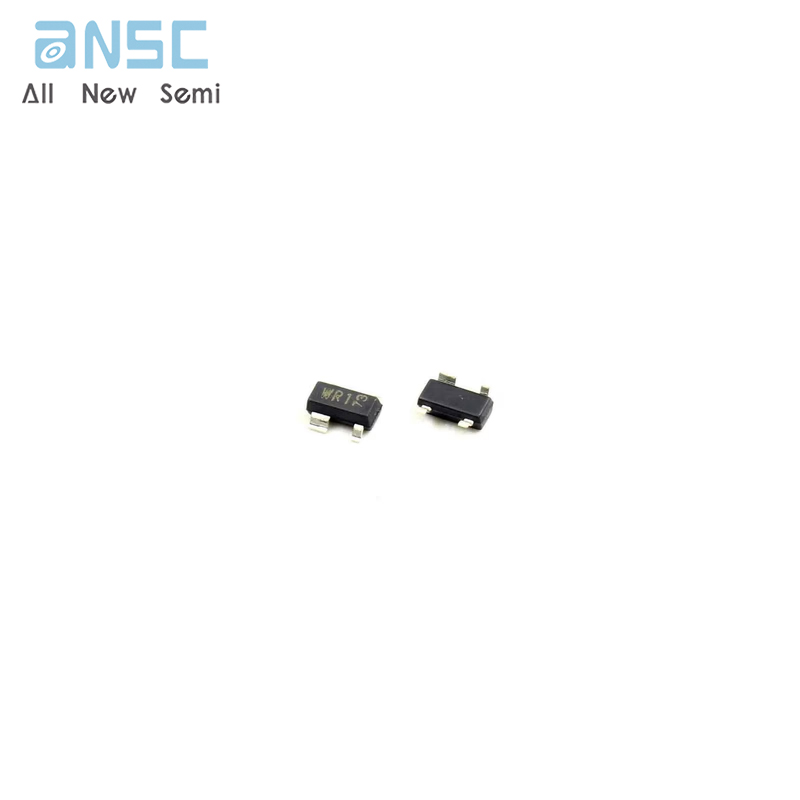

Product Photos

For more product information, please download the PDF
