Hot-selling and scarce TLV1504IPW LOW POWER, SERIAL ANALOG-TO-DIGITAL CONVERTERS WITH AUTO POWER DOWN TSSOP16 spot stock
Manufacturer Product Number
TLV1504IPW
Description
TLV1504IPW LOW POWER, SERIAL ANALOG-TO-DIGITAL CONVERTERS WITH AUTO POWER DOWN TSSOP16 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Maximum Throughput 200 KSPS
Built-In Reference, Conversion Clock and 8× FIFO
Differential/Integral Nonlinearity Error: ±0.5 LSB Max
Signal-to-Noise and Distortion Ratio:59 dB, fi = 12 kHz
Spurious Free Dynamic Range: 72 dB,fi= 12 kHz
SPI/DSP-Compatible Serial Interfaces With SCLK up to 20 MHz
Single Wide Range Supply 2.7 Vdc to 5.5 Vdc
Analog Input Range 0 V to Supply Voltage with 500 kHz BW
Hardware Controlled and Programmable Sampling Period
Low Operating Current (1 mA at 2.7 V,
1.2 mA at 5.5 V External Ref,
1.6 mA at 2.7 V,
2.1 mA at 5.5 V, Internal Ref)
Power Down: Software/Hardware
Power-Down Mode (1 µA Max, Ext Ref),
Auto Power-Down Mode (1 µA, Ext Ref)
Programmable Auto-Channel Sweep
Pin Compatible, 12-Bit Upgrades Available (TLV2544, TLV2548)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLV1504IPW |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | TLV1504 |

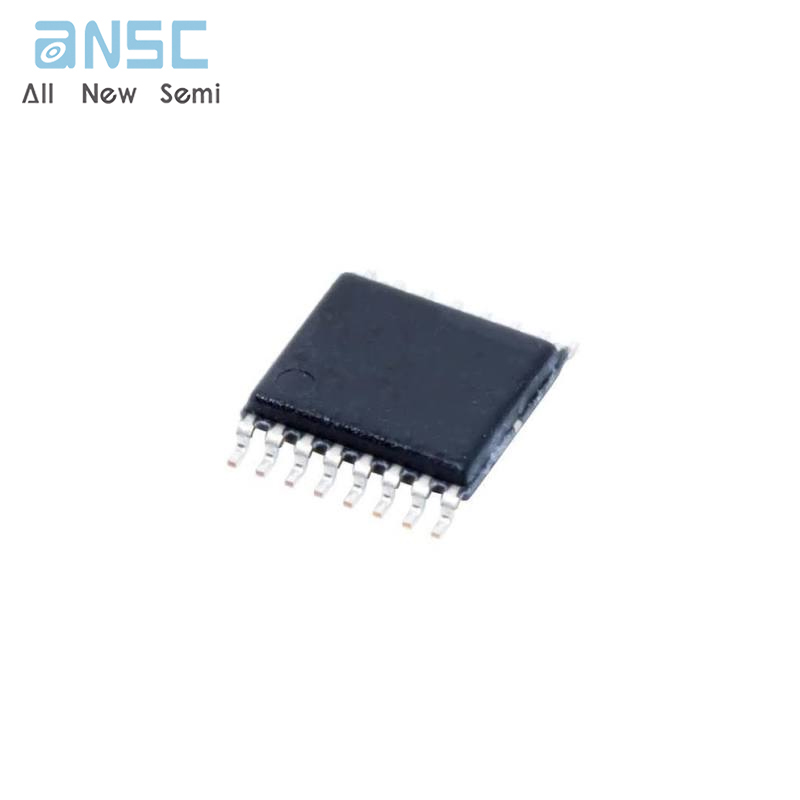

Product Photos
