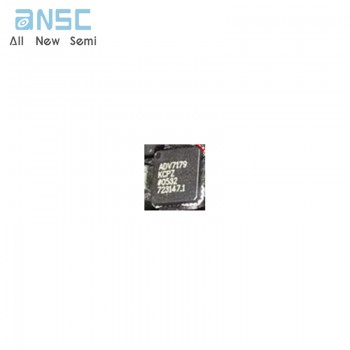

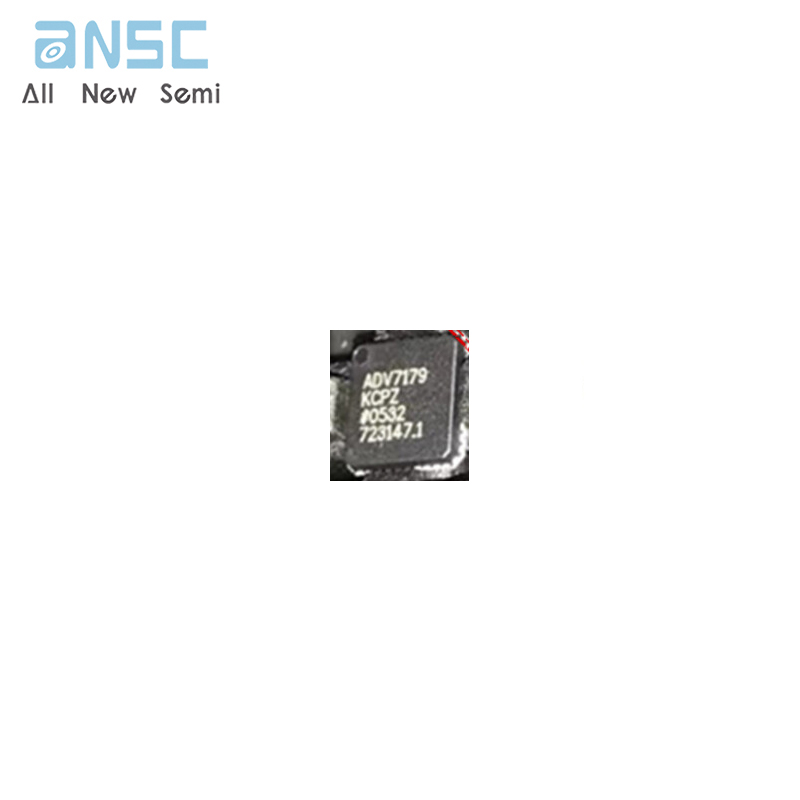

Hot-selling and scarce ADV7179KCPZ Chip Scale PAL/NTSC Video Encoder QFN40 spot stock

Manufacturer Product Number

ADV7179KCPZ

Description

ADV7179KCPZ Chip Scale PAL/NTSC Video Encoder QFN40 spot stock

Package Condition

Tray

Datasheet

ADV7179KCPZ

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

ITU-R1 BT601/BT656 YCrCb to PAL/NTSC video encoder

High quality 10-bit video DACs

SSAF™ (super sub-alias filter)

Advanced power management features

CGMS (copy generation management system)

WSS (wide screen signaling)

NTSC M, PAL N2, PAL B/D/G/H/I, PAL-M3 , PAL 60

Single 27 MHz clock required (×2 oversampling)

Macrovision 7.1 (ADV7174 only)

80 dB video SNR

32-bit direct digital synthesizer for color subcarrier

Multistandard video output support:

Composite (CVBS)

Component S-video (Y/C)

Video input data port supports:

CCIR-656 4:2:2 8-bit parallel input format

Programmable simultaneous composite and S-video or RGB

(SCART)/YPbPr video outputs

Programmable luma filters low-pass [PAL/NTSC] notch,

extended SSAF, CIF, and QCIF

Programmable chroma filters (low-pass [0.65 MHz, 1.0 MHz,

1.2 MHz, and 2.0 MHz], CIF, and QCIF)

Programmable VBI (vertical blanking interval)

Product Applications

Portable video applications

Mobile phones

Digital still cameras

Product Specification

Attribute	Attribute value
ANSM-Part#	ANSM-ADV7179KCPZ
Category	Integrated Circuits (ICs)
	Interface
	Encoders, Decoders, Converters
Manufacturer	-
Packaging	Tray
Part Status	Discontinued at DigiKey
Type	Video Encoder
Applications	Digital Cameras, Mobile Phones, Portable Video
Voltage - Supply, Analog	2.8V, 3.3V
Mounting Type	Surface Mount
Package / Case	40-VFQFN Exposed Pad, CSP
Supplier Device Package	40-LFCSP-VQ (6x6)
Base Product Number	ADV7179
