Hot-selling and scarce AD9943KCPZ 25 MHz CCD Signal Processors QFN32 spot stock
Manufacturer Product Number
AD9943KCPZ
Description
AD9943KCPZ 25 MHz CCD Signal Processors QFN32 spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD9943/AD9944 are complete analog signal processorsfor CCD applications .They feature a 25 MHz single-channelarchitecture designed to sample and condition the outputs ofinterlaced and progressive scan area CCD arrays .The signalchain for the AD9943/AD9944 consists of a correlated doublesampler (CDS),a digitally controlled variable gain amplifier(VGA),and a black level clamp.The AD9943 offers 10-bitADC resolution,while the AD9944 contains a true 12-bit ADC .
The internal registers are programmed through a 3-wireserial digital interface .Programmable features include gainadjustment,black level adjustment,input clock polarity,andpower-down modes.The AD9943/AD9944 operate from asingle 3 V power supply,typically dissipate 79 mW,and arepackaged in space-saving 32-lead LFCSP packages .
Product Features
25 MSPS correlated double sampler (CDS)
6 dB to 40 dB 10-bit variable gain amplifier (VGA)
Low noise optical black clamp circuit
Preblanking function
10-bit (AD9943), 12-bit (AD9944) 25 MSPS A/D converter
No missing codes guaranteed
3-wire serial digital interface
3 V single-supply operation
Space-saving 32-lead 5 mm × 5 mm LFCSP package
Product Applications
Digital still cameras
Digital video camcorders
PC cameras
Portable CCD imaging devices
CCTV cameras
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD9943KCPZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Sensor and Detector Interfaces | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Discontinued at DigiKey |
| DigiKey Programmable | Not Verified |
| Type | CCD Signal Processor, 10-Bit |
| Input Type | Logic |
| Output Type | Logic |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| Base Product Number | AD9943 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:

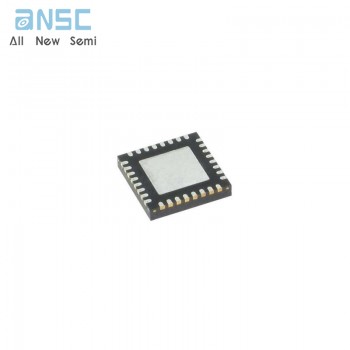

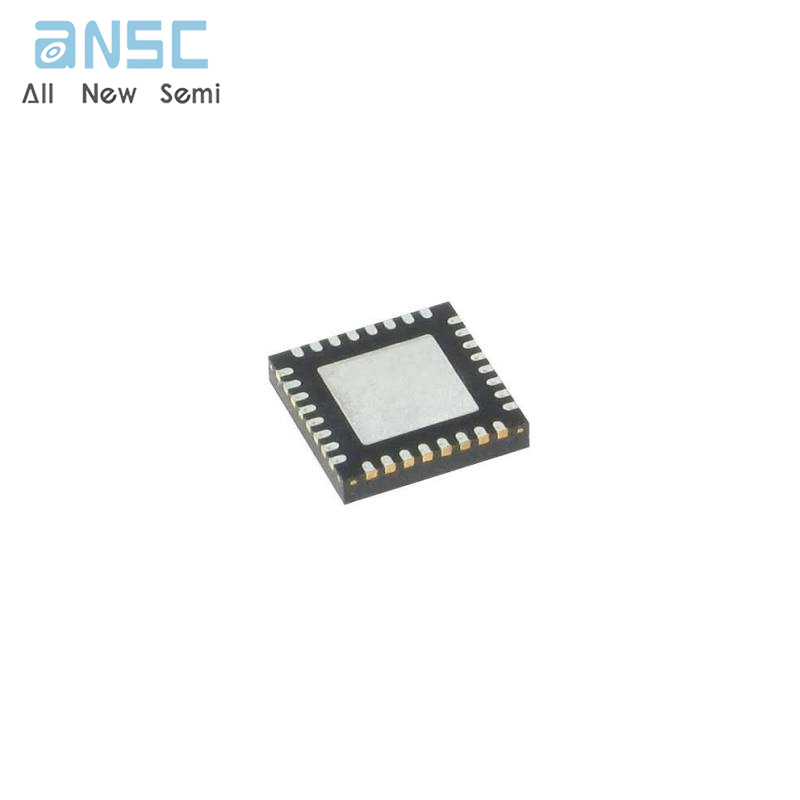

AD9943KCPZ 25 MHz CCD Signal Processors QFN32 spot stock
