Hot-selling and scarce MCP2120-I/SL Infrared Encoder/Decoder IC SOP14 spot stock
Manufacturer Product Number
MCP2120-I/SL
Description
MCP2120-I/SL Infrared Encoder/Decoder IC SOP14 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Supports with IrDA®Physical Layer Specification (version 1.3)
• UART to IR Encoder/Decoder
- Interfaces with IrDA Compliant Transceivers
- Used with any UART,including standard 16550 UART and microcontroller UART
• Transmit/Receive formats supported:
- 1.63 µs
• Hardware or Software Baud rate selection
- Up to IrDA standard 115.2 kbaud operation
- Up to 312.5 kbaud operation (at 20 MHz)
- Low power mode
• Pb-free packaging
• Low-power,high-speed CMOS technology
• Fully static design
• Low voltage operation
• Commercial and Industrial temperature ranges
• Low power consumption
- <1 mA @3.3V,8 MHz (typical)
- 3 mA typical @5.0V when disabled
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MCP2120-I/SL |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Encoders, Decoders, Converters | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Infrared Encoder/Decoder |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | MCP2120 |

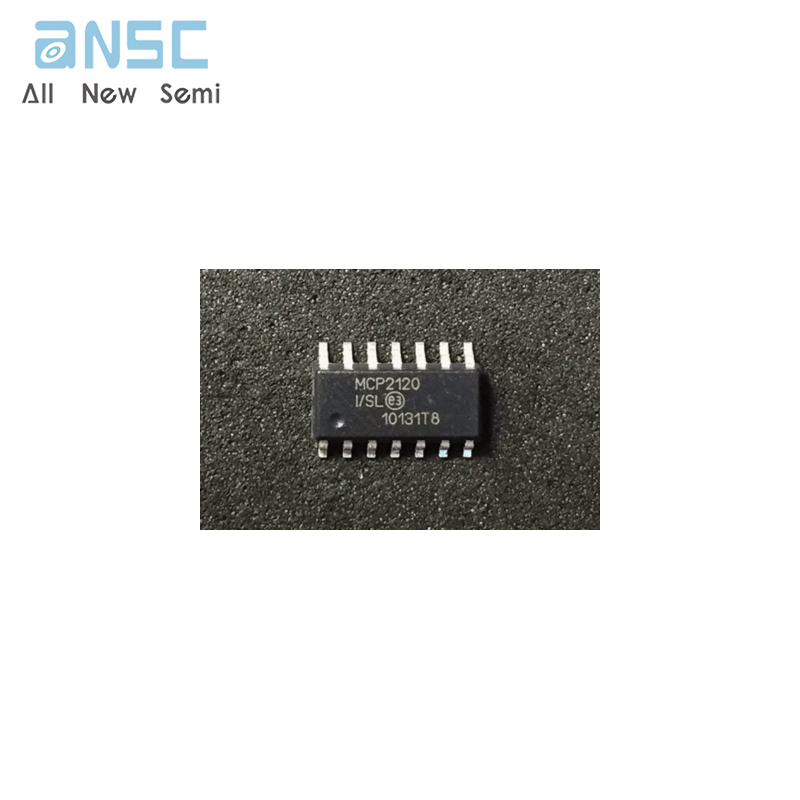

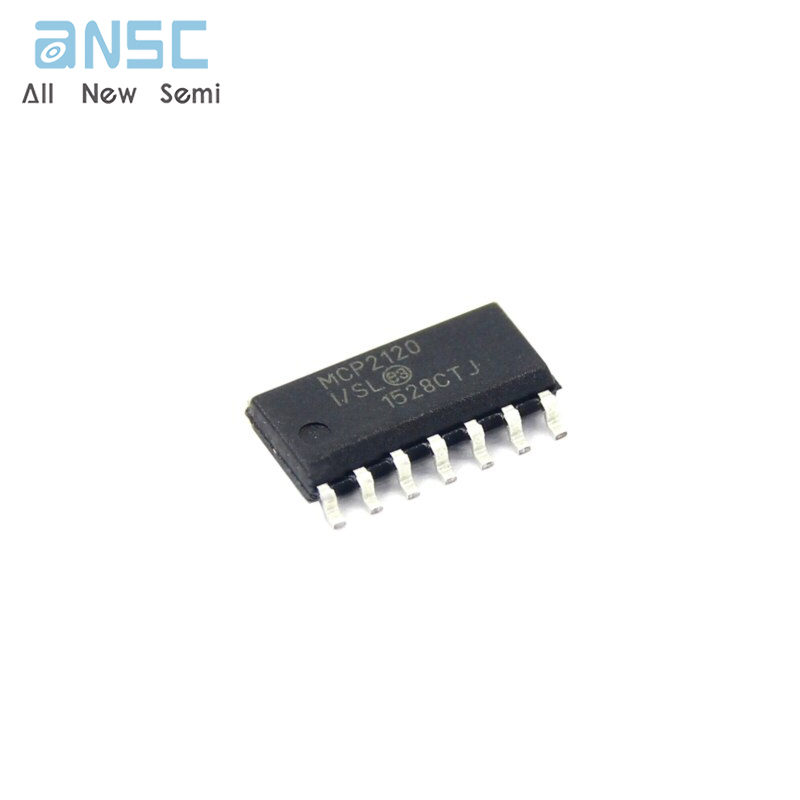

Product Photos
For more product information, please download the PDF
