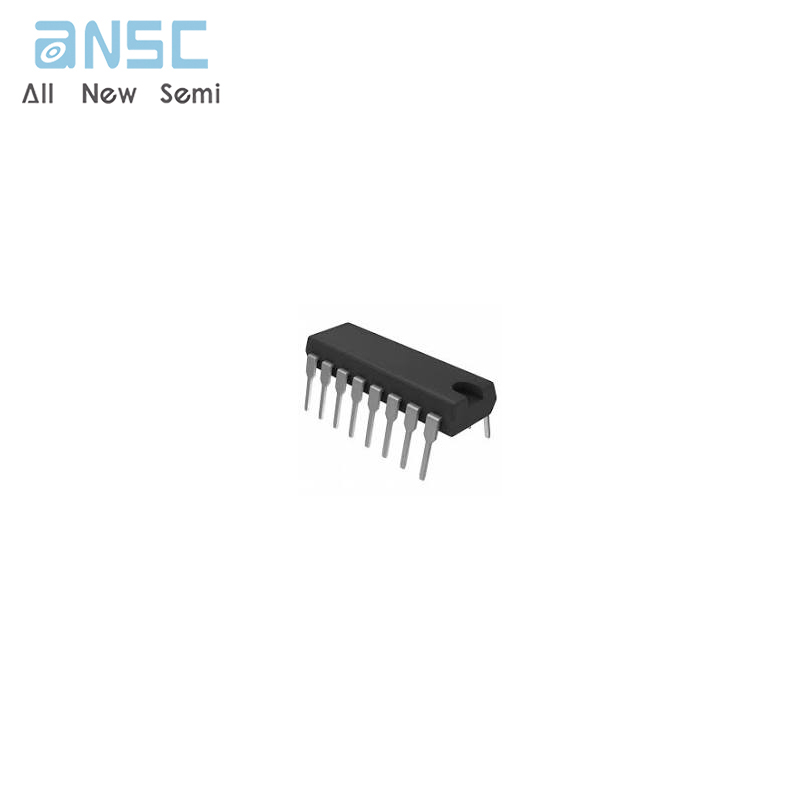

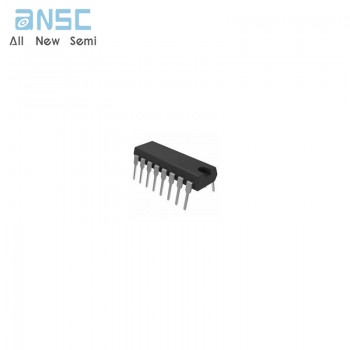

HA1-2546/883/5962-9325101MEA Wideband Two Quadrant Analog Multiplier (Voltage Output) CDIP16 spot stock

Product Descriptions

The HA-2546/883 is a monolithic, high speed, two quadrant, analog multiplier constructed in the Intersil Dielectrically Isolated High Frequency Process. The HA-2546/883 has a voltage output with a 30MHz signal bandwidth, 300V/µs slew rate and a 17MHz control input bandwidth. High bandwidth and slew rate make this part an ideal component for use in video systems. The suitability for precision video applications is demonstrated further by the 0.1dB gain flatness at5MHz, 1.6% multiplication error, -52dB feedthrough and differential inputs with 1.2µA bias currents. The HA-2546/883 also has low differential gain (0 .1% typ.) and phase (0 .1^otyp.) errors.

The HA-2546/883 is well suited for AGC circuits as well as mixer  applications  for  sonar,  radar,  and  medical  imaging equipment.The voltage output of the HA-2546/883 simplifies many designs by eliminating the current-to-voltage conversion stage required for current output multipliers.

Product Features

•  This Circuit is Processed in Accordance to MIL-STD- 883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.

•  High Speed Voltage Output. . . . . . . . . . . 300V/µs (Min)

•  Low Multiplication Error . . . . . . . . . . . . . . . .3.0% (Max) 1.6% (Typ)

•  Input Bias Currents . . . . . . . . . . . . . . . . . . . .  5µA (Max) 1.2µA (Typ)

•  Signal Input Feedthrough . . . . . . . . . . . . . .-52dB  (Typ)

•  Wide Signal Bandwidth . . . . . . . . . . . . . . . 30MHz  (Typ)

•  Wide Control Bandwidth . . . . . . . . . . . . . . 17MHz  (Typ)

•  Gain Flatness to 5MHz. . . . . . . . . . . . . . . .0.10dB  (Typ

Product Applications

•  Military Avionics

•  Missile Guidance Systems

•  Medical Imaging Displays

•  Video Mixers

•  Sonar AGC Processors

•  Radar Signal Conditioning

•  Voltage Controlled Amplifier

•  Vector Generator

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
