Spot sales of LTC4100EG-TRPBF Smart Battery Charger Controller SSOP24

​Product Descriptions

The LTC® 4100 Smart Battery Charger is a single chip charging solution that dramatically simplifies construction of an SBS compliant system. The LTC4100 implements a Level 2 charger function whereby the charger can be programmed by the battery or by the host. A SafetySignal on the battery being charged is monitored for temperature, connectivity and battery type information. The SMBus interface remains alive when the AC power adapter is removed and responds to all SMBus activity directed to it, including SafetySignal status (via the ChargerStatus command). The charger also provides an interrupt to the host whenever a status change is detected (e.g., battery removal, AC adapter connection).

Charging current and voltage are restricted to chemistry specific limits for improved system safety and reliability. Limits are programmable by two external resistors. Additionally, the maximum average current from the AC adapter is programmable to avoid overloading the adapter when simultaneously supplying load current and charging current. When supplying system load current, charging current is automatically reduced to prevent adapter over-load.

Product Features

■ Single Chip Smart Battery Charger Controller

■ 100 PERCENT Compliant (Rev. 1.1) SMBus Support allows for Operation with or without Host

■ SMBus Accelerator Improves SMBus Timing*

■ Wide Output Voltage Range: 6.4V to 26V

■ Hardware Interrupt and SMBAlert Response Eliminate Interrupt Polling

■ High Efficiency Synchronous Buck Charger

■ 0.5V Dropout Voltage; Maximum Duty Cycle > 98 PERCENT

■ AC Adapter Current Limit Maximizes Charge Rate

■ ±0.8 PERCENT Voltage Accuracy; ±5 PERCENT Current Accuracy

■ Up to 4A Charging Current Capability

■ 10-Bit DAC for Charge Current Programming

■ 11-Bit DAC for Charger Voltage Programming

■ User-Selectable Overvoltage and Overcurrent Limits

■ High Noise Immunity SafetySignal Sensor

■ Small 24-Pin Narrow (0.209") SSOP Package

Product Applications

■ Portable Instruments and Computers

■ Data Storage Systems and Battery Backup Servers

Product Specification

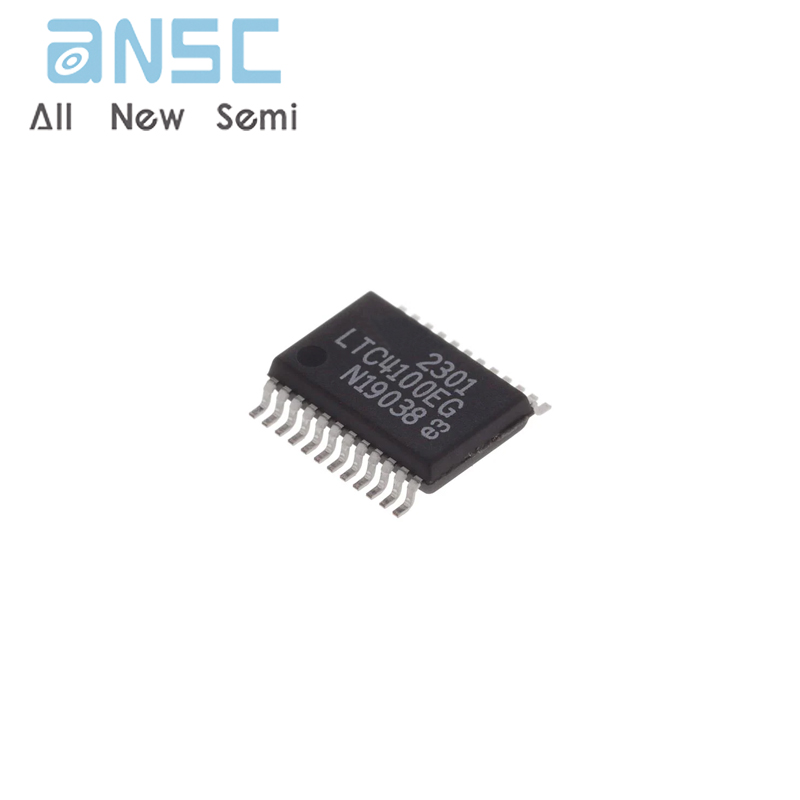

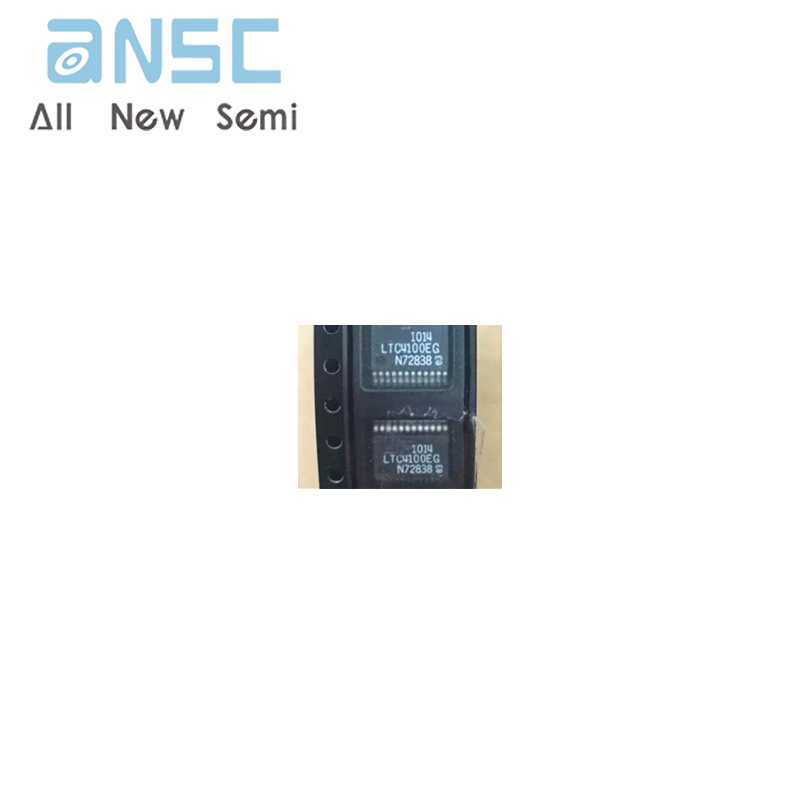

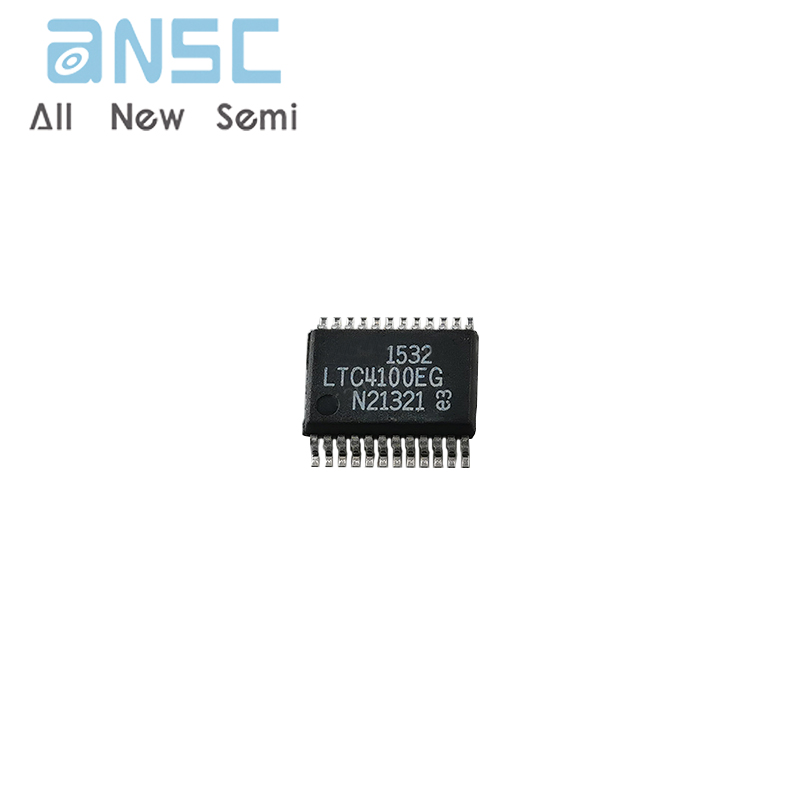

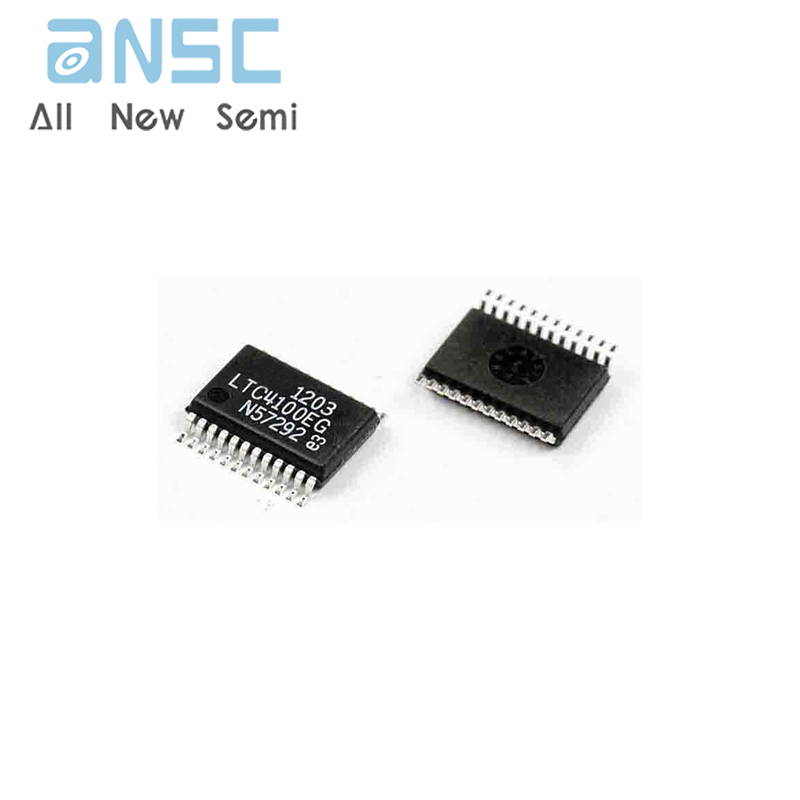

Product Photos

For more product information, please download the PDF
