Hot-selling and scarce AD9148BBPZ Quad 16 Bit Digital to Analog Converter 196-BGA-ED spot stock

Product Descriptions

The AD9148 is a quad, 16-bit, high dynamic range, digital-toanalog converter (DAC)that provides a sample rate of 1000 MSPS. This device includes features optimized for direct conversion transmit applications, including gain, phase, and offset compensation.The DAC outputs are optimized to interface seamlessly with analog quadrature modulators such as the ADL5371/ADL5372/ ADL5373/ADL5374/ADL5375.A serial peripheral interface (SPI) is provided for programming of the internal device parameters. Full-scale output current can be programmed over a range of 8.7 mAto 31.7 mA. The device operates from 1.8 V and 3.3 V supplies for a total power consumption of 3 W at the maximum sample rate. The AD9148 is enclosed in a 196-ball chip scale package ball grid array with the option of an attached heat spreader.

Product Features

Single-carrier W-CDMA ACLR = 80 dBc at 150 MHz IF

Channel-to-channel isolation > 90 dB

Analog output

Adjustable 8.7 mAto 31.7 mA

RL = 25 Ω to 50 Ω

Novel 2×, 4×, and 8× interpolator eases data interface

On-chip fine complex NCO allows carrier placement

anywhere in DAC bandwidth

High performance, low noise PLL clock multiplier

Multiple chip synchronization interface

Programmable digital inverse sinc filter

Auxiliary DACs allow for offset control

Gain DACs allow for I and Q gain matching

Programmable I and Q phase compensation

Digital gain control

Flexible LVDS digital I/F supports 32- or 16-bit bus width

196-ball CSP_BGA, 12 mm × 12 mm

Product Applications

Wireless infrastructure

LTE,TD-SCDMA,WiMAX,W-CDMA, CDMA2000, GSM

MIMO/transmit diversity

Digital high or low IF synthesis

Product Specifications

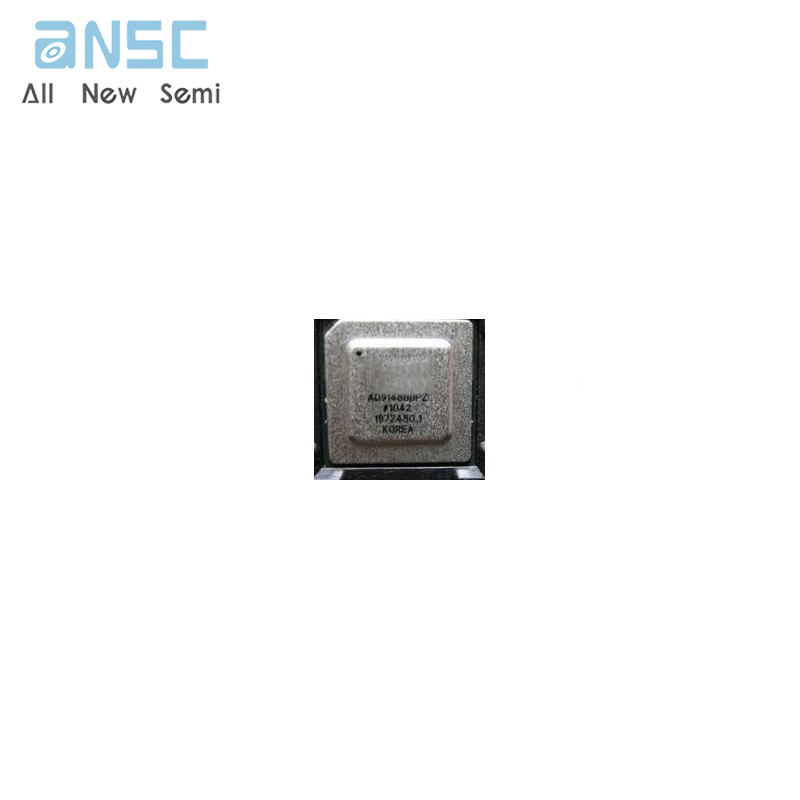

Product Photos

​

For more product information, please download the PDF
