Spot sales of HD74AC245FP Octal Bi-directional Transceiver with 3-State Input/Output SOP20

Product Descriptions

The HD74AC245/HD74ACT245 contains eight non-inverting bidirectional buffers with 3-state outputs and is intended for bus-oriented applications. Current sinking capability is 24 mA at both the A and B ports. The Transmit/Receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active-High) enables data from A ports to B ports; Receive (active-Low) enables data from B ports to A ports. The Output Enable input, when High, disables, both A and B ports by placing them in a High Z condition.

Product Features

• Noninverting Buffers

• Bi-directional Data Path

• A and B Outputs Source/Sink 24 mA

• HD74ACT245 has TTL-Compatible Inputs

• Ordering Information: Ex. HD74AC245

​

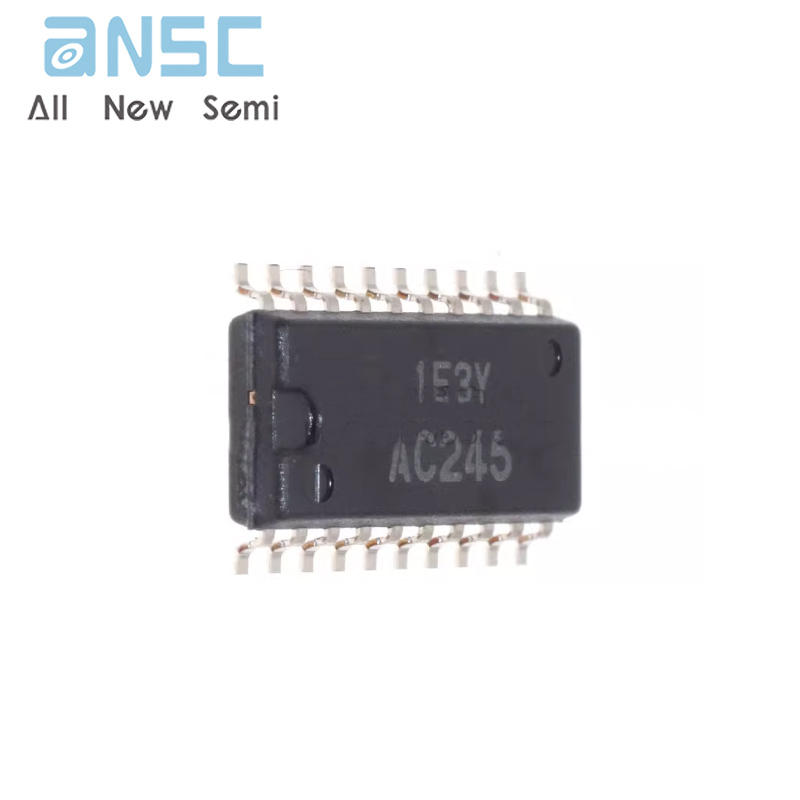

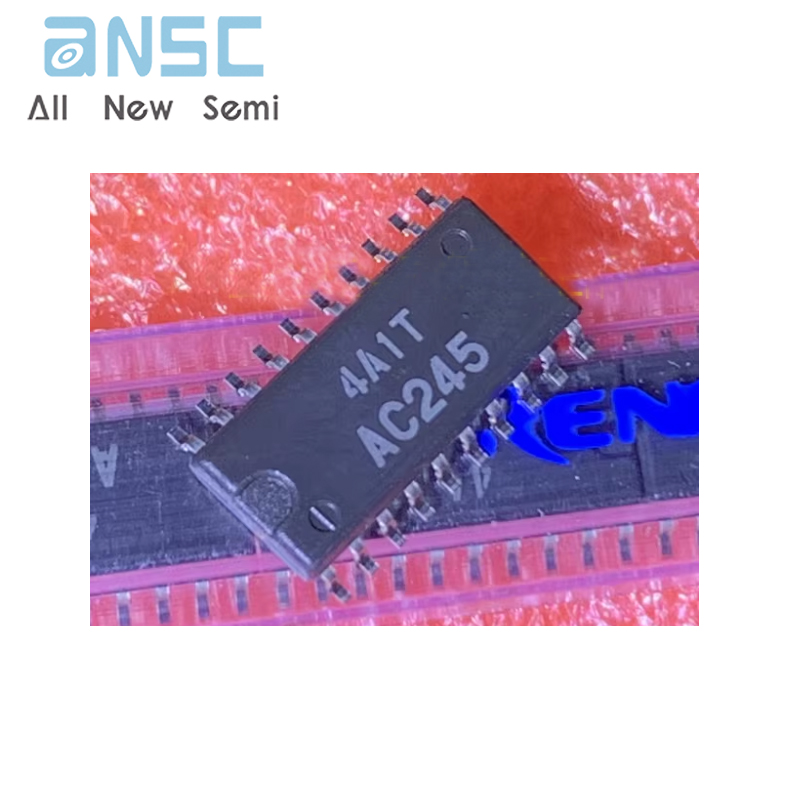

Product Photos

For more product information, please download the PDF
