Hot-selling and scarce HFBR-1414T High performance fiber optic communication links ZIP spot stock

Product Descriptions

The HFBR-0400 Series of components is designed to provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 2.7 kilometers. With the HFBR-24x6, the 125 MHz analog receiver, data rates of up to 160 megabaud are attainable.

Transmitters and receivers are directly compatible with popular “industry-standard” connectors: ST®, SMA, SC and FC. They are completely specified with multiple fiber sizes; including 50/125 µm, 62.5/125 µm, 100/ 140 µm, and 200 µm.

The HFBR-14x4 high power transmitter and HFBR-24x6 125 MHz receiver pair up to provide a duplex solution optimized for 100 Base-SX. 100Base-SX is a Fast Ethernet Standard (100 Mbps) at 850 nm on multimode fiber.

Complete evaluation kits are available for ST product offerings; including transmitter, receiver, connectored cable, and technical literature. In addition, ST connectored cables are available for evaluation.

Product Features

• Meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards

• Meets TIA/EIA-785 100Base-SX standard

• Low Cost Transmitters and Receivers

• Choice of ST®, SMA, SC or FC Ports

• 820 nm Wavelength Technology

• Signal Rates up to 160 MBd

• Link Distances up to 2.7 km

• Specified with 50/125 µm, 62.5/ 125 µm, 100/140 µm, and 200 µm HCS® Fiber

• Repeatable ST Connections within 0.2 dB Typical

• Unique Optical Port Design for Efficient Coupling

• Auto-Insertable and Wave Solderable

• No Board Mounting Hardware Required

• Wide Operating Temperature Range -40 °C to +85 °C

• AlGaAs Emitters 100% Burn-In Ensures High Reliability

• Conductive Port Option

Product Applications

• 100Base-SX Fast Ethernet on 850 nm

• Media/fiber conversion, switches, routers, hubs and NICs on 100Base-SX

• Local Area Networks

• Computer to Peripheral Links

• Computer Monitor Links

• Digital Cross Connect Links

• Central Office Switch/PBX Links

• Video Links

• Modems and Multiplexers

• Suitable for Tempest Systems

• Industrial Control Links

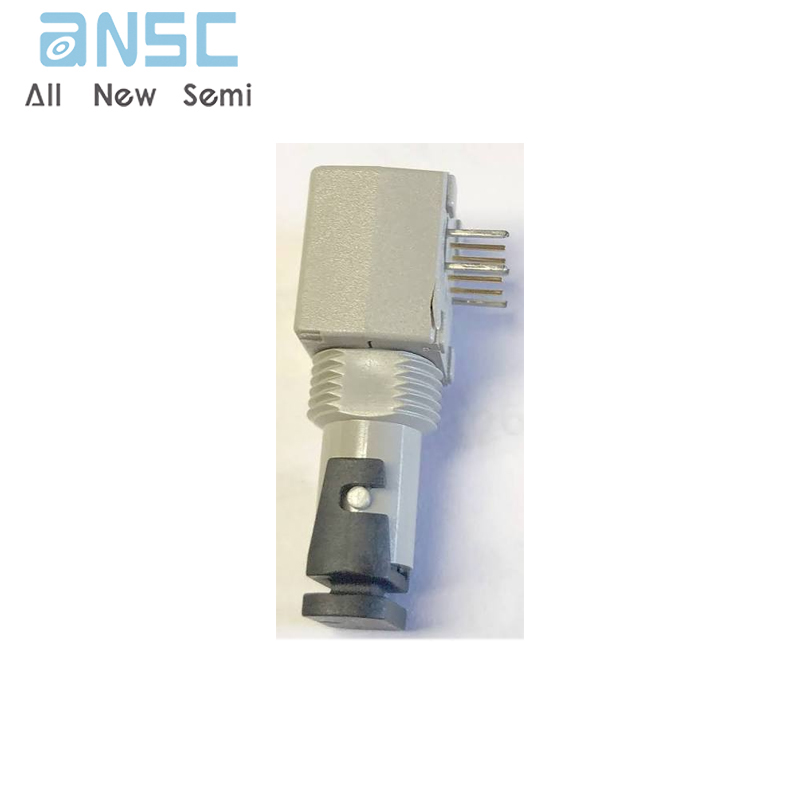

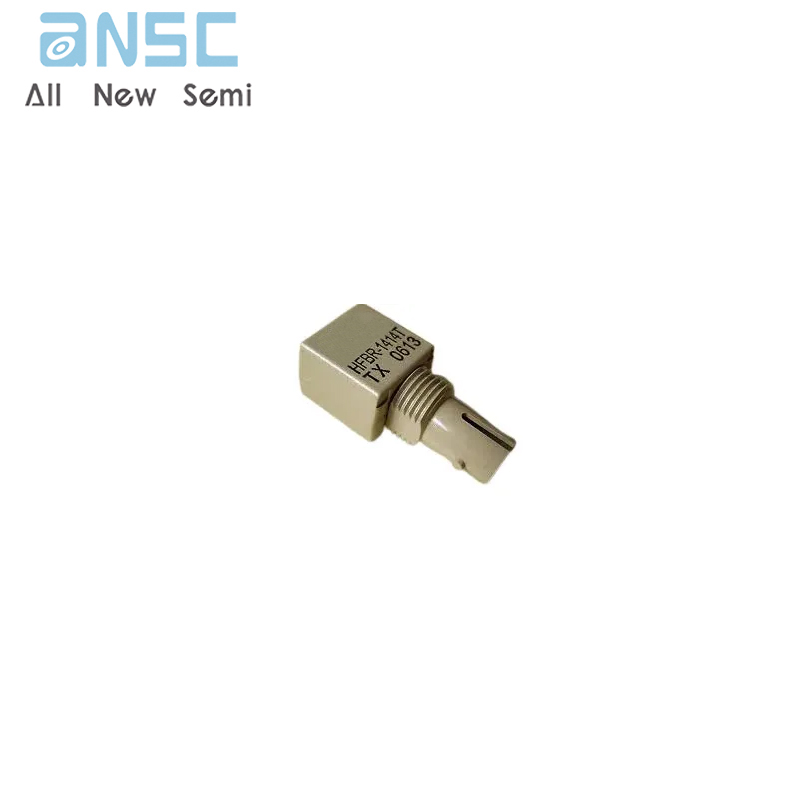

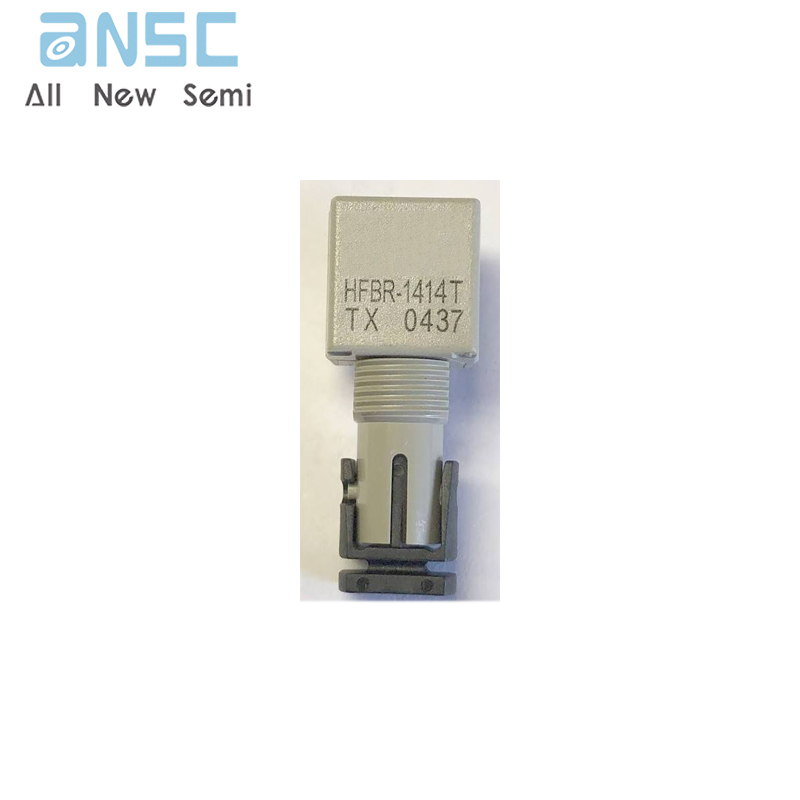

Product Photos

For more product information, please download the PDF
