Spot sales of MC14511BCP BCD-To-Seven Segment Latch/Decoder/Driver DIP-16

Product Descriptions

The MC14511B BCD–to–seven segment latch/decoder/driver is constructed with complementary MOS (CMOS) enhancement mode devices and NPN bipolar output drivers in a single monolithic structure. The circuit provides the functions of a 4–bit storage latch, an 8421 BCD–to–seven segment decoder, and an output drive capability. Lamp test (LT), blanking (BI), and latch enable (LE) inputs are used to test the display, to turn–off or pulse modulate the brightness of the display, and to store a BCD code, respectively. It can be used with seven–segment light–emitting diodes (LED), incandescent, fluorescent, gas discharge, or liquid crystal readouts either directly or indirectly.

Applications include instrument (e.g., counter, DVM, etc.) display driver, computer/calculator display driver, cockpit display driver, and various clock, watch, and timer uses.

Product Features

• Low Logic Circuit Power Dissipation

• High–Current Sourcing Outputs (Up to 25 mA)

• Latch Storage of Code

• Blanking Input

• Lamp Test Provision

• Readout Blanking on all Illegal Input Combinations

• Lamp Intensity Modulation Capability

• Time Share (Multiplexing) Facility

• Supply Voltage Range = 3.0 V to 18 V

• Capable of Driving Two Low–power TTL Loads, One Low–power Schottky TTL Load or Two HTL Loads Over the Rated Temperature Range

• Chip Complexity: 216 FETs or 54 Equivalent Gates

• Triple Diode Protection on all Inputs

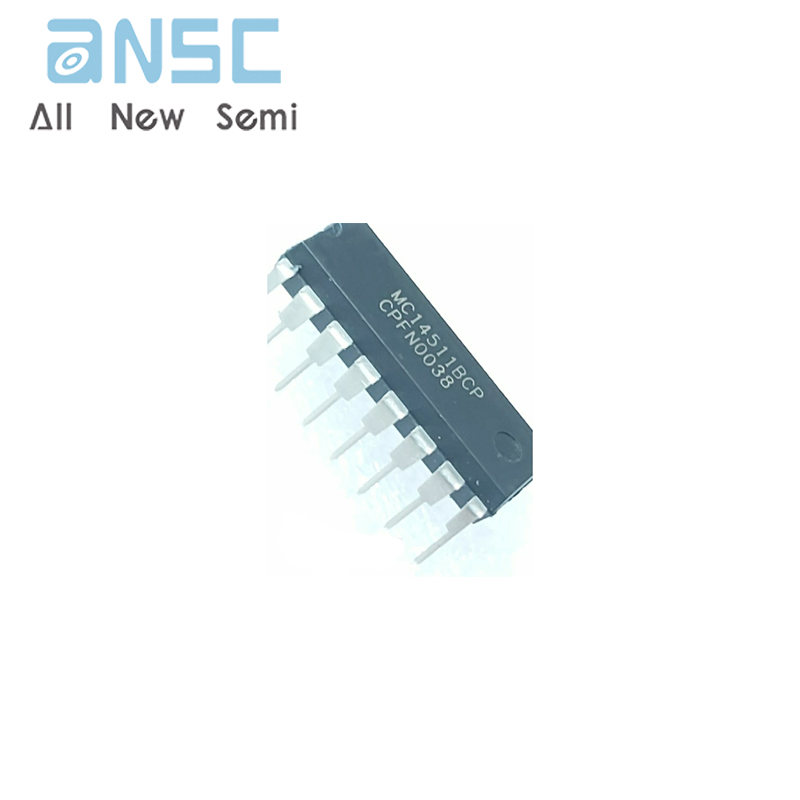

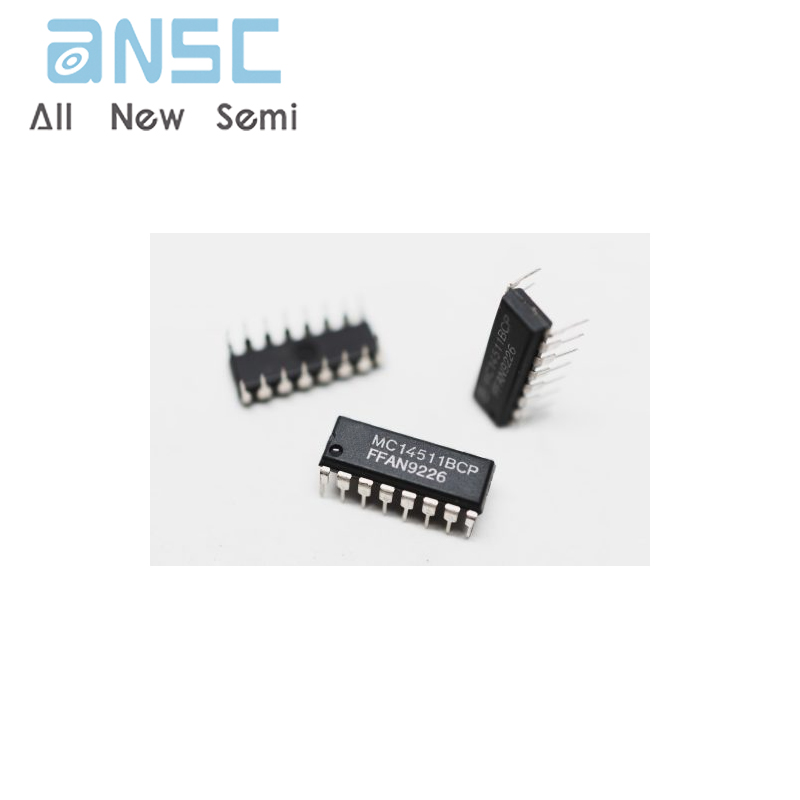

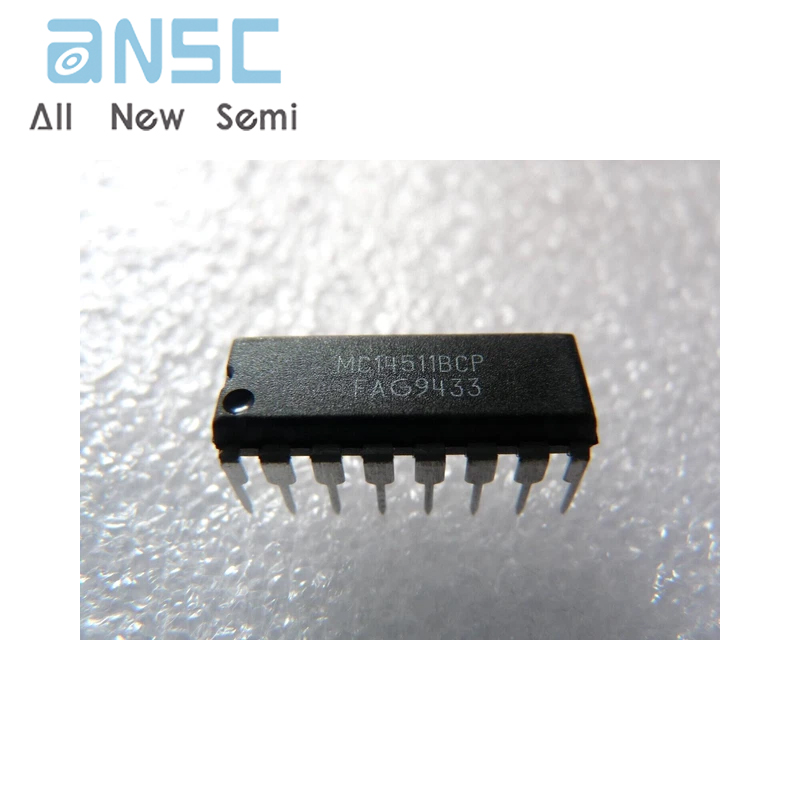

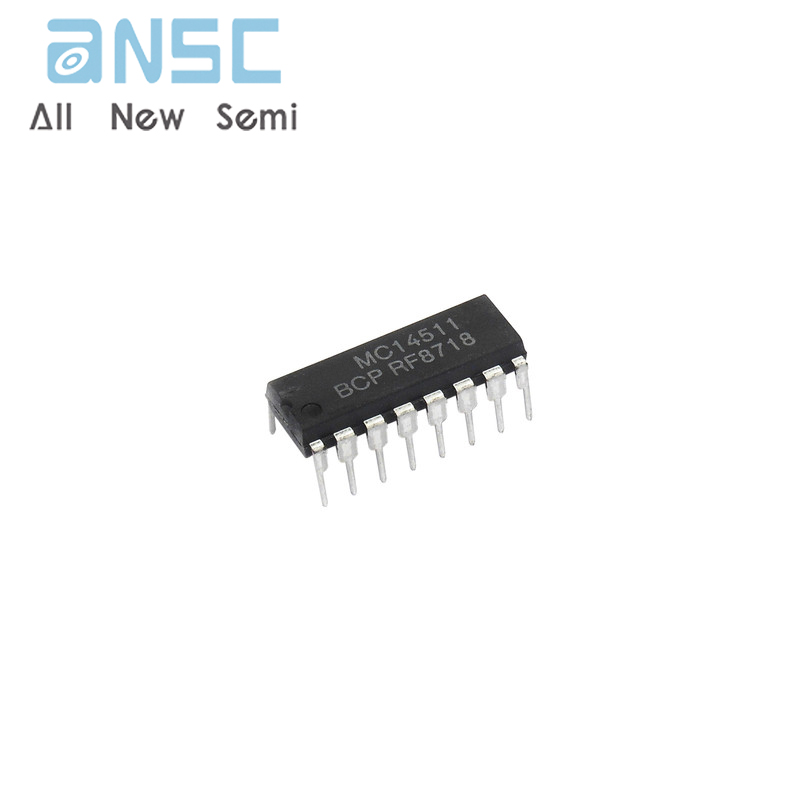

Product Photos

For more product information, please download the PDF
