Hot-selling and scarce LXT908PE Universal 3.3V 10BASE-T and AUI Transceiver PLCC spot stock

Product Descriptions

The LXT908 Universal 10BASE-T and AUI Transceiver is designed for IEEE 802.3 physical layer applications. It provides all the active circuitry to interface most standard 802.3 controllers to either the 10BASE-T media or Attachment Unit Interface (AUI). In addition to standard 10 Mbps Ethernet,the LXT908 also supports full-duplex operation at 20 Mbps.

LXT908 functions include Manchester encoding/decoding,receiver squelch and transmit pulse shaping,jabber,link testing and reversed polarity detection/correction.The LXT908 can be used to drive either the AUI drop cable or the 10BASE-T twisted-pair cable with only a simple isolation transformer. Integrated filters simplify the design work required for FCC-compliant EMI performance.

The LXT908 is fabricated with an advanced CMOS process and requires only a single 3.3V power supply.

Product Features

Functional Features

■   Improved Filters - Simplifies FCC Compliance

■   Integrated Manchester Encoder/Decoder

■    10BASE-T compliant Transceiver

■   AUI Transceiver

■   Supports Standard and Full-Duplex Ethernet

Diagnostic Features

■   Four LED Drivers

■   AUI/RJ-45 Loopback

Convenience Features

■   Automatic/Manual AUI/RJ-45 Selection

■   Automatic Polarity Correction

■   SQE Disable/Enable function

■   Power Down Mode with tri-stated outputs

■   Four loopback modes

■   Single 3.3V operation

■   Available in 64-pin LQFP and 44-pin PLCC package

■   Commercial (0 to +70°C) and Extended (-40 to +85°C) temperature range

Product Applications

■   Access devices (DSL, Cable Modems, and Set-top Boxes)

■   Routers/Bridges/Switches/Hubs

■   Telecom Backplane

■   USB to Ethernet Converters

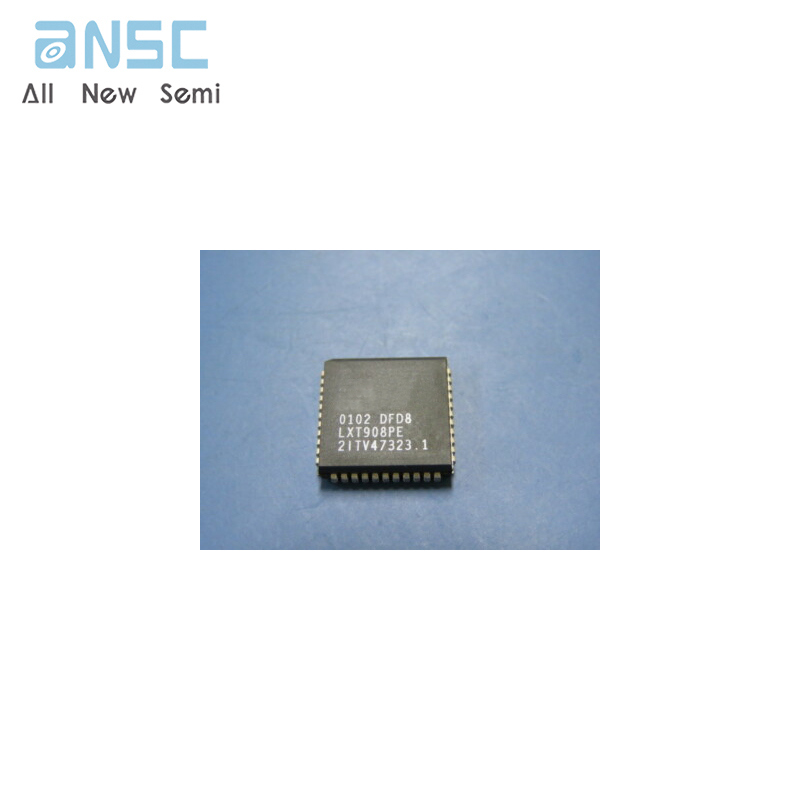

Product Photos

For more product information, please download the PDF
