Hot-selling and scarce ADV202BBCZ-150 JPEG2000 Video Codec BGA

Product Descriptions

The ADV202 is a single-chip JPEG2000 codec targeted for video and high bandwidth image compression applications that can benefit from the enhanced quality and feature set provided by the JPEG2000 (J2K)—ISO/IEC15444-1 image compression standard. The part implements the computationally intensive operations of the JPEG2000 image compression standard as well as providing fully compliant code-stream generation for most applications.

The ADV202’s dedicated video port provides glueless connection to common digital video standards such as ITU.R-BT656, SMPTE125M, SMPTE293M (525p), ITU.R-BT1358 (625p), SMPTE274M (1080i), or SMPTE296M (720p). A variety of other high speed, synchronous pixel and video formats can also be supported using the programmable framing and validation signals.

Product Features

Complete single-chip JPEG2000 compression and

decompression solution for video and still images

Patented SURF® (spatial ultra-efficient recursive filtering)

technology enables low power and low cost waveletbased compression

Supports both 9/7 and 5/3 wavelet transforms with up to

6 levels of transform

Programmable tile/image size with widths up to 2048 pixels in

3-component 4:2:2 interleaved mode, and up to 4096 pixels

in single-component mode

Maximum tile/image width: 4096 pixels

Video interface directly supporting ITU.R-BT656,

SMPTE125M PAL/ NTSC, SMPTE274M, SMPTE293M (525p),

ITU.R-BT1358 (625p) or any video format with a maximum

input rate of 65 MSPS for irreversible mode or 40 MSPS for

reversible mode

Two or more ADV202s can be combined to support fullframe SMPTE274M HDTV (1080i) or SMPTE296M (720p)

Flexible asynchronous SRAM-style host interface allows

glueless connection to most 16-/32-bit microcontrollers and ASICs

Product Applications

Networked video and image distribution systems

Wireless video and image distribution

Image archival/retrieval

Digital CCTV and surveillance systems

Digital cinema systems

Professional video editing and recording

Digital still cameras

Digital camcorders

Product Specification

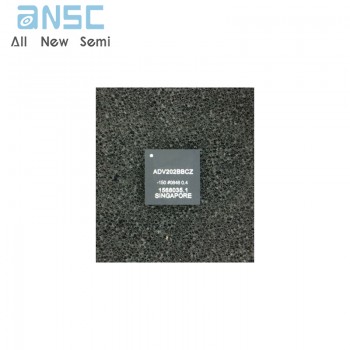

Product Photos

For more product information, please download the PDF
